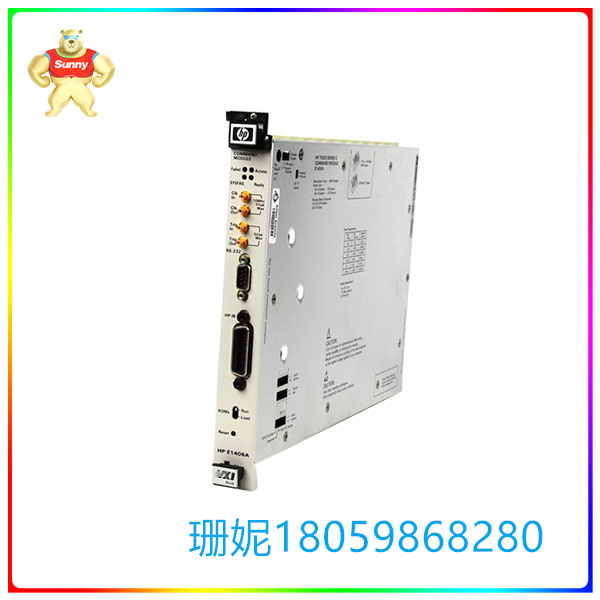

E1406A VXI GPIB 命令模块

【产品详情】

概述

特征：

基于消息的指挥官

MXIbus 协议支持

GPIB、RS-232、插槽 0 和资源管理器

板载内存和闪存

是德科技/安捷伦 E1406A 命令模块通过基于 VXI 消息的命令提供插槽 0 和资源管理。它可以通过其VMEbus系统控制器和GPIB（IEEE-488）到VXIbus接口与任何制造商基于消息的VXI模块无缝通信。可下载的驱动程序可以通过闪存，允许用户使用高级SCPI编程语言对设备进行编程。

E1406A 通过在命令模块中包括用于 VXIbus 扩展的 MXIbus 资源管理器，能够在多个大型机系统中保持高吞吐量性能。VXI 背板 10 MHz 时钟与外部 TTL 信号的同步通过 E1406A 灵活的触发和时钟接口进行处理。

1 插槽、C 型、基于消息的控制器

GPIB、RS-232、插槽 0 和资源管理器

高达 2 MB RAM

MXIbus 协议支持提供高吞吐量

Keysight VIC、VXI 安装顾问 - 快速、简单的设置

基于消息的仪器可支持简单编程

Keysight E1406A 命令模块是 C 型、1 插槽、基于消息的 VXI 控制器，可提供插槽 0 和资源管理器功能。 它可作为 VMEbus 系统控制器和 GPIB（IEEE-488）至 VXIbus 接口器件使用，轻松地与其它制造商生产的基于消息的 VXI 模块进行通信。 E1406A 命令模块为可下载的驱动程序提供闪存，可让您借助高级 SCPI 编程语言对使用寄存器的是德器件进行编程。 它还为使用寄存器的仪器转换 SCPI 命令，从而使 VXI 器件编程与基于消息的仪器一样简单。

该命令模块还包括用于 VXIbus 扩展的 MXIbus 资源管理器， 可让您在多个主机系统中保持高吞吐量性能。 借助模块的灵活触发和时钟连接，您可使 VXI 背板 10 MHz 时钟与外部 TTL 信号同步。

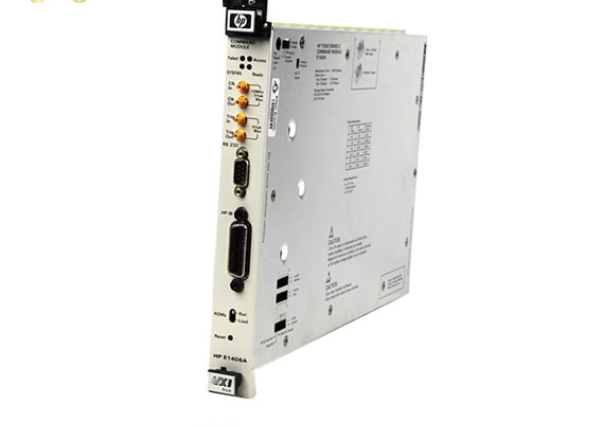

E1406A VXI GPIB 命令模块

【英文介绍】

summarize

Features:

Commander based on message

MXIbus protocol support

GPIB, RS-232, Slot 0, and Resource Manager

Onboard memory and flash memory

The Keysight/Agilent E1406A command module provides slot 0 and resource management via VXI message-based commands. It can communicate seamlessly with any manufacturer's message-based VXI modules through its VMEbus system controller and GPIB (IEEE-488) to VXIbus interface. Downloadable drivers are available via flash memory, allowing users to program the device using the advanced SCPI programming language.

The E1406A maintains high throughput performance across multiple mainframe systems by including MXIbus Explorer for VXIbus extension in the command module. Synchronization of the VXI backplane 10 MHz clock with the external TTL signal is handled through the E1406A flexible trigger and clock interface.

1 slot, type C, message-based controller

GPIB, RS-232, Slot 0, and Resource Manager

Up to 2 MB RAM

The MXIbus protocol supports high throughput

Keysight VIC, VXI Installation Consultant - quick and easy setup

Message-based instruments support simple programming

The Keysight E1406A command module is a Type C, 1-slot, message-based VXI controller that provides slot 0 and resource manager functions. It can be used as a VMEbus system controller and GPIB (IEEE-488) to VXIbus interface device, easily communicating with message-based VXI modules from other manufacturers. The E1406A command module provides flash memory for downloadable drivers, allowing you to program register-using devices with the help of the advanced SCPI programming language. It also converts SCPI commands for register-using instruments, making VXI device programming as simple as message-based instruments.

The command module also includes MXIbus Explorer for VXIbus extensions, allowing you to maintain high throughput performance across multiple host systems. With the module's flexible trigger and clock connection, you can synchronize the VXI backplane 10 MHz clock with the external TTL signal.

E1406A VXI GPIB 命令模块
