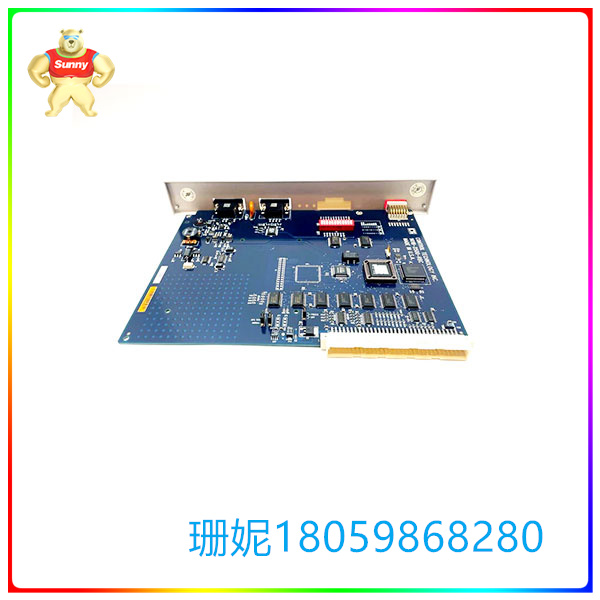

901E-2500-RBC 远程基本控制器

【产品详情】

2500-RBC Profibus远程基本控制器(RBC)允许CTI 2500系列或Simatic 505 I/O基本控制器作为符合Profibus标准的DP I/O通道上的从节点。远程基本控制器是西门子505-6870 RBC的直接替代品。请注意，2500-RBC不提供通过其串行端口对PLC进行编程。

特征

取代西门子505-6870

兼容西门子S5和S7以及CTI 2500系列和Simatic 505

可用于所有当前可用的CTI和西门子4、8和16插槽基座

支持从9.6千波特(每段最大电缆距离:1200米)到12兆波特(每段最大电缆距离:100米)的通信速度

支持所有CTI和西门子离散和模拟I/O模块

GSD文件随RBC一起提供，以允许通过COM PROFI进行配置

错误代码和站地址的LED显示

2500系列经典可编程控制器系统设计用于广泛的应用，包括那些需要离散和模拟控制。该系统旨在成为德州仪器和西门子505系统的兼容替代品。组件包括CPU和提供操作员界面、通信、I/O控制和电源的支持设备。这些系统执行与继电器、静态控制或插件逻辑控制系统相同的功能。它们可以检测来自按钮、限位开关和模拟传感器等设备的输入信号的状态变化。根据该信息并执行存储在存储器中的继电器梯形逻辑(RLL)程序，CPU产生输出信号以驱动电机启动器、螺线管、指示灯、调制控制阀等。这些信号用于调节各种设备的运行。全系列的分立、模拟、字和智能I/O模块可用于处理几乎任何输入或输出规格。这些I/O模块是坚固的插入式设备，能够在恶劣的环境中按照操作规范运行。

901E-2500-RBC 远程基本控制器

【英文介绍】

The 2500-RBC Profibus Remote Base Controller (RBC) allows the CTI 2500 series or Simatic 505 I/O base controller to act as a slave node on a Profibus compliant DP I/O channel. The Remote Base controller is a direct replacement for the Siemens 505-6870 RBC. Please note that the 2500-RBC does not provide programming of the PLC through its serial port.

trait

Replacing the Siemens 505-6870

Compatible with Siemens S5 and S7 as well as CTI 2500 series and Simatic 505

Available for all currently available CTI and Siemens 4, 8 and 16 slot pedestals

Supports communication speeds from 9.6 kilobd (maximum cable distance per segment :1200 m) to 12 megabd (maximum cable distance per segment :100 m)

All CTI and Siemens discrete and analog I/O modules are supported

The GSD file is provided with the RBC to allow configuration via COM PROFI

LED display of error codes and station addresses

The 2500 Series Classic programmable controller system is designed for a wide range of applications, including those requiring discrete and analog control. The system is intended to be a compatible alternative to the Texas Instruments and Siemens 505 systems. Components include a CPU and support devices that provide an operator interface, communication, I/O control, and power. These systems perform the same functions as relays, static control, or plug-in logic control systems. They can detect state changes in input signals from devices such as buttons, limit switches, and analog sensors. Based on this information and executing the relay ladder logic (RLL) program stored in memory, the CPU generates an output signal to drive the motor starter, solenoid, indicator light, modulation control valve, etc. These signals are used to regulate the operation of various devices. A full range of discrete, analog, word, and intelligent I/O modules can be used to handle almost any input or output specification. These I/O modules are rugged plug-in devices capable of operating to specifications in harsh environments.

901E-2500-RBC 远程基本控制器
