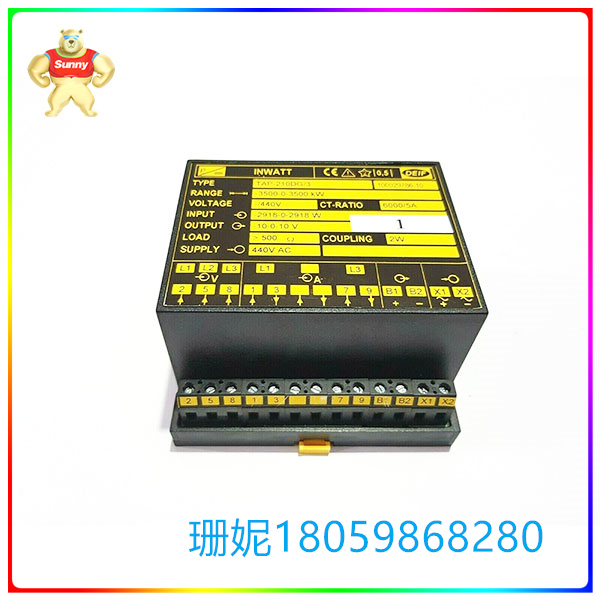

TAP-210DG-3 配置的传感器 用于电压、电流、频率或相角测量

【产品详情】

工厂配置的传感器，用于电压、电流、频率或相角测量

辅助电源:57至690伏交流电

辅助电源:24至220伏DC

0.5级测量

供应和测量电压高达690 V

预配置或简单的PC工具配置

最多可配置三个输出斜率

用于远程监控2、3或4温度的2线传感器>օ受射频磁场保护读出最高输出օ插入式PCB保护:IP65 > DEIF A/ size=”-2 ”

TEMAX-3.2B TEMAX-3.3B TEMAX-3.4B型传感器2 Pt100传感器3 Pt100传感器4 Pt100传感器> TEMAX-3用于监控2至4个温度。TEMAX-3.2B和TEMAX-3.3B稍后可能会在我们的工厂升级到3或4个测量点(分别为TEMAX-3.3B和TEMAX-3.4B型)。TEMAX-3型温度传感器通过CE认证，适用于住宅、商业和轻工业以及工业环境。> TEMAX-3用于监控来自2、3或4个Pt100电阻传感器的输入，在其内置的240指示上指示最高温度…

为了充分利用2线系统，换能器应该放置在测量点附近，以获得以下优点:噪声抑制信号以高电平传输，从而实现对噪声和干扰的相对不敏感性。օ简单布线从传感器到配电盘只需引出2根电线。Pt100传感器通过“双线耦合”连接到TEMAX-3。传感器引线中的电阻与Pt100传感器串联，如果不允许，就会产生误差。为了避免这种错误，TEMAX-3为…

测量范围:0…150摄氏度或0摄氏度…200аC(可根据要求提供其他范围)。温度传感器:Pt100，双线。引线补偿:根据一对15 m – 1.5 mm > 2或10 m – 1 mm铜连接引线，调整引线电阻0.35 > 2ω。引线补偿电阻:无。最大持续过载:最大。36V DC(指所有输入和输出)。输出:4…20mA恒定电流。任何输入的温度都可以在内置仪器上读取。最大输出:扩展输入上的32mA(例如开路或断开的传感器)。输出纹波:最大值。V > S = 2 V > pp时为0.5% pp…

TAP-210DG-3 配置的传感器 用于电压、电流、频率或相角测量

【英文介绍】

Factory-configured sensors for voltage, current, frequency or phase Angle measurement

Auxiliary power :57 to 690 volts AC

Auxiliary power supply :24 to 220 volts DC

Class 0.5 measurement

Supply and measure voltages up to 690 V

Pre-configured or simple PC tool configuration

Up to three output slopes can be configured

2-wire sensors for remote monitoring of 2, 3 or 4 temperatures >օ Read maximum output protected by RF magnetic field օ Plug-in PCB protection :IP65 > DEIF A/ size= "-2"

TEMAX-3.2B TEMAX-3.3B TEMAX-3.4B Type Sensor 2 Pt100 Sensor 3 Pt100 Sensor 4 Pt100 Sensor > TEMAX-3 is used to monitor 2 to 4 temperatures. TEMAX-3.2B and TEMAX-3.3B may later be upgraded to 3 or 4 measurement points at our facility (TEMAX-3.3B and TEMAX-3.4B models, respectively). The TEMAX-3 temperature sensor is CE certified and is suitable for residential, commercial and light industrial as well as industrial environments. > TEMAX-3 is used to monitor inputs from 2, 3 or 4 Pt100 resistance sensors, indicating the maximum temperature on its built-in 240 indicator.

To take full advantage of a 2-wire system, the transducer should be placed near the measuring point to obtain the following advantages: noise suppression signals are transmitted at high levels, thus achieving relative insensitivity to noise and interference. օ Simple wiring It takes only 2 wires to lead from the sensor to the switchboard. The Pt100 sensor is connected to TEMAX-3 by "two-wire coupling". The resistance in the sensor lead is in series with the Pt100 sensor, and if it is not allowed, an error will occur. To avoid this error, TEMAX-3 is...

Measuring range :0... 150 degrees Celsius or 0 degrees Celsius... 200 alpha (additional ranges available upon request). Temperature sensor :Pt100, double wire. Lead compensation: Adjust lead resistance 0.35 > 2ω according to a pair of 15 m - 1.5 mm > 2 or 10 m - 1 mm copper connection leads. Lead compensation resistance: None. Maximum sustained overload: Maximum. 36V DC(refers to all inputs and outputs). Output :4... 20mA constant current. Any input temperature can be read on the built-in instrument. Maximum output: 32mA on extended inputs (e.g. open or disconnected sensors). Output ripple: Maximum value. V > S = 2 V > pp 0.5% pp...

TAP-210DG-3 配置的传感器 用于电压、电流、频率或相角测量
