PS693  TOSHIBA  Unif nv系列控制器

【产品详情】

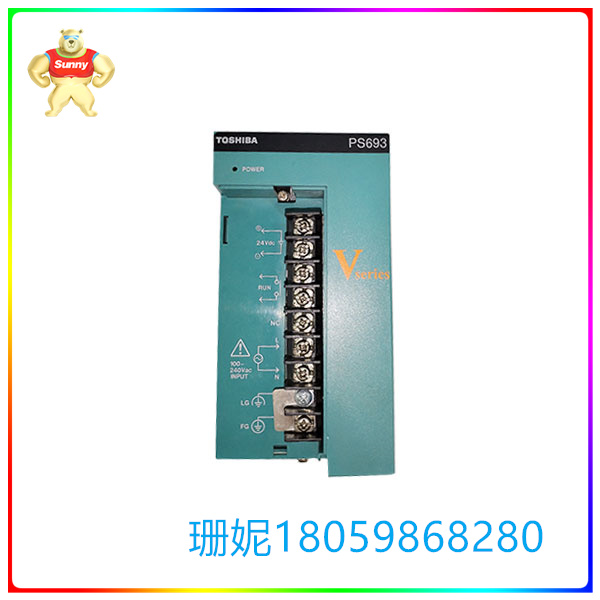

TOSHIBA PS693

东芝最新的工业控制器Unif nv系列控制器，是超越现有的一大步V系列用于世界各地的工业，的能力包括高速逻辑，测序，电机调速控制，连续控制。高速I/0通信使用业界的前100Mbps容错环网TC-netl/0”，连接远程，现场安装的I/0功能TOSHIBA PS693节比特和整数处理:20 ns;浮点加/乘 :120ns控制周期短二个独立调度的周期任务:0.5 ms  1000ms程容量大程序可达256公斤的步(指今)，可达385人周期程席高数据容量局部/全局变量256k字:/O变量16.384个16位字中断总共16个中断任务每机箱最多3个控制/多达4人通信模块:余可以进行控制/器和网络配置四种IEC 611313标准语言:LD、FBD、SFC和ST内存可靠性各模块内部内存中的纠错ECC电路

TOSHIBA PS693减少数以百计的长线路运行之间电气室和机械，1控制器特性现场可持载1/0模块通信通过光回路控制。使用这个方法，布线材料和人丁成本都可以大大降低，来保护模块免受条件靠近机器、箱体等级为IP54，防尘，振动，水花飞溅，滴落。字段J0被容纳在像下图这样的柜子里。外壳，典型的场围是1200宽，高2100毫米，深600毫米。的外壳包含断路器、电源物品和其他部件在左手边右侧为安装在din导轨上的/0模块，整机额定等级为IP54。还有其他尺寸的以适应应用，如底座或墙壁安装，电气房间外壳，这是同样的尺寸用于现场I/0的外壳，但带电TC-net 1/0布线到SIO模块。一个光学如果布线距离需要，则使用接口。控制器的安排可以多达三个cpu。此外壳等级为IP20。

PS693  TOSHIBA  Unif nv系列控制器

【英文介绍】

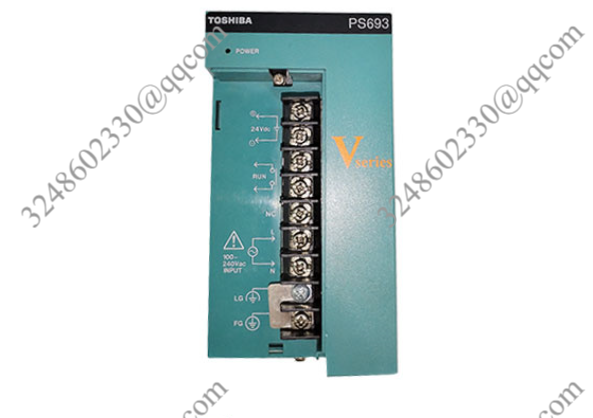

TOSHIBA PS693

Toshiba's latest industrial controllers, Unif nv Series controllers, are a big step beyond the existing V Series used in industries around the world, with capabilities including high-speed logic, sequencing, motor speed control, and continuous control. High-speed I/0 communication using the industry's first 100Mbps fault-tolerant ring network TC-netl/0 ", connected to remote, field-installed I/0 function TOSHIBA PS693 bit and integer processing :20 ns; Floating-point addition/multiplication :120ns short control period Two independently scheduled periodic tasks: 0.5ms 1000ms process capacity of large programs up to 256 kg step (refers to today), Up to 385 person cycle seats High data capacity Local/global variable 256k words :/O variable 16.384 16-bit word interrupts A total of 16 interrupt tasks up to 3 controls per chassis/up to 4 person communication module: The remaining can be controlled/device and network configuration of four IEC 611313 Standard language :LD, FBD, SFC, and ST Memory Reliability Error-correcting ECC circuits in the internal memory of each module

The TOSHIBA PS693 reduces hundreds of long line operations between the electrical room and the machinery, and the 1 controller features on-site on-board 1/0 module communication controlled via an optical loop. Using this method, wiring materials and personnel costs can be greatly reduced to protect the module from conditions close to the machine, case class IP54, dust, vibration, splash, drip. Field J0 is contained in a cabinet like the one below. Shell, typical field circumference is 1200 wide, 2100 mm high, 600 mm deep. The housing contains circuit breakers, power supplies and other components on the left hand side and the right side is the /0 module mounted on the din rail. The whole unit is rated IP54. There are other sizes available to suit the application, such as base or wall mount, electrical room housings, which are the same size housings used for field I/0, but live TC-net 1/0 wiring to the SIO module. An optical interface is used if the wiring distance is required. Controllers can be arranged for up to three cpus. This enclosure is rated IP20.
