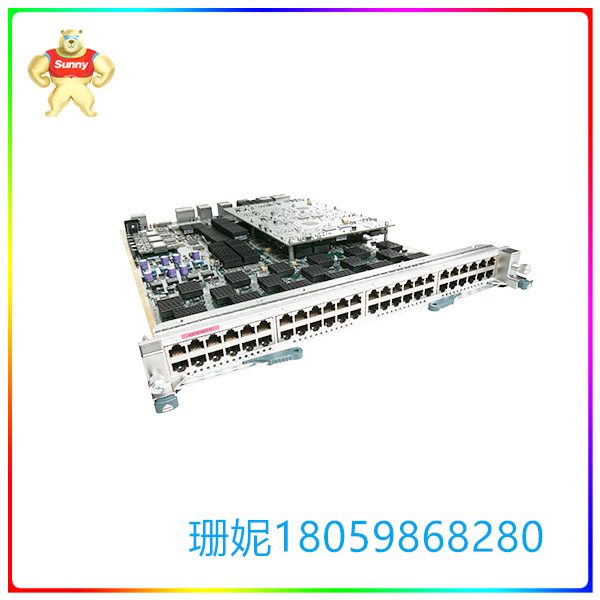

N7K-M148GT-11L 思科 Nexus 以太网模块是高度可扩展的模块

【产品详情】

产品概述

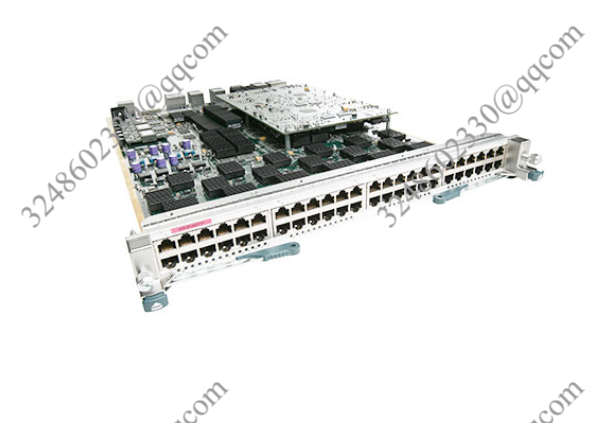

带 XL 选件的思科 Nexus 7000 M1 系列 48 端口千兆以太网模块是高度可扩展的模块，专为性能驱动型任务关键型以太网网络而设计。这些模块使用 M1-XL 转发引擎，提供高达 60 万数据包/秒 （Mpps） 的吞吐量和大型转发信息库 （FIB），非常适合部署在互联网交换点 （IXP）、服务提供商或大型企业中。48 端口模块有两个版本：使用小型可插拔 （SFP） 光纤的光纤千兆以太网选项（图 1）和带 RJ-10 连接器的铜质 100/1000/45 选项（图 2）。®

Cisco Nexus 7000 系列交换机包括模块化数据中心级产品线，专为高度可扩展的 10 Gb 以太网网络而设计，其交换矩阵架构可扩展到 15 太比特每秒 （Tbps） 以上，旨在支持高密度 40 和 100 GB 以太网部署。这些交换机旨在满足大多数任务关键型网络环境的要求，提供连续的系统运行和虚拟化的普遍服务。思科 Nexus 7000 系列由久经考验的思科 NX-OS 操作系统提供支持，具有增强的功能，可提供实时系统升级，并具有出色的可管理性和可维护性。其创新的统一交换矩阵设计旨在支持在单个以太网交换矩阵上整合 IP、存储和进程间通信 （IPC） 网络。®

特点和优点

带 XL 选件的 Cisco Nexus 7000 M1 系列 48 端口千兆以太网模块具有许多关键功能，旨在实现灵活部署和支持需要高密度和全面功能集的最高性能环境。借助可选的可扩展功能许可证，这些模块可以在增强型 XL 模式下运行，从而可以利用转发引擎上提供的完整转发表，这对于大型企业或 Internet 对等环境等大规模部署至关重要。此较大的 FIB 表可以支持完整 Internet 路由表的多个副本，以便在具有虚拟路由和转发 （VRF） 和虚拟设备上下文 （VDC） 支持的面向 Internet 的部署中使用。在XL或非XL模式下运行的能力使这些模块在多种类型的网络环境中非常灵活。Cisco Nexus 7000 M1 系列 48 端口千兆以太网 XL 模块的光纤版本还支持广泛的 SFP 光纤，允许在各种类型的情况下进行部署，从通过单模光纤 （SMF） 进行长距离站点间部署到通过多模光纤 （MMF） 进行短距离和中距离部署，适用于数据中心和园区环境。带 XL 选件的 Cisco Nexus 7000 M1 系列 48 端口千兆以太网模块提供 48 Gbps 的本地交换，非常适合高密度、高性能和连续系统运行至关重要的接入层。

所有思科 Nexus 7000 M1 系列 I/O 模块都包含集成转发引擎。1 端口模块上的 M48-XL 转发引擎是思科 Nexus 7000 M1 系列转发引擎的一部分，包含更大的 FIB 和访问控制列表 （ACL） 表。该模块与所有现有的M1模块完全兼容，并提供与所有现有M1模块的功能一致性。表 7000 列出了在 XL 和非 XL 模式下运行的带 XL 选项的 Cisco Nexus 48 系列 <> 端口千兆以太网模块的性能规格。

【英文介绍】

Product overview

The Cisco Nexus 7000 M1 Series 48-port Gigabit Ethernet module with XL option is a highly scalable module designed for performance-driven, mission-critical Ethernet networks. Using the M1-XL forwarding engine, these modules provide throughput of up to 600,000 packets per second (Mpps) and large forwarding information bases (FIBs), making them ideal for deployment in Internet exchange points (IXP), service providers or large enterprises. The 48-port module comes in two versions: an optical Gigabit Ethernet option using small pluggable (SFP) fiber (Figure 1) and a copper 100/1000/45 option with an RJ-10 connector (Figure 2). ®

The Cisco Nexus 7000 Series switches include a modular data center grade product line designed for highly scalable 10 Gb Ethernet networks with a switch matrix architecture that scales to more than 15 terabits per second (Tbps) and is designed to support high-density 40 and 100 GB Ethernet deployments. These switches are designed to meet the requirements of most mission-critical network environments, providing continuous system operation and virtualized universal services. The Cisco Nexus 7000 Series is powered by the proven Cisco NX-OS operating system with enhanced features, real-time system upgrades, and excellent manageability and maintainability. Its innovative unified switching matrix design is designed to support the consolidation of IP, storage, and interprocess communication (IPC) networks on a single Ethernet switching matrix. ®

Features and advantages

The Cisco Nexus 7000 M1 Series 48-port Gigabit Ethernet module with XL option has a number of key features designed to enable flexible deployment and support the highest performance environments that require high density and a comprehensive feature set. With an optional extensible feature license, these modules can run in enhanced XL mode, allowing them to take advantage of the full forwarding table provided on the forwarding engine, which is critical for large-scale deployments such as large enterprise or Internet peer-to-peer environments. This larger FIB table can support multiple copies of the complete Internet routing table for use in Internet-facing deployments with virtual Routing and forwarding (VRF) and virtual device context (VDC) support. The ability to operate in XL or non-XL mode makes these modules very flexible in many types of network environments. The fiber version of the Cisco Nexus 7000 M1 Series 48-port Gigabit Ethernet XL module also supports a wide range of SFP fibers, allowing deployment in various types of situations, From long-distance intersite deployment via single-mode fiber (SMF) to short - and medium-distance deployment via multi-mode fiber (MMF) for data center and campus environments. The Cisco Nexus 7000 M1 Series 48-port Gigabit Ethernet module with XL option provides 48 Gbps local switching, ideal for the access layer where high density, high performance and continuous system operation are critical.

All Cisco Nexus 7000 M1 Series I/O modules include an integrated forwarding engine. The M48-XL forwarding engine on the 1 port module is part of the Cisco Nexus 7000 M1 family of forwarding engines and contains larger FIB and access Control list (ACL) tables. The module is fully compatible with all existing M1 modules and provides functional consistency with all existing M1 modules. Table 7000 lists the performance specifications for the Cisco Nexus 48 Series <> port Gigabit Ethernet module with XL option operating in XL and non-XL modes.
