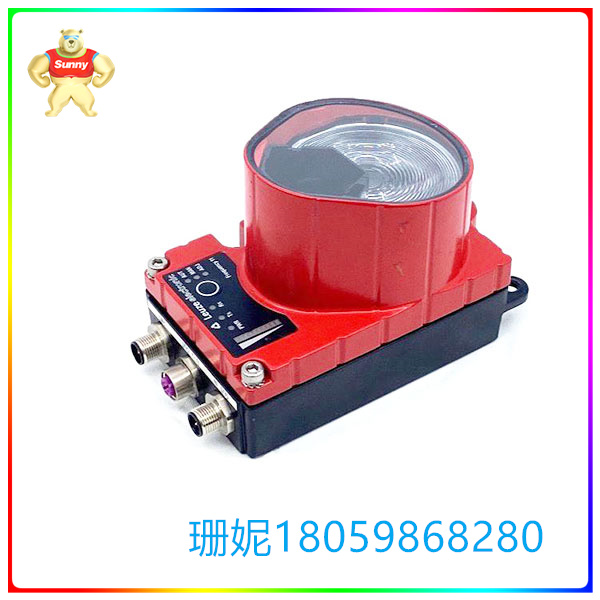

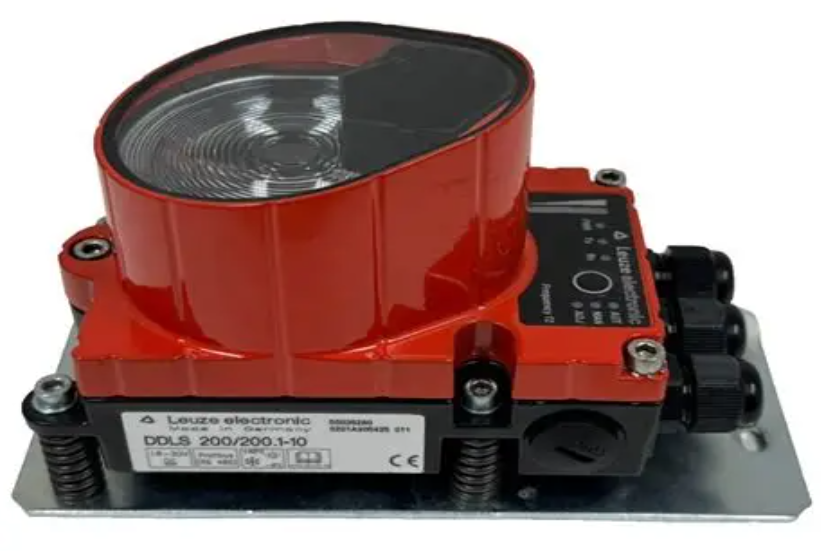

LEUZE-DDLS-200-200.2-50-M12-50125768 光学数据传输器
【产品详情】
系列 DDLS 200
专门设计 平行光轴运行
无反射表面干扰
工作范围 200 ... 200,000 mm
光源 LED, 红外线
RS 接口和现场总线的光数据传输范围可达 300m，速度可达 2Mbit/s。由于采用红外线传输，DDLS 200 不受干扰影响。适用于采用所有常见工业现场总线接口的系统。传输范围逐步增加，最高可达300m传输距离。通过专门FSK方法实现的低环境光敏度。可用接口：PROFIBUS、Interbus 和 CAN/DeviceNet 以及 RS422 和 RS 485。
传输频率 F2
发射器有效开口角度 1 °
供电电压 UB 18 ... 30 V, DC
数字开关量输入数 1 个
数字开关量输出数 1 个
类型 CANopen, DeviceNet
传输速度 10 ... 1,000 kBit/s
传输速度 125 ... 500 kBit/s
接口数量 3 个
类型 接头
设备上名称 总线输入
螺纹规格 M12
尺寸（宽 x 高 x 长） 89.25 mm x 196.5 mm x 111.8 mm
外壳材料 金属
净重 1,245 g
显示类型 LED
条状图
范围：0-200毫米
分辨率：0.2毫米
精度： +/- 0.5毫米
工作温度：-10°C 至 50°C
输出：模拟4-20mA
规格：
尺寸：50 毫米 x 50 毫米 x 25 毫米
重量：50g
电源：24V DC
防护等级：IP67
LEUZE-DDLS-200-200.2-50-M12-50125768 光学数据传输器
【英文介绍】
Series DDLS 200
Specially designed for parallel optical axis operation
No reflective surface interference
Work range 200... 200,000 mm
Light source LED, infrared
The optical data transmission range of RS interface and fieldbus can reach 300m, and the speed can reach 2Mbit/s. Due to infrared transmission, the DDLS 200 is immune to interference. Suitable for systems using all common industrial fieldbus interfaces. The transmission range is gradually increased, up to 300m transmission distance. Low ambient light sensitivity achieved by specialized FSK methods. Available interfaces: PROFIBUS, Interbus and CAN/DeviceNet as well as RS422 and RS 485.
Transmission frequency F2
The effective opening Angle of the transmitter is 1 °
Supply voltage UB 18... 30 V, DC
Digital switch input number 1
Digital switching output number 1
Type CANopen, DeviceNet
Transmission speed 10... 1,000 kBit/s
Transmission speed 125... 500 kBit/s
Number of interfaces 3
Type joint
Name bus input on the device
Thread size M12
Dimensions (W x H x D) 89.25mm x 196.5mm x 111.8mm
Housing material metal
Net weight 1,245 g
Display type LED
Bar chart
Range: 0-200 mm
Resolution: 0.2 mm
Accuracy: +/- 0.5 mm
Operating temperature: -10°C to 50°C
Output: Analog 4-20mA
Specifications:
Size: 50 mm x 50 mm x 25 mm
Weight: 50g
Power supply: 24V DC
Protection level: IP67
