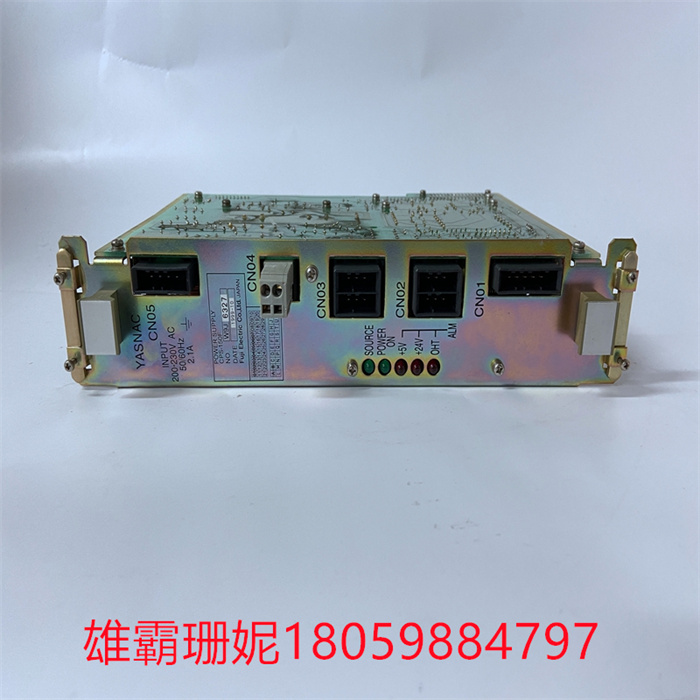

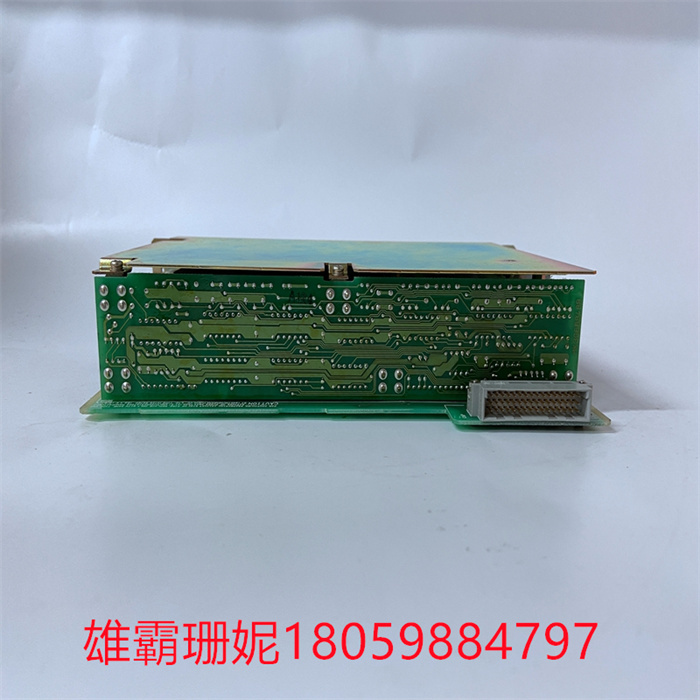

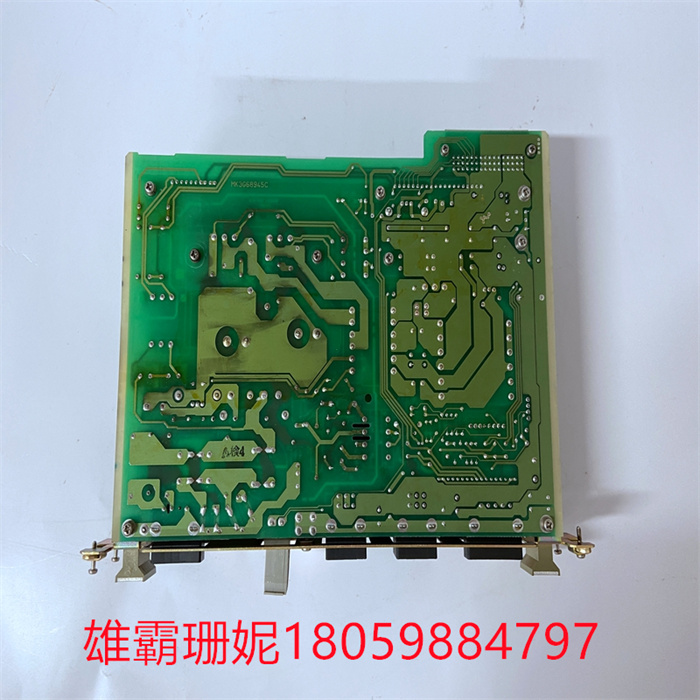

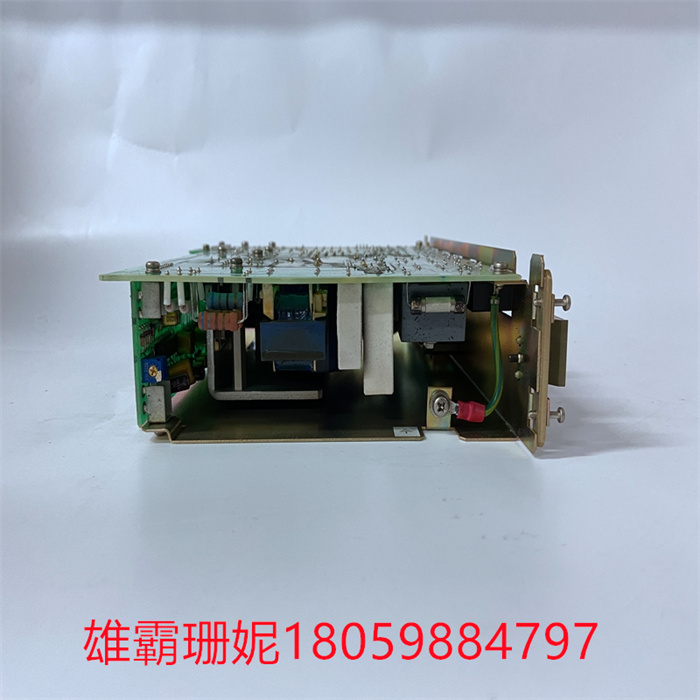

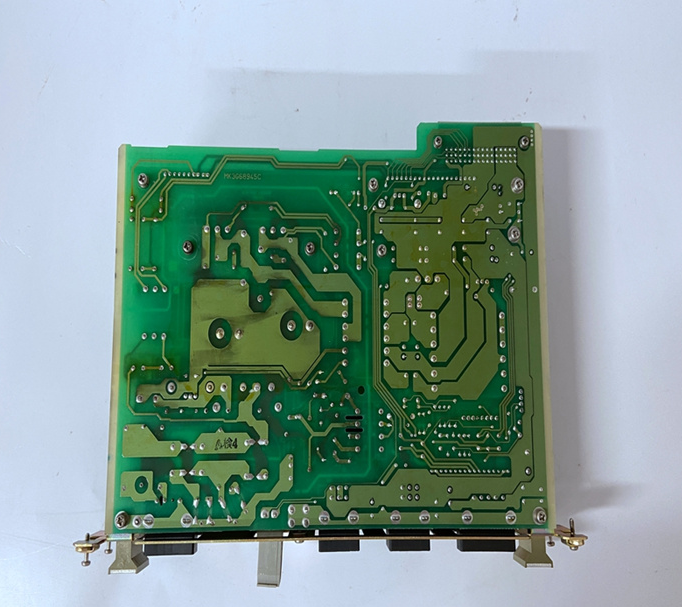

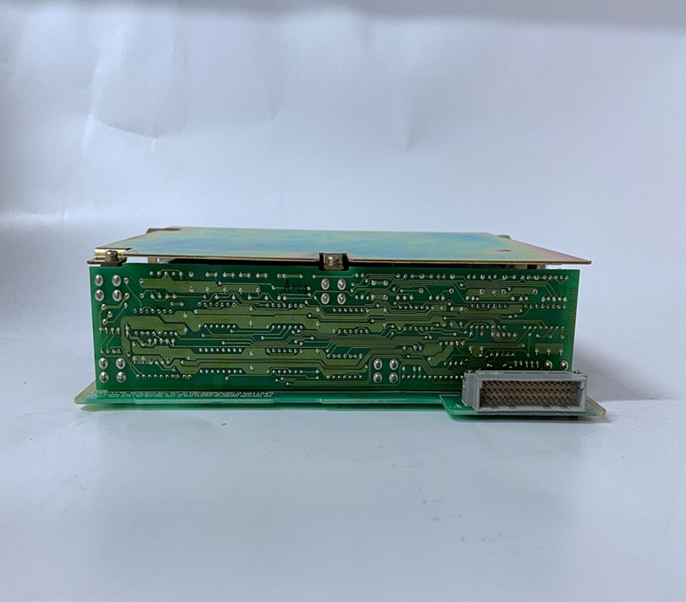

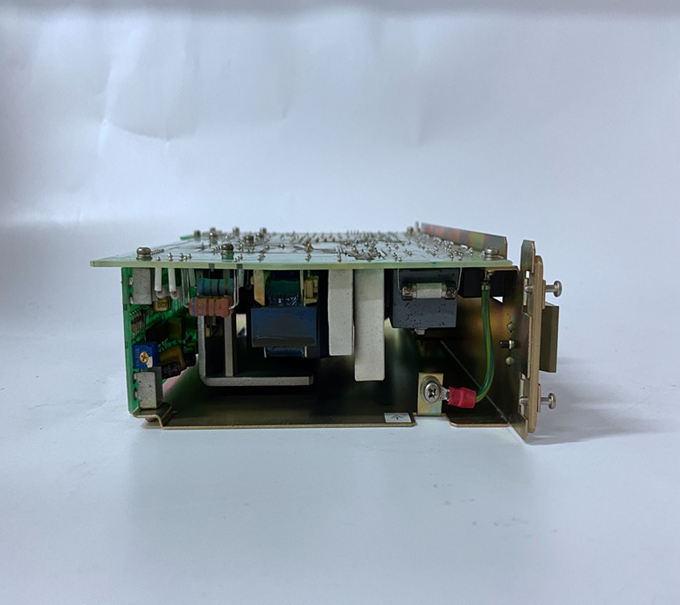

YASKAWA CPS-150F 伺服控制器

YASKAWACPS-150F 伺服控制器

YASKAWACPS-150F 伺服控制器

CPS-150F YASKAWA

产品特性:触摸面板

是否进口:是

产地:美国

加工定制:否

品牌: YASKAWA

冗余串行接口由一对串行卡组成

和冗余接线板。每张卡片包含两张

支持RS422/485一半的串行通信端口

双工（在单从或多点配置中），

或RS422/485全双工（仅在单从配置中），

以及RS232。这些端口可单独配置

并且支持高达115KBaud的数据速率。

活动和备用串行卡分别连接到

使用冗余终端的从设备上的串行端口

块与设备供应商核实其支持能力

冗余Modbus串行通信。

当检测到故障时，系统会自动

切换到备用串行卡。可能导致的事件

切换包括：

活动卡内的硬件故障

通信故障（包括现场电缆和从端口

问题）

从托盘中取出活动卡

也可以从控制逻辑启动切换。这

允许额外的看门狗逻辑监视多个从设备

未检测到通信故障的设备

串行接口。可以启动手动切换

来自诊断浏览器。

控制器扫描冗余对中的每个卡。增量

控制器负载是冗余数量的函数

卡。此外，冗余卡具有专用

通过所述端子块在所述对之间进行通信，

并且备份卡监测活动卡的健康状况。

YASKAWACPS-150F 伺服控制器

CPS-150F YASKAWA

Product features: Touch panel

Import or not: Yes

Origin: USA

Processing customization: No

Brand: YASKAWA

A redundant serial interface consists of a pair of serial cards

And redundant patch boards. Each card contains two

Supports half of RS422/485 serial communication ports

Duplex (in single slave or multipoint configurations),

Or RS422/485 full duplex (only in single slave configuration),

And RS232. These ports can be configured separately

It also supports data rates up to 115KBaud.

The active and standby serial cards are connected to

Serial ports on secondary devices using redundant terminals

The block verifies its support capabilities with the equipment supplier

Redundant Modbus serial communication.

When a fault is detected, the system automatically

Switch to the standby serial card. Events that may result

Switching includes:

The hardware in the active card is faulty

Communication failure (including field cable and slave port)

Question)

Remove the activity card from the tray

Switching can also be initiated from the control logic. this

Allows additional watchdog logic to monitor multiple slave devices

No communication failure was detected for the device

Serial interface. Manual switching can be started

From Diagnostic Browser.

The controller scans each card in the redundant pair. increment

Controller load is a function of the amount of redundancy

Card. In addition, redundant cards are dedicated

Communicate between the pairs through the terminal block,

And the backup card monitors the health of the active card.

YASKAWACPS-150F 伺服控制器
