☆型号:350-9301007768-320001 C VMEbus单板计算机 非常丰富的I/O集
【产品详情】

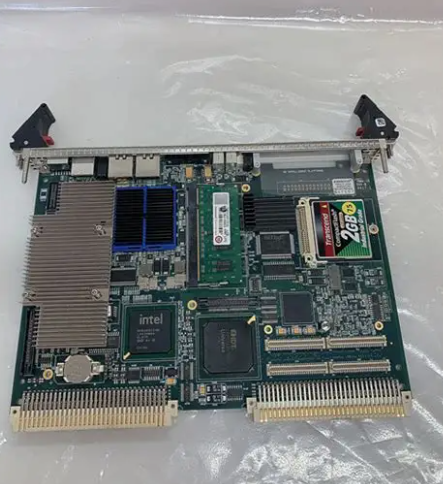

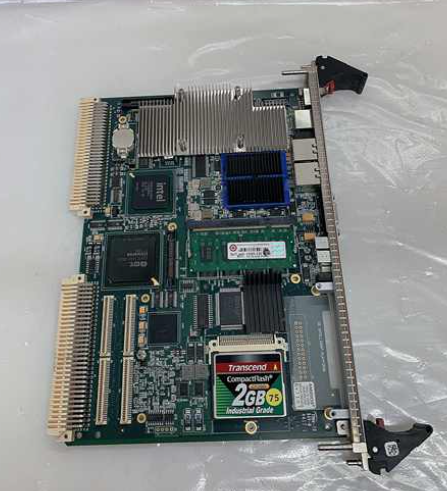

V7768是GE发那科智能平台的VMEbus单板计算机,通过英特尔酷睿2双核处理器和高达2 gb的DDR2 SDRAM提供高达2.16 GHz的处理速度。
该板集成了英特尔945GME Express芯片组,并提供了非常丰富的I/O集,使其成为我们扩展的英特尔架构VME sbc系列的非常灵活的补充。I/O选项包括双千兆以太网,两个SATA接口,四个USB 2.0端口,前面板上的键盘/鼠标/SVGA,以及一个支持PCI-X的PMC站点。
V7768还提供了赛扬®M处理器选项,允许在最高工作温度限制上增加20度。
V7768为GE发那科智能平台的PMC237CM1/V PMC扩展板提供了板对板连接器,进一步提供了客户定义的I/O功能,除了V7768上的PCI-X PMC扩展点外,还为客户提供了三个额外的PMC扩展点。
☆型号:350-9301007768-320001 C VMEbus单板计算机 非常丰富的I/O集
【英文介绍】
The V7768 is a VMEbus single-board computer for GE Fanuc's intelligent platform, offering processing speeds of up to 2.16 GHz via an Intel Core 2 Duo processor and up to 2 gb of DDR2 SDRAM.
The board integrates the Intel 945GME Express chipset and offers a very rich I/O set, making it a very flexible complement to our extended Intel architecture VME sbc family. I/O options include dual Gigabit Ethernet, two SATA ports, four USB 2.0 ports, keyboard/mouse /SVGA on the front panel, and a PMC site with PCI-X support.
The V7768 also offers a Celeron ®M processor option that allows for an additional 20 degrees to the maximum operating temperature limit.
The V7768 provides a board-to-board connector for the GE Fanuc Intelligent Platform's PMC237CM1/V PMC expansion board, further providing customer-defined I/O capabilities and three additional PMC expansion points for customers in addition to the PCI-X PMC expansion points on the V7768.
