☆型号：DS200IIBDG1AGA 绝缘栅双极晶体管 用于提供处理状态
【产品详情】

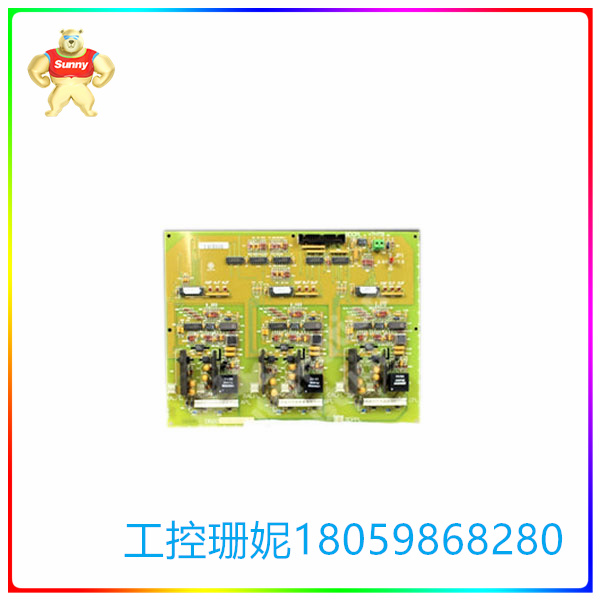

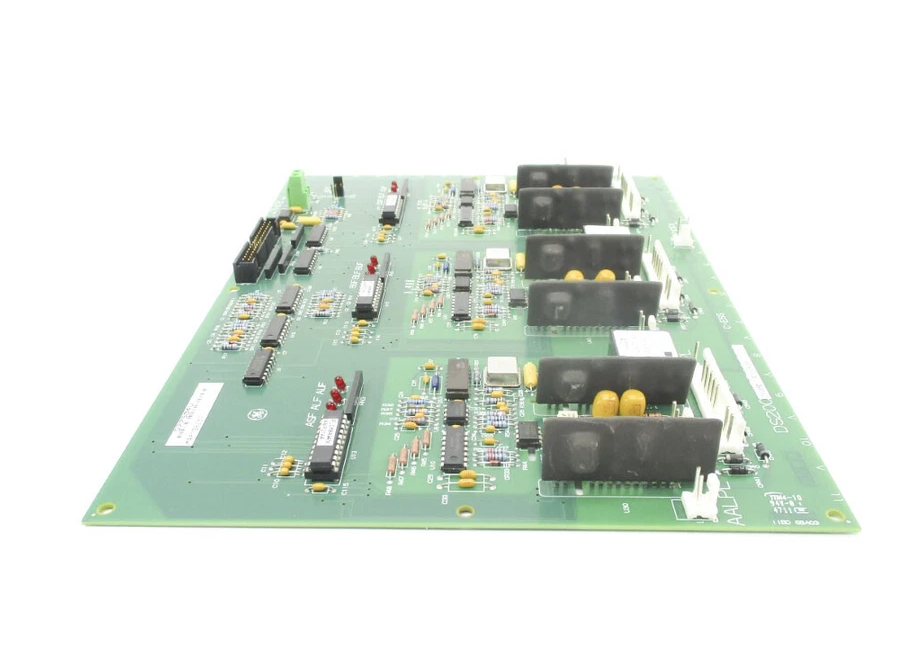

GE绝缘栅双极晶体管（IGBT）板DS200IIBDG1AGA包含9个LED指示灯，用于提供处理状态。LED 从电路板机柜内部可见，点亮时呈红色。 LED 在电路板上分为三组，每组包含三个 LED。每组 LED 都与位于 LED 相邻的 8 针连接器相关联。LED 指示从 8 针连接器接收或发送的信号的状态。
三个 8 针连接器在 GE 绝缘栅双极晶体管 （IGBT） 板DS200IIBDG1AGA上被标识为 APL、BPL 和 CPL。此外，该板还装有一个 34 引脚连接器，该连接器由两排 17 个引脚组成。带状电缆可以连接到 34 针连接器。带状电缆也连接到机柜中的电路板，必须正确布线以避免接触其他组件。电缆仅限于驱动器内部。
☆型号：DS200IIBDG1AGA 绝缘栅双极晶体管 用于提供处理状态
【英文介绍】
The GE insulated gate bipolar transistor (IGBT) board DS200IIBDG1AGA contains nine LED indicators to provide processing status. The LED is visible from inside the circuit board cabinet and appears red when lit. The LED is divided into three groups on the circuit board, each group contains three leds. Each set of leds is associated with an 8-pin connector located adjacent to the LED. The LED indicates the status of the signal received or sent from the 8-pin connector.
The three 8-pin connectors are identified as APL, BPL, and CPL on the GE insulated gate bipolar transistor (IGBT) board DS200IIBDG1AGA. In addition, the board is fitted with a 34-pin connector that consists of two rows of 17 pins. The ribbon cable can be connected to a 34-pin connector. The ribbon cable is also connected to the circuit board in the cabinet and must be properly routed to avoid contact with other components. Cables are limited to the inside of the drive.
☆型号：DS200IIBDG1AGA 绝缘栅双极晶体管 用于提供处理状态
