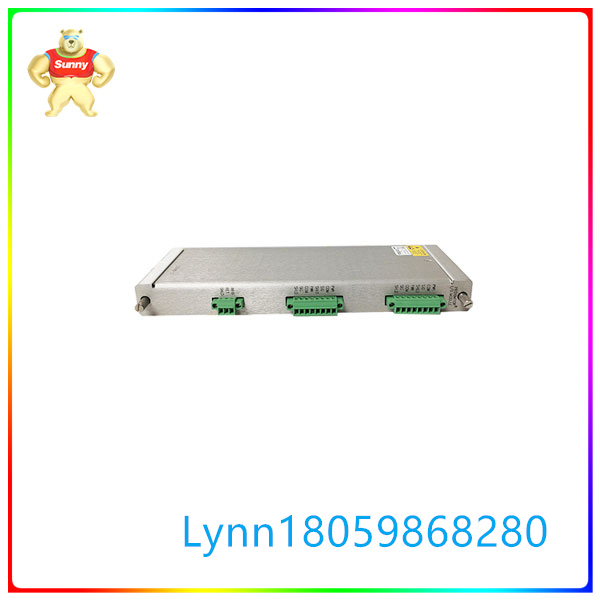

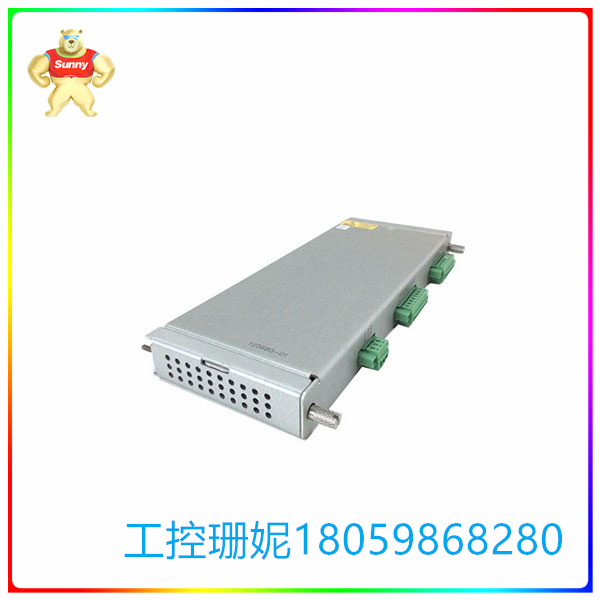

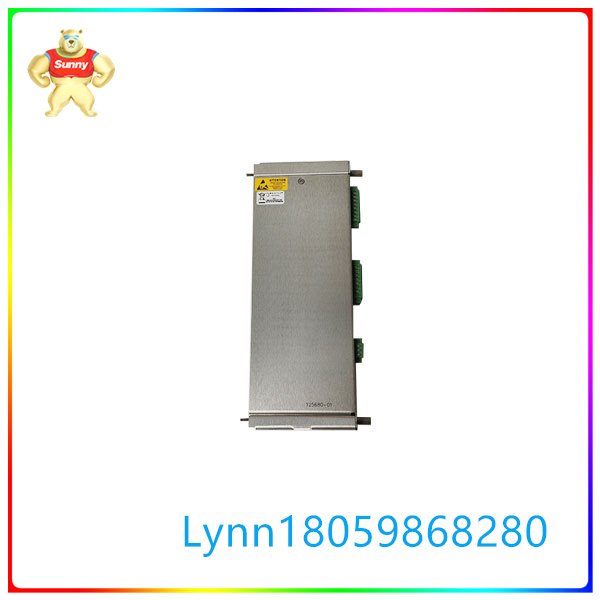

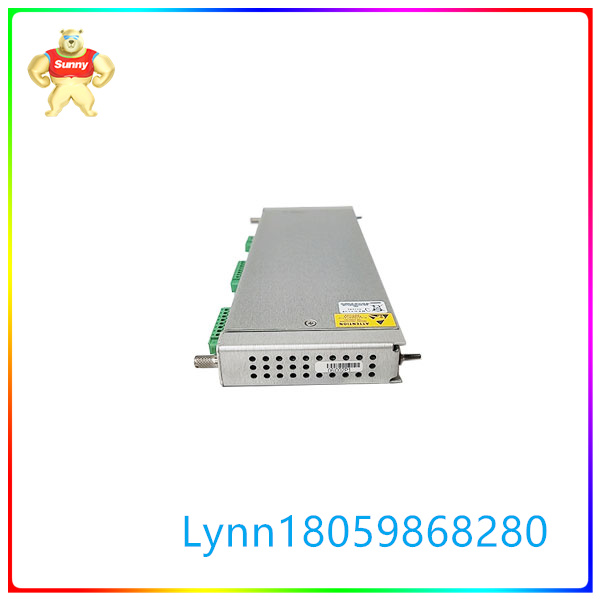

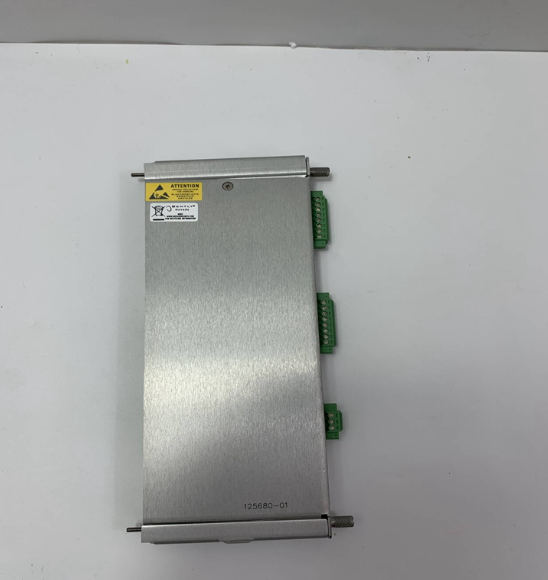

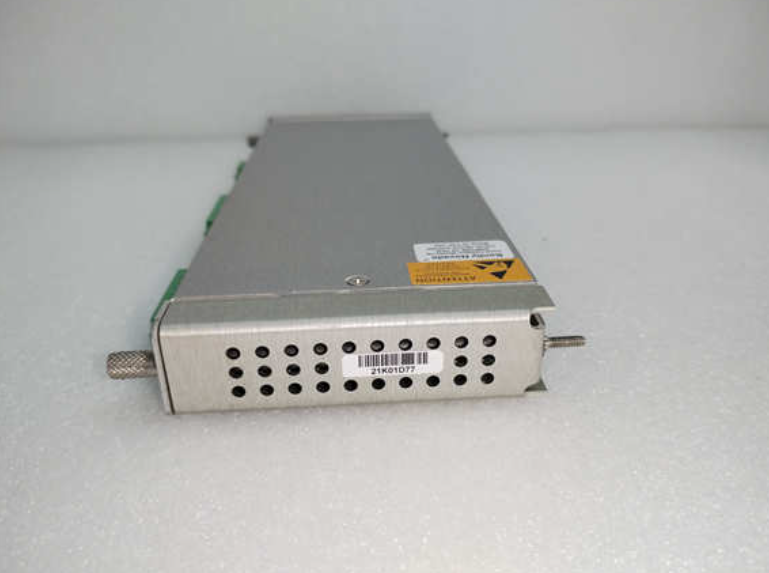

125680-01 位移检测模块 通信网关模块

☆型号：125680-01 位移检测模块 通信网关模块

【产品详情】

前面板上各LED（发光 二极管）含义：  

OK LED:  当框架接口模块操作正常时闪亮；  

TX/RX LED: 当RIM 与3500 框架中的其它模块相互通讯时闪亮；  

TM LED: 当3500 框架处于报警倍增状态时闪亮；  

CONFIG OK LED: 当3500 框架的组态正确时闪亮。 

前面板各硬件开关作用：

框架复位按钮: 清除锁定的报警和延时正常通道(Timed OK)失败，同输入/输出模块上的“框架复位”触点有相同的功能。  

地址开关: 用来设置框架地址，共有63 个可选地址。  

组态钥匙锁: 是用来设定3500 框架处于"RUN"（“运行”）模式或"PROGRAM"（“编程”）模式。RUN 模式允许框架正常操作并且锁定任何组态变化。PROGRAM 模式允许框架正常运行并且允许对框架进行远程或本地组态。钥匙键可以在框架中的两个位置之间任意转还，允许开关保持在RUN 或PROGRAM 位置。锁定至RUN 方式可以防止任何非授权的框架组态。锁定至PROGRAM 方式可以在任何时间对框架进行远程组态。

☆型号：125680-01 位移检测模块 通信网关模块

【英文介绍】

The meanings of each LED (light-emitting diode) on the front panel:

OK LED: Lights up when the frame interface module is operating normally;

TX/RX LED: Lights up when RIM communicates with other modules in the 3500 frame;

TM LED: Lights up when the 3500 frame is in the alarm doubling state;

CONFIG OK LED: Lights up when the 3500 frame is configured correctly.

Functions of hardware switches on the front panel:

Frame reset button: Failure to clear the locked alarm and Timed OK channels has the same function as the "Frame reset" contact on the input/output module.

Address switch: Used to set the frame address, a total of 63 optional addresses.

Configuration key lock: is used to set 3500 frame in "RUN" (" Run ") mode or "PROGRAM" mode. RUN mode allows the framework to operate normally and locks in any configuration changes. PROGRAM mode allows the framework to run properly and allows the framework to be configured remotely or locally. The key key can be rotated between two positions in the frame, allowing the switch to remain in the RUN or PROGRAM position. Locking to RUN mode prevents any unauthorized framework configurations. Locking to PROGRAM mode allows you to remotely configure the framework at any time.
