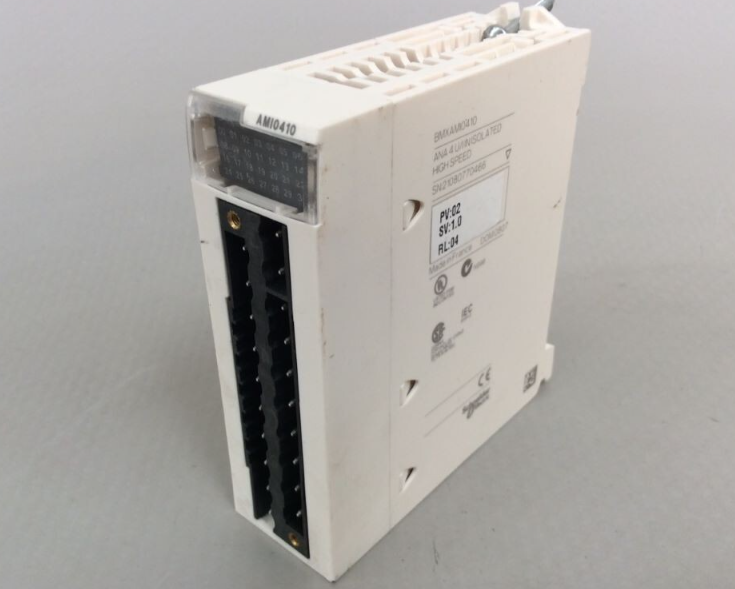

BMXAMI0410 4 U/I 隔离高速模拟 I/O 模块 支持高电平模拟输入

☆型号：BMXAMI0410  4 U/I 隔离高速模拟 I/O 模块 支持高电平模拟输入

【产品详情】

零件编号 BMXAMI0410

制造者 施耐德电气

类型 I/O 模块

型# 小轮车-AMI-0410

保证 2年

范围 莫迪康 X80

设计 模拟输入

连接 20 /1 连接

模拟输入 4 输入

模拟/数字转换 24 位

模拟输入分辨率 16 位

内部转换电阻 0.1 % - 15 ppm/°C

连接

BMXAMI0410模块的电气连接是通过 20 路连接器进行的。每个输入通道都是隔离的，确保可靠和准确的信号传输。该模块支持高电平模拟输入，电流范围为 0 至 20 mA 和 4 至 20 mA，电压范围为 ±10 V、±5 V、0 至 10 V、0 至 5 V 和 1 至 5 V。

特征

该模块集成了一个 24 位模数转换器，提供高分辨率转换，用于精确测量模拟信号。模拟输入分辨率为 16 位，可准确表示输入值。它还提供内部保护电阻和输入阻抗规格，以确保信号完整性和过载保护。

为了优化信号质量，BMXAMI0410模块具有一阶数字滤波功能，并提供低至每通道 1 ms 的快速读取周期时间。所有四个通道的标称读取周期时间为 5 ms。这样可以在时间敏感型应用中实现高效的数据采集和处理。

该模块提供出色的测量精度，在 0 至 60 °C 的温度范围内，对于各种输入范围（如 ±10 V、±5 V、0 至 10 V、0 至 5 V、1 至 5 V、0 至 20 mA 和 4 至 20 mA），误差小于满量程的 0.1%。 它提供漂移为 15 ppm/°C 的精密内部转换电阻。

模块的校准可以在内部执行，从而简化维护并减少停机时间。它提供 80 dB 的最小串扰衰减，确保通道之间的干扰最小。该模块还提供高共模抑制和宽数字值格式范围，以实现灵活的数据表示。


产品技术参数资料

Modicon M340 Parts ListM340 Series Product Brochure

Datasheet0147988_Catalogue_en

Product Environmental Profile

法例与合规

 符合

 符合声明

产品详细信息

Schneider Electric PLC 输入/输出模块，适合与 Modicon M340 系列一起使用，24V 直流额定电压，4 个输入 - BMXAMI0410

您正在寻找用于系统快速转换模拟信号的 PLC 输入/输出模块？选择 Schneider Electric 的此环保产品。它具有 4 个模拟信号输入，用于高达 5V 的阵列电压和高达 20mA 的电流，用途广泛。四个通道的额定读取循环时间为 5 毫秒，这意味着这是转换模拟信号的快速有效方法。该模块无噪声和排放，可改善您的工作环境。

特性和优势

• 提供 24 位的模拟/数字转换能力，适用于大多数工业自动化应用

• 内部转换电阻器精确度达 0.1% – 15ppm/°C，可确保高转换容量

• 可持续选择，77% 的组件完全可回收

• 与 M340 系列轻松集成的设计

应用

• 工业自动化

• 汽车装配线

• 电子制造

☆型号：BMXAMI0410  4 U/I 隔离高速模拟 I/O 模块 支持高电平模拟输入

【英文介绍】

Part number BMXAMI0410

Manufacturer Schneider Electric

Type I/O module

Type # BMX -AMI-0410

Guaranteed for 2 years

Range Modecon X80

Design simulation input

Connection 20/1 connection

Analog input 4 Input

Analog/digital conversion 24-bit

Analog input resolution 16 bits

Internal conversion resistance 0.1 % -15 ppm/°C

join

The electrical connection of the BMXAMI0410 module is made through a 20-way connector. Each input channel is isolated, ensuring reliable and accurate signal transmission. The module supports high-level analog inputs with current ranges of 0 to 20 mA and 4 to 20 mA, and voltage ranges of ±10 V, ±5 V, 0 to 10 V, 0 to 5 V, and 1 to 5 V.

trait

The module integrates a 24-bit analog-to-digital converter that provides high-resolution conversion for accurate measurement of analog signals. The analog input resolution is 16 bits, which accurately represents the input value. It also offers internal protection resistance and input impedance specifications to ensure signal integrity and overload protection.

To optimize signal quality, the BMXAMI0410 module features first-order digital filtering and provides fast read cycle times as low as 1 ms per channel. The nominal read cycle time for all four channels is 5 ms. This enables efficient data acquisition and processing in time-sensitive applications.

The module offers excellent measurement accuracy in the temperature range 0 to 60 °C, with an error of less than 0.1% of full scale for various input ranges such as ±10 V, ±5 V, 0 to 10 V, 0 to 5 V, 0 to 20 mA and 4 to 20 mA. It offers a precision internal conversion resistance with a drift of 15 ppm/°C.

Calibration of modules can be performed in-house, simplifying maintenance and reducing downtime. It provides a minimum crosstalk attenuation of 80 dB, ensuring minimal interference between channels. The module also provides high common-mode rejection and a wide range of digital value formats for flexible data representation.


Product technical data

Modicon M340 Parts ListM340 Series Product Brochure

Datasheet0147988_Catalogue_en

Product Environmental Profile

Legislation and compliance

Conform to

Declaration of conformity

Product Details

Schneider Electric PLC input/output module, suitable for use with the Modicon M340 series, 24V DC rated, 4 inputs - BMXAMI0410

Are you looking for a PLC input/output module for your system to quickly convert analog signals? Choose this eco-friendly product from Schneider Electric. It has 4 analog signal inputs for array voltages up to 5V and currents up to 20mA, making it versatile. The four channels have a rated read cycle time of 5 milliseconds, which means this is a fast and efficient way to convert analog signals. The module is noise - and emission-free to improve your working environment.

Characteristics and advantages

• Provides 24-bit analog/digital conversion capability for most industrial automation applications

• Internal conversion resistors with an accuracy of 0.1% - 15ppm/°C ensure high conversion capacity

• Sustainable option, 77% of components are fully recyclable

• Easy integration with the M340 family design

Apply

• Industrial automation

• Automobile assembly line

• Electronics manufacturing
