IC697ALG320D 可编程逻辑控制器 实现电流输出

☆型号：IC697ALG320D 可编程逻辑控制器 实现电流输出

【产品详情】

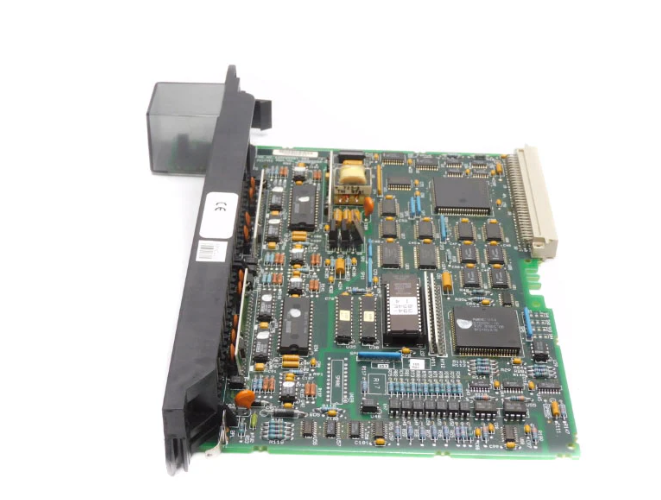

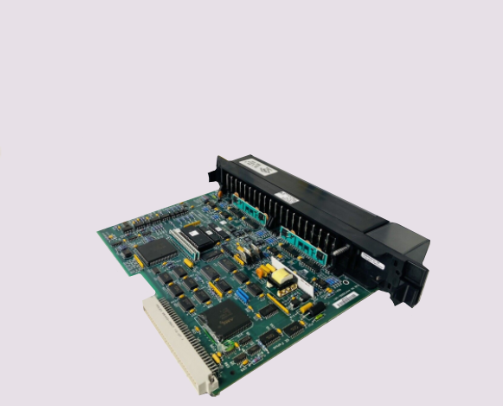

该IC697ALG320是 90-70 系列可编程逻辑控制器 （PLC） 的高级模拟输出模块，以前由 GE Fanuc 制造，而不是由艾默生自动化制造。该模块设计用于占用 5 插槽或 10 插槽基板的单个插槽，并在 5VDC 时从背板汲取最大 1.66A （8.3 W） 的电流，从用户电源汲取 150 mA 的电流，以实现电流输出。该IC697ALG320带有四 （4） 个单独配置的输出通道，专门生成电压和电流输出，即 0-20 mA / 4-20 mA 电流输出信号和 -10VDC / +10 VDC 电压输出信号。它内置数模转换器 （DAC） 电路，分辨率为 16 位，具有单调性，电压为 312.5 微伏/LSB 步进，4 至 20 mA 时每 LSB 步进为 0.5 微安。对于所有模拟输出通道，其最大顺序转换速率为2.0 ms。该模块在出厂时使用与模块的 EEPROM 一起存储的校准数据进行校准。它还具有连续短路功能，不会造成伤害，一旦故障得到解决，输出会自动恢复正常状态。模拟输出负载规格包括电阻负载的最小 2000 ms 和容性负载的最大 1000 pfarads（配置为电压操作）。对于电流操作，电阻负载的输出负载规格高达 700 欧姆;容性负载最大为 1.0 微法拉，感性负载最大为 250 miliHenry。该模块的精度受特定温度系数的影响，电压为25 ppm/摄氏度，电流为50 ppm/摄氏度。

IC697ALG320模拟量输出模块是GE Fanuc公司制造的4通道模拟量输出模块。该模块的 4 个输出可单独配置为电压或电流操作。它提供双极性或单极性输出，分辨率为 16 位，单调性为 14 位。输出的更新速率为 2 毫秒。它在 +5 伏电压下消耗的最大功率为 1.66 安培（8.3 瓦），推荐工作电压tage 此输出模块为 24 伏直流电。该模块的一些特性包括快速更新速率、可单独配置的输出通道（具有单独的用户缩放）、工厂校准和隔离输出电路。IC697ALG320 模拟输出模块还提供超量程和欠量程检测、开路检测、配置错误检测和模块健康检测等诊断功能。

☆型号：IC697ALG320D 可编程逻辑控制器 实现电流输出

【英文介绍】

The IC697ALG320 is an advanced analog output module for the 90-70 series programmable logic controllers (PLCS) and was previously manufactured by GE Fanuc, not by Emerson Automation. The module is designed to occupy A single slot on a 5 - or 10-slot substrate and draws a maximum current of 1.66A (8.3 W) from the backplane at 5VDC and 150 mA from the user's power supply to achieve current output. The IC697ALG320 has four (4) individually configured output channels specifically designed to generate voltage and current outputs, namely 0-20 mA / 4-20 mA current output signals and -10VDC / + 10VDC voltage output signals. It has a built-in digital-to-analog converter (DAC) circuit with 16-bit resolution, monotonality, and a voltage of 312.5 microvolts /LSB step, with 0.5 microamps per LSB step at 4 to 20 mA. For all analog output channels, the maximum sequential conversion rate is 2.0 ms. The module is calibrated at the factory using calibration data stored with the module's EEPROM. It also has a continuous short-circuit function, which does not cause harm, and once the fault is resolved, the output will automatically return to normal state. Analog output load specifications include a minimum of 2000 ms for resistive loads and a maximum of 1000 pfarads for capacitive loads (configured for voltage operation). For current operation, resistive loads have output load specifications up to 700 ohms; The capacitive load is up to 1.0 microfarad and the inductive load is up to 250 miliHenry. The accuracy of the module is affected by a specific temperature coefficient, with a voltage of 25 ppm/ C and a current of 50 ppm/ C.

The IC697ALG320 analog output module is a 4-channel analog output module manufactured by GE Fanuc. The module's four outputs can be individually configured for voltage or current operation. It provides a bipolar or unipolar output with 16-bit resolution and 14-bit monotonicity. The update rate of the output is 2 milliseconds. It consumes a maximum power of 1.66 amps (8.3 Watts) at +5 volts, recommended operating voltage tage This output module is 24 volts DC. Some of the features of the module include fast update rates, individually configurable output channels with separate user scaling, factory calibration, and isolated output circuits. The IC697ALG320 analog output module also provides diagnostic functions such as overrange and underrange detection, open circuit detection, configuration error detection, and module health detection.
