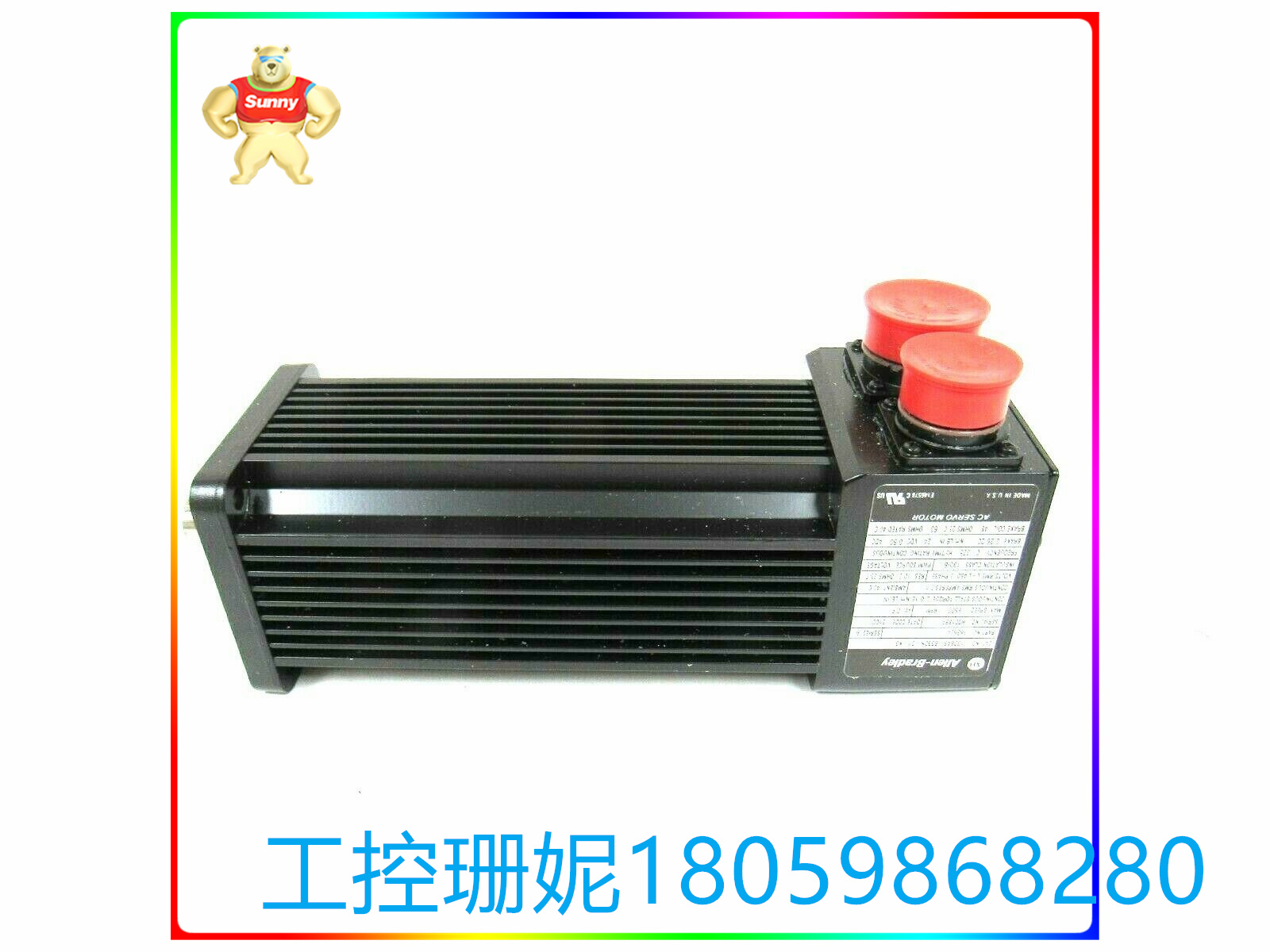

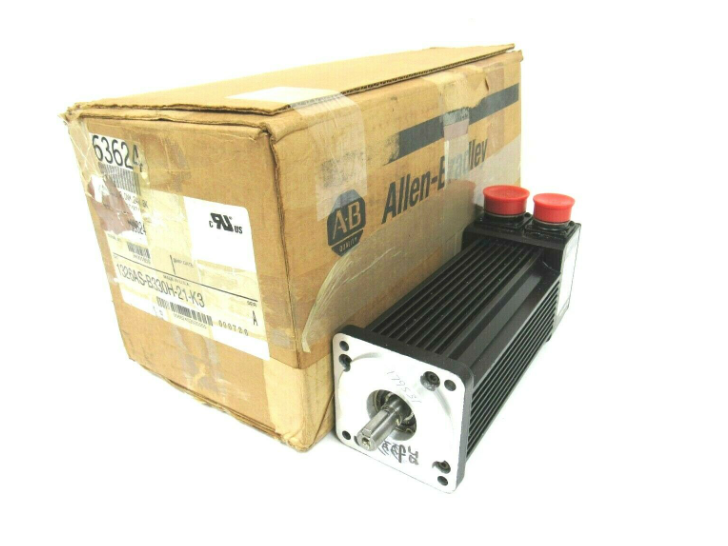

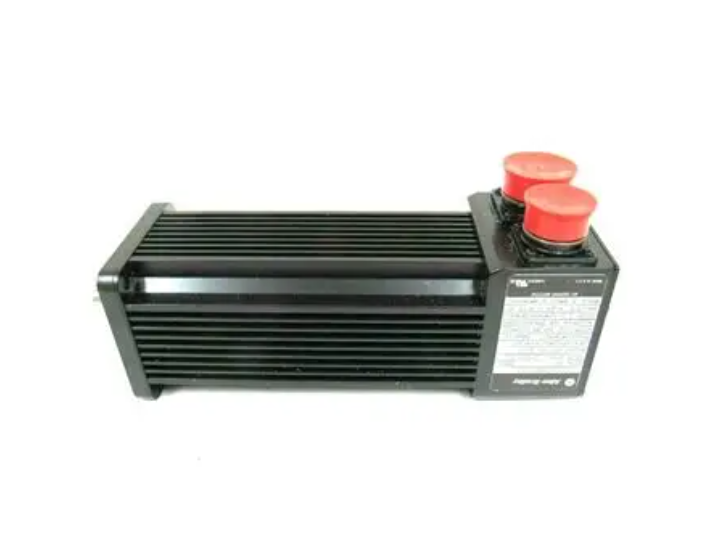

☆型号:1326AS-B330H-21 低惯量伺服电机 运动控制系统
【产品详情】
Allen Bradley 1326AS-B330H-21 低惯量伺服电机是一款采用钕铁硼永磁转子的无刷交流同步伺服电机,可在一个紧凑的单元中提供低电机惯量、高峰值扭矩和高加速度。该伺服电机设计用于 Allen Bradley 1394 运动控制系统,它采用正弦绕线定子,即使在低速时也能提供平稳的电机运行,以及 TENV 构建的 IP66 级外壳,适用于恶劣的工业环境。1326AS-B330H-21 的三相额定输入电压为 460 伏交流电,额定输出功率为 0.9 kW,连续失速电流为 2.1 安培,峰值失速电流为 6.0 安培。该伺服电机在 5370 伏输入下的额定转子转速为 360 RPM,在 460 伏额定电机输入下的最大转子转速为 6500 RPM。额定电机扭矩为2.0N-m(18.0磅/英寸),峰值系统扭矩为5.6N-m(50磅/英寸),额定转子惯量为0.00009 Kg-m2(0.0008磅/英寸/秒)。
1326AS-B330H-21 的机械时间为 1.3 毫秒,恒定温度为 40 摄氏度,电气时间常数为 2.4 毫秒,热时间常数为 21 分钟,采用 B 级隔热。该伺服电机具有每 1000 RPM 36 伏的绕组电压常数,具有 10.2 欧姆的额定绕组电阻和 24.3 毫亨利额定绕组电感。1326AS-B330H-21 与该系列中的所有低惯量伺服电机一样,具有 2 极坚固耐用的无刷旋转变压器,可提供精确的位置反馈,并产生高达 1024 ppr(4096 计数/转)A Quad B 编码器输出,因此无需额外的板载电子设备。该伺服器的定子直径为 75 毫米,磁铁堆叠长度为 30 毫米,并设计有键槽和 IEC 公制法兰安装选项。它的功能温度范围为 0 至 40 摄氏度(32 至 104 华氏度),非冷凝 5% 至 95% 的相对湿度范围,并储存在 -30 至 70 摄氏度(-22 至 158 华氏度)范围内。该 1326AS-B330H-21 的净重为 11.2千克,安装体积为 246 x 89.5 x 93.0 毫米。
☆型号:1326AS-B330H-21 低惯量伺服电机 运动控制系统
【英文介绍】
The Allen Bradley 1326AS-B330H-21 Low Inertia servo motor is a brushless AC synchronous servo motor with NdFeb permanent magnet rotor that delivers low motor inertia, peak torque and high acceleration in a compact unit. Designed for use in the Allen Bradley 1394 motion control system, the servo motor features a sinusoidal wound stator that provides smooth motor operation even at low speeds, as well as an IP66-rated housing built by TENV for harsh industrial environments. The 1326AS-B330H-21 has a three-phase rated input voltage of 460 volts AC, a rated output power of 0.9 kW, a continuous stall current of 2.1 amps, and a peak stall current of 6.0 amps. The servo motor has a rated rotor speed of 360 RPM at 5370 volts input and a maximum rotor speed of 6500 RPM at 460 volts rated motor input. The rated motor torque is 2.0N-m (18.0 lb/in), the peak system torque is 5.6N-m (50 lb/in), and the rated rotor inertia is 0.00009 Kg-m2 (0.0008 lb/in/s).
The 1326AS-B330H-21 has a mechanical time of 1.3 ms, a constant temperature of 40 degrees Celsius, an electrical time constant of 2.4 ms, and a thermal time constant of 21 minutes, with Class B insulation. The servo motor has a winding voltage constant of 36 volts per 1000 RPM, a rated winding resistance of 10.2 ohms and a rated winding inductance of 24.3 mill-Henry. The 1326AS-B330H-21, like all low-inertia servo motors in the family, features 2 extremely rugged brushless rotary transformers that provide precise position feedback and produce up to 1024 ppr (4096 counts/RPM) A Quad B encoder output, so no additional onboard electronics are required. The server has a stator diameter of 75 mm, a magnet stack length of 30 mm, and is designed with keyway and IEC metric flange mounting options. It has a functional temperature range of 0 to 40 degrees Celsius (32 to 104 degrees Fahrenheit), a non-condensing relative humidity range of 5% to 95%, and is stored in the range of -30 to 70 degrees Celsius (-22 to 158 degrees Fahrenheit). The 1326AS-B330H-21 has a net weight of 11.2 kg and an installed volume of 246 x 89.5 x 93.0 mm.
☆型号:1326AS-B330H-21 低惯量伺服电机 运动控制系统
