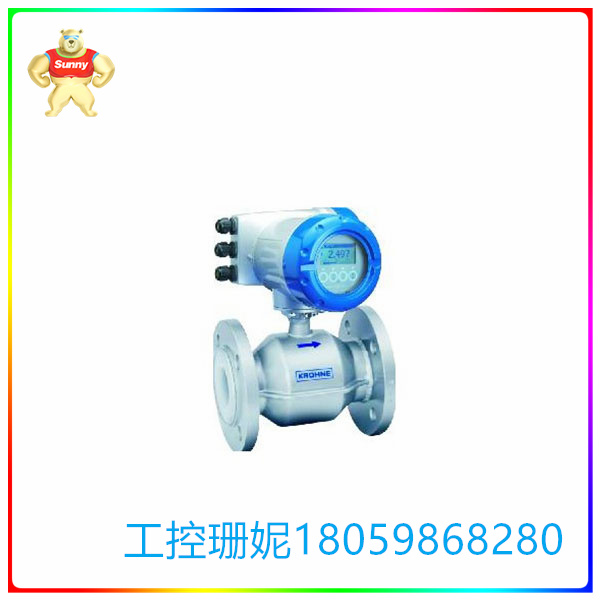

☆型号：OPTIFLUX4300F 电磁流量计 适用于高级过程和贸易交接应用
【产品详情】
OPTIFLUX 4300 （奥蒂通）
电磁流量计，适用于高级过程和贸易交接 （CT） 应用
高精度 （±0.2%），经认证可进行贸易交接
适用于低电导率 （>1 μS/cm） 和高固体含量 （≤70%） 的介质
法兰：DN2.5...3000 / ⅒...120“，最大 PN40 / ASME Cl 600
3 x 4...20 mA、HART、Modbus、FF、Profibus-PA/DP、PROFINET®
OPTIFLUX 4300 是一款电磁流量计 （EMF），适用于腐蚀性液体或研磨性介质的高级过程应用。高端流量计特别适用于需要高精度和多种诊断功能的关键应用。即使在温度高达 +180°C / +356°F、低电导率 （≥1 μS/cm）、高固体含量（高达 70%）和高压（高达 1500 bar / 21751 psi）等非常恶劣的工艺条件下，它也能实现可靠的测量。对于贸易交接应用，OPTIFLUX 4300 具有广泛的认证，包括 OIML R49 和 R117 或 MI-001 和 MI-005。它还可用于需要 MI-004 认证的区域供热网络的流量测量。
宽动态范围内的双向流量测量（量程比：1000：1）
提供虚拟参考接地方法：无需接地环
广泛的流量计和过程诊断（包括 NE 107）
适用于危险区域：ATEX、IECEx、NEPSI、FM、CSA、EAC、INMETRO
标准测量精度：测量值（MV）的±0.2%或±1mm/s）
用于贸易交接：OIML R49、OIML R-117;MI-001、MI-004、MI-005
PTFE、PFA、ETFE、硬质橡胶、软质橡胶或PU衬里：优异的耐化学性和耐磨性
电极材料种类繁多
可根据要求提供特殊设计、尺寸、内径和衬垫厚度
用于海上或底土安装的可选外部涂层（也符合 ISO 12944）
全通径设计：无运动部件、无磨损、无压力损失
使用OPTICHECK服务工具对流量计进行现场验证

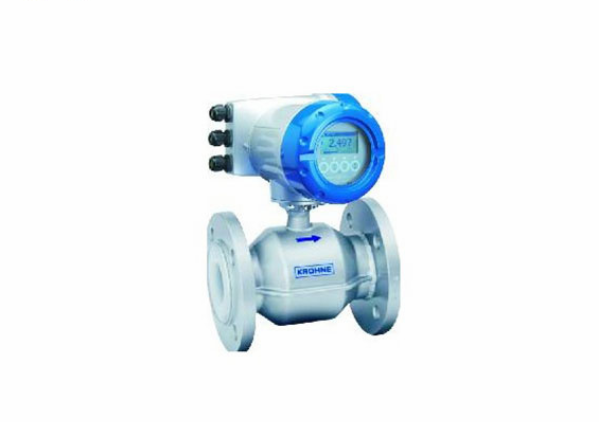

☆型号：OPTIFLUX4300F 电磁流量计 适用于高级过程和贸易交接应用
【英文介绍】
OPTIFLUX 4300 (Otithon)
Electromagnetic flowmeters for advanced process and trade transition (CT) applications
High precision (±0.2%), certified for trade handover
Suitable for medium with low conductivity (> 1μS /cm) and high solid content (≤70%)
Flange: DN2.5... 3000 / ⅒... 120 ", Max PN40 / ASME Cl 600
3 x 4... 20 mA, HART, Modbus, FF, Profibus-PA/DP, PROFINET®
The OPTIFLUX 4300 is an electromagnetic flowmeter (EMF) for advanced process applications with aggressive liquids or abrasive media. High-end flowmeters are especially suited for critical applications that require high accuracy and multiple diagnostic functions. It delivers reliable measurements even under very harsh process conditions such as temperatures up to +180°C / +356°F, low conductivity (≥1 μS/cm), high solids content (up to 70%) and high pressures (up to 1500 bar / 21,751 psi). For trade handover applications, OPTIFLUX 4300 has a wide range of certifications including OIML R49 and R117 or MI-001 and MI-005. It can also be used for flow measurement in district heating networks that require MI-004 certification.
Bidirectional flow measurement over a wide dynamic range (range ratio: 1000:1)
Virtual reference grounding method: No grounding ring is required
Extensive flow meter and process diagnostics (including NE 107)
Suitable for hazardous areas: ATEX, IECEx, NEPSI, FM, CSA, EAC, INMETRO
Standard measurement accuracy: ±0.2% of the measured value (MV) or ±1mm/s)
For trade transfer: OIML R49, OIML R-117; MI-001, MI-004, MI-005
PTFE, PFA, ETFE, hard rubber, soft rubber or PU linings: Excellent chemical and wear resistance
Electrode materials are varied
Special designs, dimensions, bore diameter and packing thickness are available upon request
Optional external coating for offshore or subsoil installation (also ISO 12944 compliant)
Full diameter design: no moving parts, no wear, no pressure loss
Field verification of flowmeters using OPTICHECK service tool
