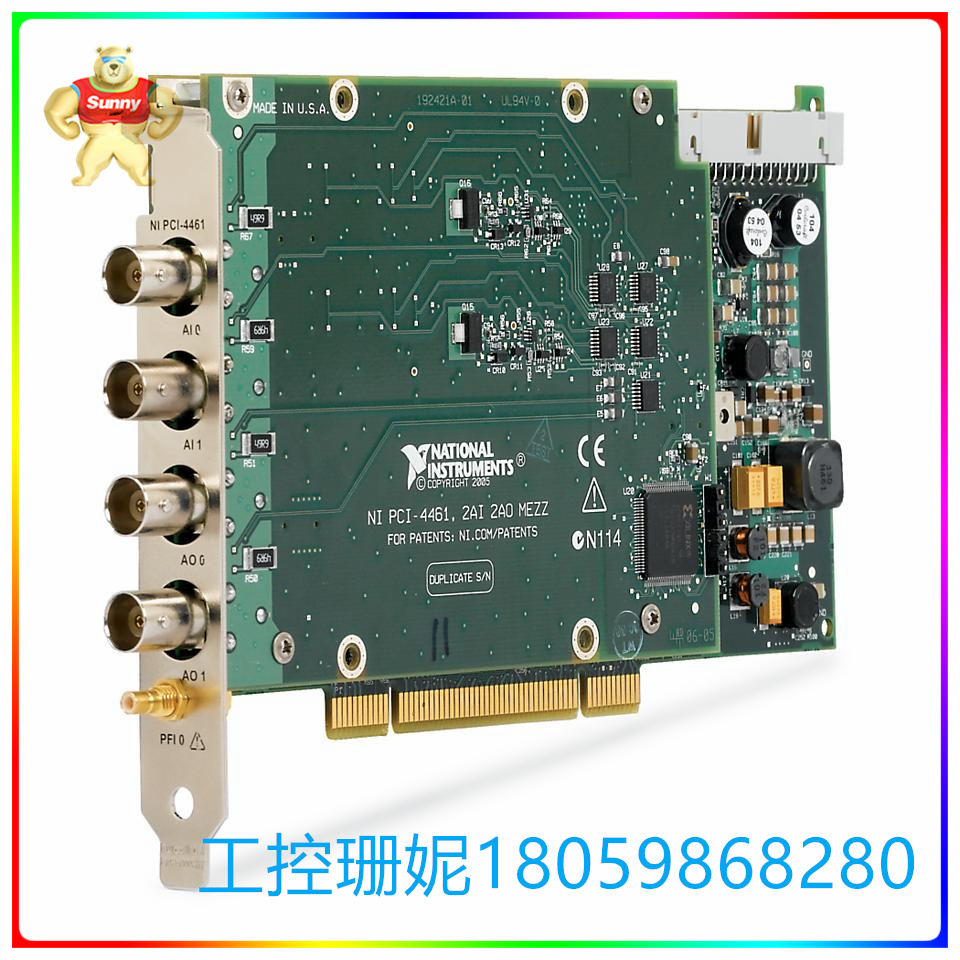

PCI-4461 高精度数据采集模块 具有双通道同步动态信号生成

☆型号：PCI-4461 高精度数据采集模块 具有双通道同步动态信号生成

【产品详情】

PCI-4461是一款专为声音和振动应用而设计的高精度数据采集模块，具有双通道同步动态信号生成和双通道同步动态信号采集功能。以下是关于PCI-4461双输入/双输出声音与振动设备的一些详细信息：

204.8 kS/s，118 dB，3.4 Hz交流/直流耦合，双输入/双输出声音与振动设备

PCI‑4461是专为声音和振动应用而设计的高精度数据采集模块。 它提供了双通道同步动态信号生成和双通道同步动态信号采集功能以及六个增益设置来配置输入范围。 PCI‑4461还包含软件可配置的AC/DC耦合和集成电子压电(IEPE)调理，以确保能够使用麦克风、加速度计和其他具有非常大动态范围的传感器进行精确的测量。 常见的应用包括音频测试；汽车测试；噪声、振动和声振粗糙度(NVH)分析；和机器状态监测。

输入/输出通道：该设备具有双通道同步输入和双通道同步输出功能，可以同时采集和生成声音和振动信号。

采样率：PCI-4461的采样率为204.8 kS/s，能够提供高精度的数据采集。

分辨率：该设备的分辨率高达118 dB，能够实现高精度的声音和振动测量。

输入范围：PCI-4461提供了六个增益设置来配置输入范围，以适应不同的信号电平。

同步功能：该设备支持双通道同步动态信号生成和采集，能够实现准确的信号同步和时间标记。

软件可配置：PCI-4461具有软件可配置的AC/DC耦合和集成电子压电(IEPE)调理，方便用户根据需要进行配置。

应用领域：PCI-4461适用于各种声音和振动测试与测量应用，包括音频测试、汽车测试、噪声、振动和声振粗糙度(NVH)分析以及机器状态监测等。

总之，PCI-4461双输入/双输出声音与振动设备是一款高性能的数据采集模块，适用于各种需要进行高精度声音和振动测量的应用。如需更多信息，建议访问制造商官网或咨询相关业内人士。

☆型号：PCI-4461 高精度数据采集模块 具有双通道同步动态信号生成

【英文介绍】

PCI-4461 is a high-precision data acquisition module designed for sound and vibration applications with dual channel synchronous dynamic signal generation and dual channel synchronous dynamic signal acquisition. Here are some details about the PCI-4461 dual input/dual output sound and vibration devices:

204.8 kS/s, 118 dB, 3.4 Hz AC/DC coupling, dual input/dual output sound and vibration equipment

PCI‑4461 is a high-precision data acquisition module designed for sound and vibration applications. It provides dual channel synchronous dynamic signal generation and dual channel synchronous dynamic signal acquisition capabilities as well as six gain Settings to configure the input range. PCI‑4461 also includes software-configurable AC/DC coupling and Integrated Electronic Piezoelectricity (IEPE) conditioning to ensure accurate measurements using microphones, accelerometers, and other sensors with very large dynamic ranges. Common applications include audio testing; Automobile testing; Noise, vibration and sound roughness (NVH) analysis; And machine condition monitoring.

Input/output channels: The device has dual channel synchronous input and dual channel synchronous output functions, which can simultaneously collect and generate sound and vibration signals.

Sampling rate: The PCI-4461 has a sampling rate of 204.8 kS/s, which provides highly accurate data acquisition.

Resolution: The device has a resolution of up to 118 dB, enabling highly accurate sound and vibration measurements.

Input range: The PCI-4461 provides six gain Settings to configure the input range to accommodate different signal levels.

Synchronization function: The device supports dual-channel synchronous dynamic signal generation and acquisition, and can achieve accurate signal synchronization and time marking.

Software configurable: The PCI-4461 features software-configurable AC/DC coupling and Integrated Electronic Piezoelectricity (IEPE) conditioning for easy configuration as required.

Applications: The PCI-4461 is suitable for a variety of sound and vibration test and measurement applications, including audio testing, automotive testing, noise, vibration and sound roughness (NVH) analysis, and machine condition monitoring.

In summary, the PCI-4461 Dual input/Dual output Sound and Vibration device is a high-performance data acquisition module for a variety of applications requiring high-precision sound and vibration measurements. For more information, it is recommended to visit the manufacturer's website or consult relevant industry insiders.

☆型号：PCI-4461 高精度数据采集模块 具有双通道同步动态信号生成
