☆型号：PCI-6251 多功能 I/O 模块 同时使用多个通道运行
【产品详情】

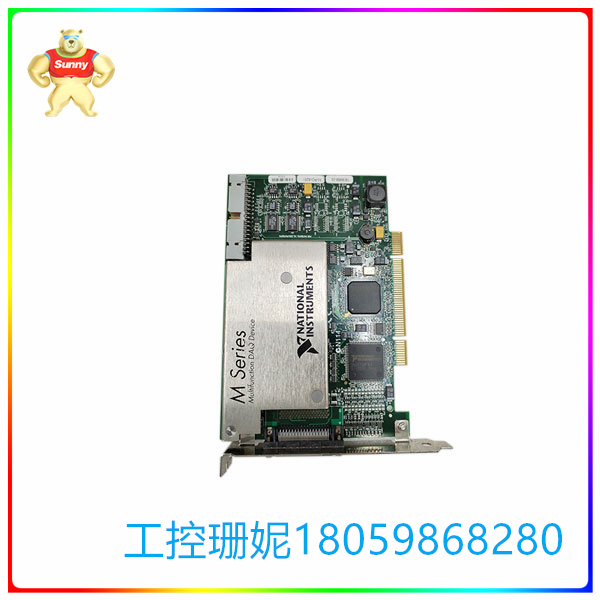

National Instruments PCI-6251 多功能 DAQ 板
National Instruments PCI-6251（部件号：779070-01）是一款16位分辨率、高速多功能DAQ板。该型号在单通道约 1.25 MS/s 和每秒 1 MS 的快速采样率下提供卓越的精度，同时使用多个通道运行。PCI-6251 支持模拟和数字触发，并带有大约 70 个信号调理选项。除了基本功能外，该模型还提供高级功能。它 具有 一个 集成 的 NI- PGIA 2 放大器， 可在 高 扫描 速率 下 工作， 从而 确保 16 位 精度， 即使在 以 最大 可实现 的 速度 测量 所有 可用 通道 时 也 如此 准确 。该器件配备 16 个单端或 8 个差分输入通道、2 个输出通道和 24 个双向通道。
NI PCI-6251 支持 NI- DAQmx Base、 测量 硬件 DDK 和 NI- DAQmx ， 可 与 多种 操作 系统 合作。仪器ADE的运行也需要应用开发环境（ADE），如LabVIEW、LabWindows/CVI、Measurement Studio、Microsoft Visual Studio。可以使用Measurement & Automation Explorer （MAX）工具配置设备软件。对于 各种 测试 应用， 用户 可以 利用 PCI-6251 的 10 MHz 数字 线路 和 高速 模拟 输入 和 NI 信号 调理。这种组合也可用于传感器测量和组件表征。该 设备 完全 兼容 NI SCXI 和 SCC 信号 调理 平台， 使 用户 能够 实现 几乎所有 类型 传感器 的 所需 滤波 和 放大。
对于执行器和继电器控制，NI PCI-6251 的数字线路可以驱动 24 mA。使用此型号，用户还可以为数字线路提供高达10 MHz的时钟。因此，该器件是控制电机、风扇、泵、阀门和灯的脉宽调制的完美解决方案。此外，可用的 6 个 DMA 通道和 2 个 80 MHz 计数器/定时器可以同时处理多个控制环路。该设备的重量为 5.2 盎司，尺寸：15.5 x 9.7 厘米.
☆型号：PCI-6251 多功能 I/O 模块 同时使用多个通道运行
【英文介绍】
National Instruments PCI-6251 Multi-function DAQ board
The National Instruments PCI-6251 (Part number: 779070-01) is a 16-bit resolution, high-speed, versatile DAQ board. This model provides excellent accuracy at a fast sampling rate of approximately 1.25 MS/s in a single channel and 1 MS per second, while operating with multiple channels. The PCI-6251 supports analog and digital triggering and comes with approximately 70 signal conditioning options. In addition to the basic functionality, the model provides advanced functionality. It features an integrated NI-PGIA 2 amplifier that operates at high scan rates, thus ensuring 16-bit accuracy even when measuring all available channels at the maximum achievable speed. The device is equipped with 16 single-ended or 8 differential input channels, 2 output channels, and 24 bidirectional channels.
The NI PCI-6251 supports Ni-DAQMX Base, measurement hardware DDK, and Ni-DAQMX, and works with a variety of operating systems. The operation of the instrument ADE also requires an application development environment (ADE), such as LabVIEW, LabWindows/CVI, Measurement Studio, Microsoft Visual Studio. Device software can be configured using the Measurement & Automation Explorer (MAX) tool. For a variety of test applications, users can take advantage of the PCI-6251's 10 MHz digital line and high-speed analog input and NI signal conditioning. This combination can also be used for sensor measurement and component characterization. The device is fully compatible with NI SCXI and SCC signal conditioning platforms, enabling users to achieve the desired filtering and amplification for almost any type of sensor.
For actuator and relay control, the NI PCI-6251's digital circuitry can drive 24 mA. With this model, users can also provide clocks up to 10 MHz for digital lines. As a result, the device is the perfect solution for controlling pulse width modulation of motors, fans, pumps, valves and lamps. In addition, the available six DMA channels and two 80 MHz counters/timers can handle multiple control loops simultaneously. The device weighs 5.2 ounces and measures 15.5 x 9.7 cm.
