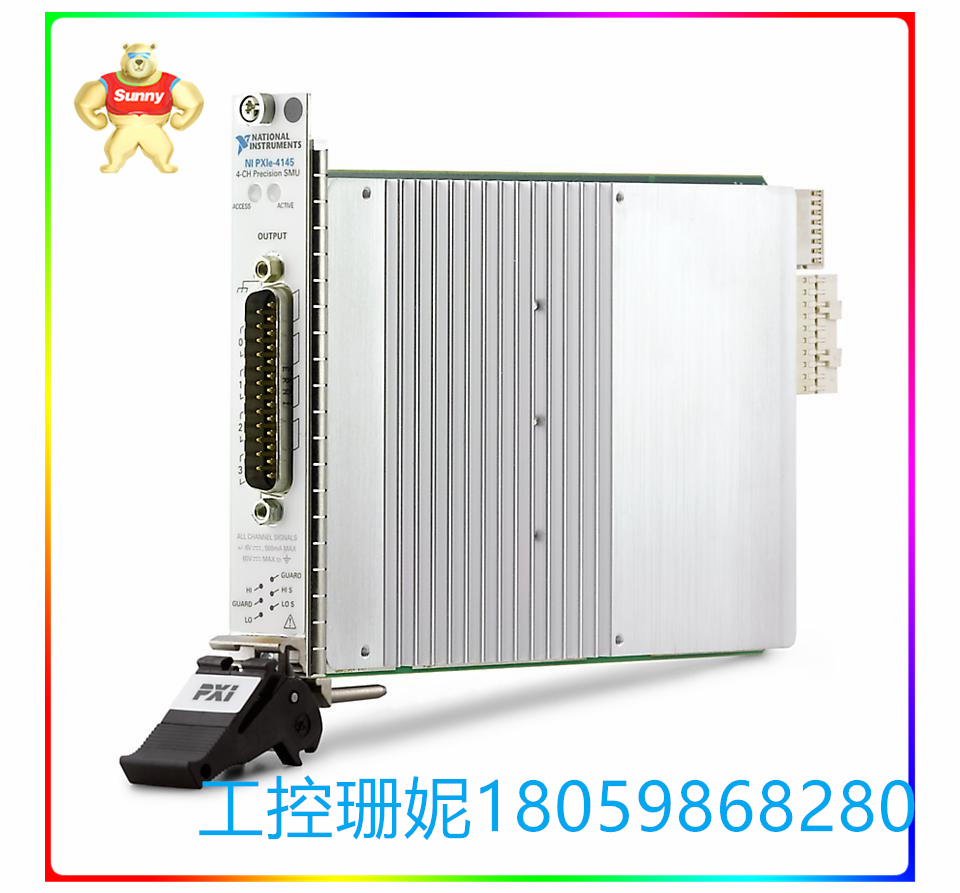

PXIE-4145 源测量单元 SMU  4通道

【产品详情】

产品概述

PXIe-4145是一款4通道源测量单元 (SMU), 非常适合高引脚数应用。具有四象限操作功能, 每条通道均集成远程 (4-线)感测, 确保精确的测量。PXIe-4145提供快速采样率, 缩短测量时间, 捕获瞬态特性, 可以快速表征被测设备 (DUT)的IV特性。带有高速排序引擎, 用户可以同步所有相同的SMU单元, 或者与其他仪器 (例如交换机, 高速数字测试模块)同步。此外, 用户可以使用SourceAdapt技术调节PXIe-4145的响应, 提高稳定性, 并降低瞬变影响。

PXIe-4145是一款4通道源测量单元(SMU)，非常适合高引脚数应用。该模块采用四象限运行模式，每个通道集成了远程（4线）传感功能来实现准确的测量。PXIe-4145的高采样速率有助于缩短测量时间，捕获器件的瞬态特性，可对被测器件(DUT)进行快速IV特性分析。借助高速序列引擎，用户可实现这些SMU之间的同步或与其他仪器（如：开关或高速数字测试模块）的同步。此外，SourceAdapt技术可调整PXIe-4145对任何负载的响应，以获得最佳响应，最大程度提高稳定性和减小瞬态特性。

PXIE-4145 源测量单元 SMU  4通道

【英文介绍】

Product overview

The PXIe-4145 is a 4-channel source measurement unit (SMU) ideal for high pin count applications. With four-quadrant operation, each channel is integrated with remote (4-wire) sensing to ensure accurate measurement. The PXIe-4145 provides fast sampling rates, reduces measurement time, captures transient characteristics, and quickly characterizes IV characteristics of the device under test (DUT). With a high-speed sorting engine, users can synchronize all the same SMU units, or with other instruments (e.g. switches, high-speed digital test modules). In addition, users can adjust the PXIe-4145's response using SourceAdapt technology to improve stability and reduce transient effects.

The PXIe-4145 is a 4-channel source measurement unit (SMU) ideal for high pin count applications. The module operates in a four-quadrant mode, with remote (4-wire) sensing capabilities integrated in each channel for accurate measurements. The high sampling rate of the PXIe-4145 helps to shorten the measurement time, capture the transient characteristics of the device, and enable rapid IV characteristic analysis of the device under test (DUT). With the high-speed sequence engine, users can synchronize these SMUs with each other or with other instruments, such as switches or high-speed digital test modules. In addition, SourceAdapt technology can adjust the PXIe-4145's response to any load to obtain the best response, maximize stability and minimize transient characteristics.

PXIE-4145 源测量单元 SMU  4通道
