PXIe-6124 PXI 多功能 I/ O 模 块

【产品详情】

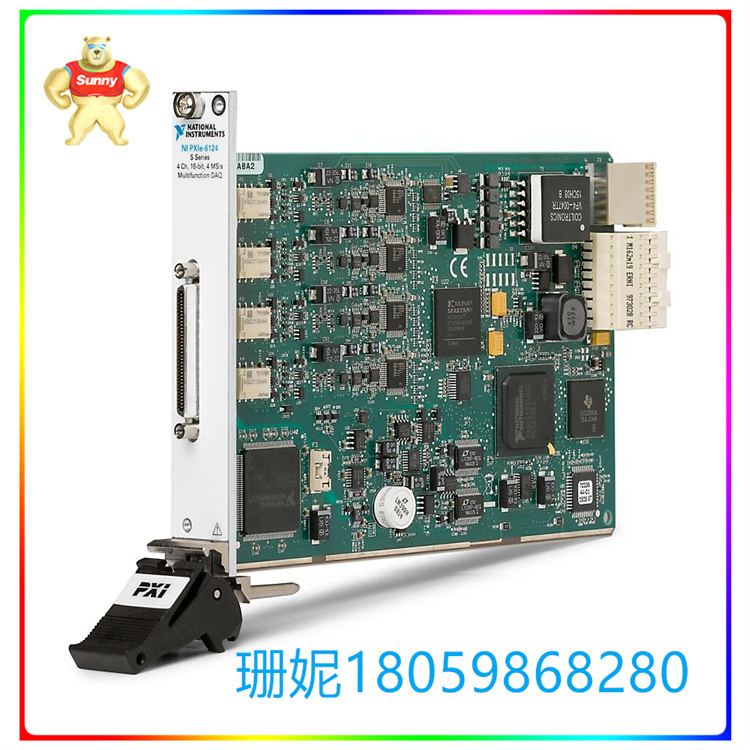

National Instruments PXIe-6124 PXI 多功能 I/ O 模 块

PXIe-6124（部件号：780536-01）是National Instruments的多功能I/O模块。该模块有四个差分模拟输入。NI PXIe-6124 多功能 I/ O 模 块 内 含 一个 16 位 分辨率 的 内 置 ADC。该仪器还提供每通道每秒 4 MS 的采样率。该器件的输入偏置电流± 10 pA 安培。它还实现了输入的直流耦合机制。PXIe-6124 I/ O 模 块 的 通道 间 转换 值 为 5 纳 秒。

NI PXIe-6124 模 块 提供 了 两 个 模拟 输出 电压 通道。一个通道的采样率为每秒 4 MS。两个通道的采样率为每秒 2.5 MS。这些通道的输出电压范围± 10 V。输出阻抗值为 0.4 欧姆。输出电流驱动值为 ± 5 毫安。过驱保护电压范围为 ± 25 伏。它还具有 10 毫安的过驱电流。PXIe-6124 的 压摆率 为 每 微秒 20 V。

NI PXIe-6124 多功能 I/ O 模 块 的 上电 毛刺 值 较低， 为 1.5 V， 持续 10 微秒。它使用户能够同时满足采样和多功能数据采集要求。它还具有 32 位的内置计数器。该模块可用于IF数字化、ISDN、ADSL和POTS测试等应用。这些测试程序是在设备的制造过程中进行的。NI PXIe-6124 还 支持 数字 触发。

PXIe-6124 PXI 多功能 I/ O 模 块

【英文介绍】

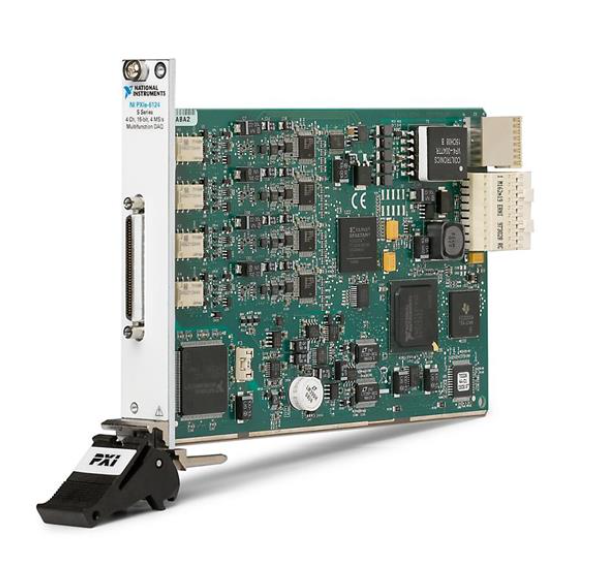

National Instruments PXIe-6124 PXI Multi-function I/ O module

The PXIe-6124 (Part number: 780536-01) is a multi-function I/O module from National Instruments. The module has four differential analog inputs. The NI PXIe-6124 multifunction I/ O module contains a built-in ADC with 16-bit resolution. The instrument also provides a sampling rate of 4 MS per second per channel. The input bias current of the device is ± 10 pA ampere. It also implements the input DC coupling mechanism. The PXIe-6124 I/ O module has an inter-channel conversion value of 5 nanoseconds.

The NI PXIe-6124 module provides two analog output voltage channels. The sample rate for a channel is 4 MS per second. The sampling rate for both channels is 2.5 MS per second. The output voltage range of these channels is ± 10 V. The output impedance value is 0.4 ohms. The output current drive value is ± 5 MA. The overdrive protection voltage range is ± 25 volts. It also has an overdrive current of 10 mA. The PXIe-6124 has a piezoswing rate of 20 V per microsecond.

The NI PXIe-6124 multi-function I/ O module has a low power-on burr value of 1.5 V for 10 microseconds. It enables users to meet both sampling and multifunctional data acquisition requirements. It also has a 32-bit built-in counter. The module can be used for applications such as IF digitization, ISDN, ADSL and POTS testing. These test procedures are carried out during the manufacturing process of the equipment. The NI PXIe-6124 also supports digital triggering.

PXIe-6124 PXI 多功能 I/ O 模 块
