2098-DSD-HV150-SE 数字伺服驱动器 具有集成的 SERCOS 接口

【产品详情】

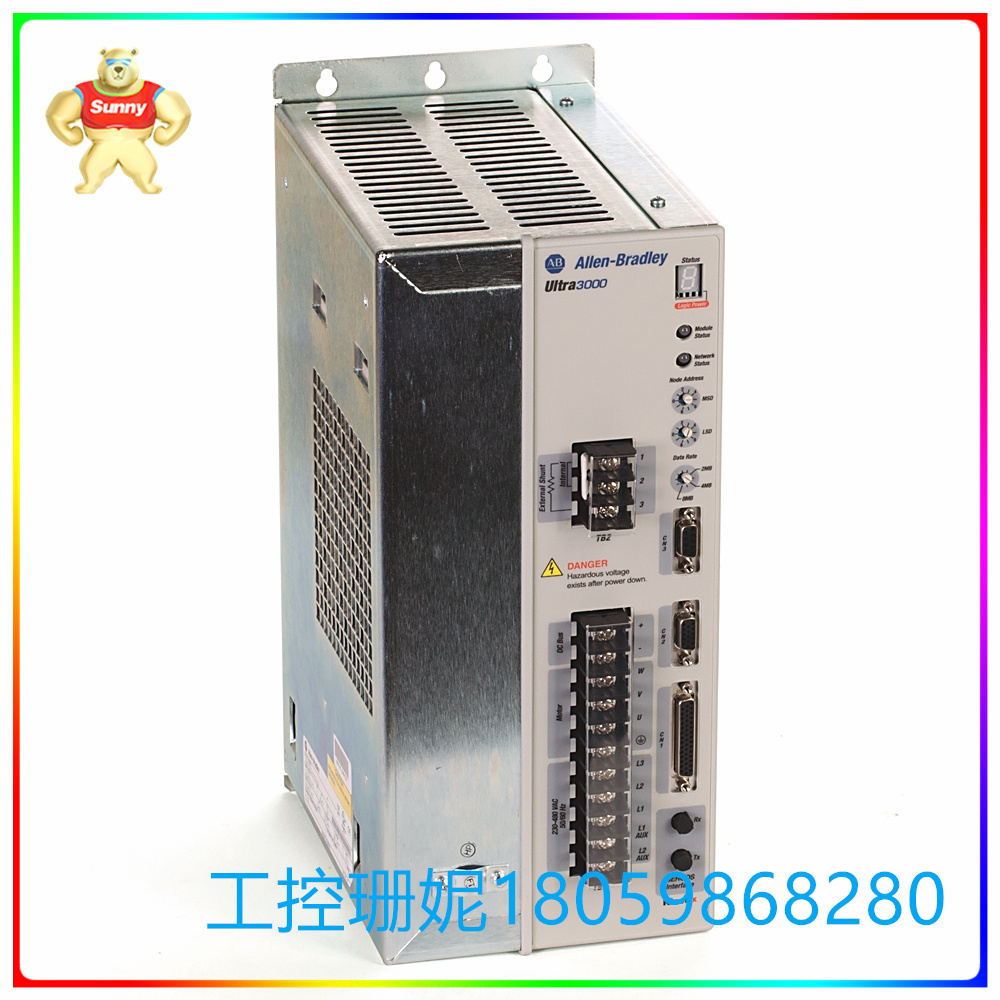

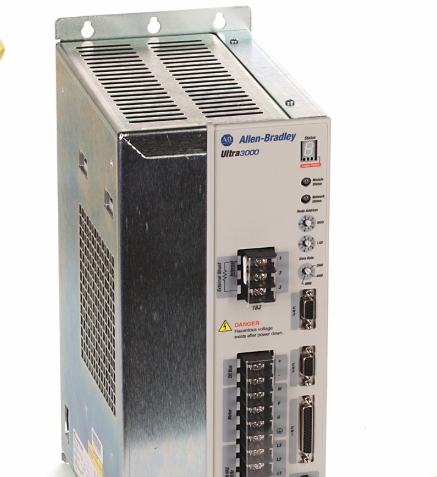

Allen-Bradley 2098-DSD-HV150-SE 属于 Ultra 3000 数字伺服驱动器，具有集成的 SERCOS 接口。该伺服驱动器用于控制电机等执行器的运动和位置，这些执行器安装在制造业中，大部分时间安装在装配区域。

要运行 2098-DSD-HV150-SE，必须为其提供 3 相 230-480VAC rms 的输入电压电源。它能够在 230VAC 时提供 7.5 kW 的输出功率，在 460VAC 时提供 15.0 kW 的输出功率，连续输出电流为 34 A，间歇输出电流为 68 A。

这些接口包括用于有源分流电阻器套件的直流总线连接、交流输入电源连接、电机电源连接（位于单个端子排内）、位于驱动器底部的电机电源电缆屏蔽夹，用于将电缆固定到位并消除线路噪声、支持 RS232 / RS422 和 RS485 通信标准的 CN3 9 针串行端口连接器， CN2 15 针电机反馈连接器用于连接电机反馈，CN1 44 针用于连接输入和输出信号，例如八 （8） 个离散输入、五 （5） 个离散输出，由一 （1） 个继电器和四 （4） 个源输出、两 （2） 个模拟输入和一 （1） 个模拟输出通道组成。

通过驱动器的 SERCO 接口，可以与安装在任何编程工作站的 PCI 卡插槽上安装的 1756 SERCOS 接口模块和 SoftLogix SERCOS 接口的控制器进行通信。

2098-DSD-HV150-SE 数字伺服驱动器 具有集成的 SERCOS 接口

【英文介绍】

Allen-Bradley 2098-DSD-HV150-SE belongs to the Ultra 3000 digital servo drive with integrated SERCOS interface. This servo drive is used to control the motion and position of actuators such as motors, which are installed in the manufacturing industry, most of the time in the assembly area.

To operate the 2098-DSD-HV150-SE, it must be supplied with a 3-phase 230-480VAC rms input voltage supply. It is capable of delivering 7.5kW of output power at 230VAC and 15.0kW at 460VAC with 34 A continuous output and 68 A intermittent output.

These interfaces include DC bus connections for active shunt resistor kits, AC input power connections, motor power connections (located in a single terminal block), motor power cable shielding clips located at the bottom of the driver, CN3 9-pin serial port connector for holding cables in place and eliminating line noise, supporting RS232 / RS422 and RS485 communication standards, CN2 15-pin motor feedback connector for connecting motor feedback, CN1 44-pin for connecting input and output signals, For example, eight (8) discrete inputs, five (5) discrete outputs, consisting of one (1) relay and four (4) source outputs, two (2) analog inputs, and one (1) analog output channel.

Through the SERCO interface of the drive, it is possible to communicate with the controller of the 1756 SERCOS interface module and SoftLogix SERCOS interface installed in the PCI card slot of any programming workstation.

2098-DSD-HV150-SE 数字伺服驱动器 具有集成的 SERCOS 接口
