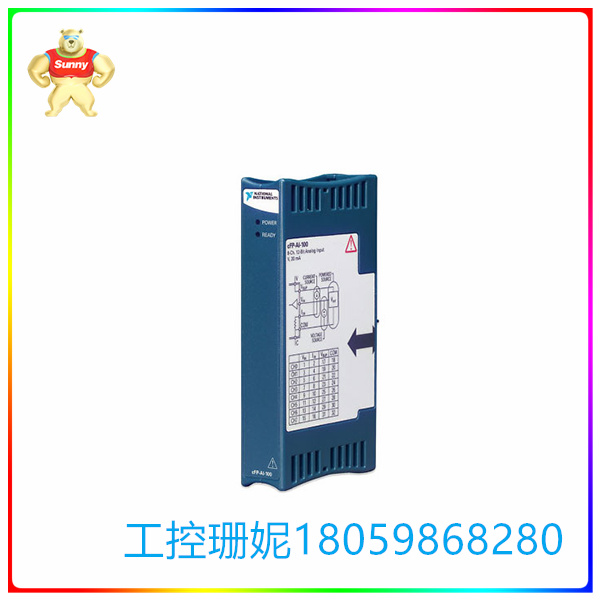

CFP-AI-100 电流输入模块 用于紧凑型FieldPoint

【产品详情】

特征：

8 个电压或电流输入

软件可配置输入范围

HotPnP（即插即用）操作

12 位分辨率

测量毫伏、低压、中压或毫安电流信号

National Instruments cFP-AI-100 是一款用于 Compact FieldPoint 和 FieldPoint 的多功能模拟输入模块。该器件可用于测量从毫伏级到 120 V 高压级的电压，适用于燃料电池测试、电池组监控和传感器的一般测量等应用。cFP-AI-100 还可以测量来自工业传感器和变送器的 0 至 20 或 4 至 20 mA 电流环路。

cFP-AI-100 对板载信号进行测量和线性化，以将缩放值返回给控制或监控软件。该模块包括超量程和板载诊断功能，确保无故障安装和维护。为确保可靠和准确的模拟测量，该模块附带NIST可溯源校准证书。

National Instruments cFP-AI-100（部件号：777318-100）是一款 8 通道、12 位电流和电压模拟输入模块。NI cFP-AI-100 具有 板载 诊断 和 悬 垂 功能， 可 确保 简单 直接 的 安装 和 维护。该模块在信号的板载线性化后测量信号，将缩放值返回给用户的监视或控制应用程序。

该模拟输入模块具有 11 个输入范围，并提供 250 Vrms CAT II 通道对地连续隔离。其 11 个输入范围为：0–1 V、0–5 V、0–15 V、0–30 V、±1 V、±5 V、±15 V、±30 V、0–20 mA、4–20 mA 和 ±20 mA。此外，它还允许 I/O 模块的热插拔。所有 8 个通道共享一个公共接地基准。公共接地参考与安装在 FieldPoint 系统中的其他模块保持隔离。NI cFP-AI-100 可以 测量 各种 来源 的 电流： 0 至 20 mA、 4 至 20 mA 和 ±20 mA。在该模块中，电流流入端子Im，流过一个100Ω电阻，然后通过C或COM端子离开电路。通过 Im 端子进入的电流被读取为正值，而从端子流出的电流被读取为负值。该模型中包含的超量程功能使其能够实现略高于标称值的测量。

NI cFP-AI-100 配备 逐次逼近 的 12 位 ADC（模 数 转换器）。该模拟输入模块在所有通道上提供 360 Hz 更新速率。该模块有两个绿色 LED 指示灯，用于显示设备的电源和就绪状态。还有一个红色指示器作为超出范围指示器提供。

模拟输入模块重 5.1 盎司，尺寸为 4.3 x 4.3 x 3.6 英寸。在物理维度上。NI 设备 的 推荐 工作 和 存储 温度 范围 分别 为 –40 °C 至 70 °C 和 –55 °C 至 85 °C， 非冷凝 相对湿度 范围 为 10 至 90%， 随机 和 正弦 操作 振动 分别 为 5 grms 和 5 g， 所有 工作 频率 范围 均 为 10 Hz 至 500 Hz。

.虽然各个零件的建议校准周期各不相同，但大多数零件应每年或每两年校准一次，以确保准确性。如果您需要校准 cFP-AI-100，Apex Waves 提供了选项。我们通过第三方提供高质量的NIST认证校准，平均周转时间为1至2周。当您向我们订购cFP-AI-100时，您可以要求进行基本的（未经认证的）内部校准，该校准将在发货前根据制造商的规格校准零件。立即致电或发送电子邮件给我们，了解有关校准 cFP-AI-100 的更多信息！

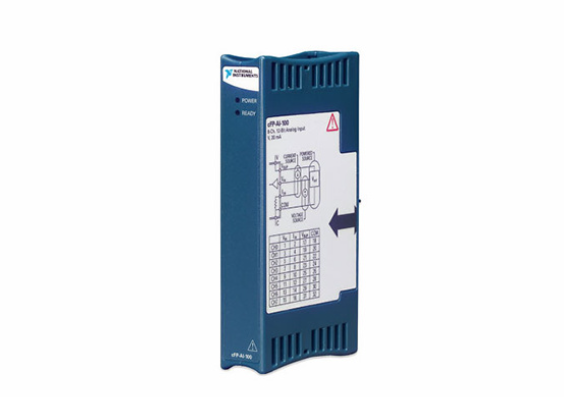

CFP-AI-100 电流输入模块 用于紧凑型FieldPoint

【英文介绍】

Features:

8 voltage or current inputs

The software can configure the input range

HotPnP (Plug and Play) operation

12-bit resolution

Measure millivolt, low, medium or milliampere current signals

The National Instruments cFP-AI-100 is a versatile analog input module for Compact FieldPoint and FieldPoint. The device can be used to measure voltages from the millivolt level to the high voltage level of 120 V and is suitable for applications such as fuel cell testing, battery pack monitoring and general measurement of sensors. The cFP-AI-100 can also measure 0 to 20 or 4 to 20 mA current loops from industrial sensors and transmitters.

The cFP-AI-100 measures and linearizes onboard signals to return scaling values to control or monitoring software. The module includes overrange and onboard diagnostics to ensure trouble-free installation and maintenance. To ensure reliable and accurate analog measurements, the module comes with a NIST traceable calibration certificate.

National Instruments cFP-AI-100 (Part number: 777318-100) is an 8-channel, 12-bit current and voltage analog input module. The NI cFP-AI-100 features onboard diagnostics and suspension functions to ensure simple and straightforward installation and maintenance. The module measures the signal after the on-board linearization of the signal, returning the scaling value to the user's monitoring or control application.

The analog input module has 11 input ranges and provides 250 Vrms CAT II channel continuous isolation to ground. Its 11 input ranges are: 0-1 V, 0-5 V, 0-15 V, 0-30 V, ±1 V, ±5 V, ±15 V, ±30 V, 0-20 mA, 4-20 mA, and ±20 mA. In addition, it allows hot-swappable I/O modules. All eight channels share a common grounding reference. The common ground reference is isolated from other modules installed in the FieldPoint system. The NI cFP-AI-100 can measure currents from a variety of sources: 0 to 20 mA, 4 to 20 mA, and ±20 mA. In this module, the current flows into the terminal Im, flows through a 100Ω resistor, and then leaves the circuit through the C or COM terminal. The incoming current through the Im terminal is read as positive, while the outgoing current from the terminal is read as negative. The over-range features included in the model enable it to achieve measurements slightly higher than the nominal value.

The NI cFP-AI-100 is equipped with a successive approximation 12-bit ADC (analog to digital converter). The analog input module provides a 360 Hz update rate on all channels. The module has two green LED indicators that show the power and readiness status of the device. A red indicator is also provided as an out of range indicator.

The analog input module weighs 5.1 ounces and measures 4.3 x 4.3 x 3.6 inches. In the physical dimension. Recommended operating and storage temperature ranges for NI devices are -40 °C to 70 °C and -55 °C to 85 °C, non-condensing relative humidity ranges of 10 to 90%, random and sinusoidal operating vibrations of 5 grms and 5 g, respectively. All operating frequencies range from 10 Hz to 500 Hz.

While the recommended calibration cycle for individual parts varies, most parts should be calibrated annually or biennially to ensure accuracy. If you need to calibrate the cFP-AI-100, Apex Waves provides the option. We offer high quality NIST certified calibrations through third parties with an average turnaround time of 1 to 2 weeks. When you order a cFP-AI-100 from us, you can request a basic (uncertified) internal calibration, which will calibrate the part according to the manufacturer's specifications before shipping. Call or email us today to learn more about calibrating the cFP-AI-100!
