GPIB-USB-A GPIB 控制器 是一个即插即用的接口

【产品详情】

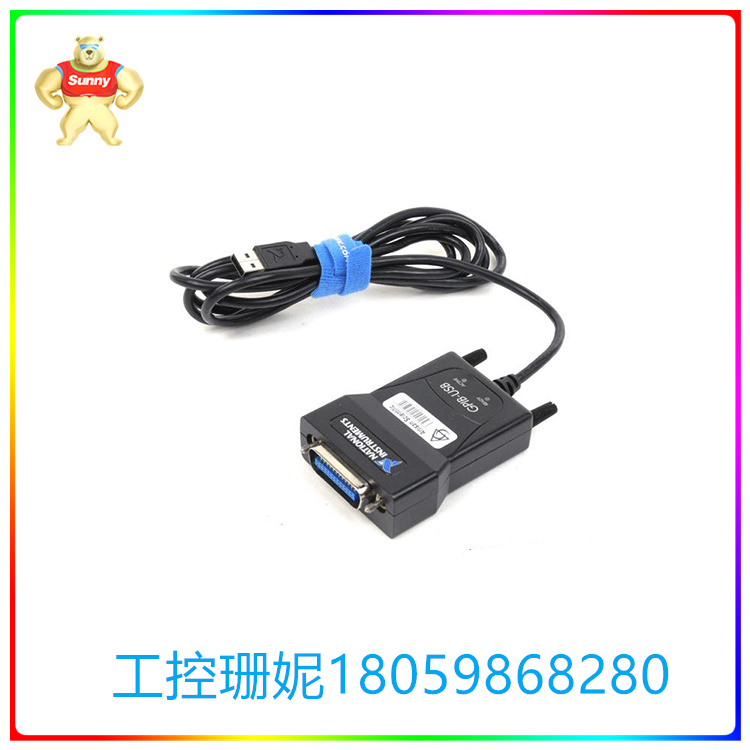

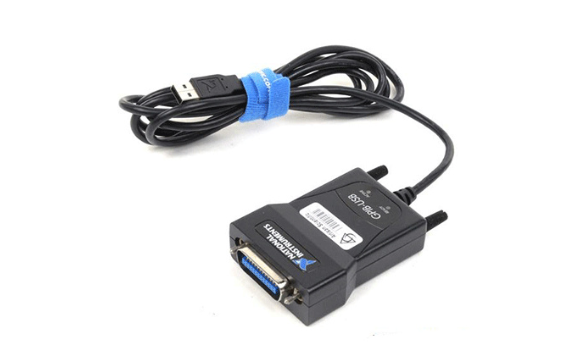

National Instruments GPIB-USB-A GPIB 控制器

特征：

全速 12 Mb/s USB 信号传输

完全兼容 IEEE488.2

传输速率大于 880 KB/s

无需GPIB电缆即可连接到仪器

GPIB-USB-A：650 KB/秒

GPIB-USB-B：850 KB/秒

GPIB-USB-HS：1.8 MB/秒

National Instruments GPIB-USB可将任何带有USB端口的计算机转换为全功能IEEE 488.2控制器。然后，它可以控制多达 14 台可编程 GPIB 仪器。其紧凑性使其成为使用便携式计算机的便携式应用或计算机没有可用内部 I/O 插槽的其他应用的理想选择。GPIB-USB是一个即插即用的接口，只要您将其物理连接到USB端口，操作系统就会自动识别和配置它。

GPIB-USB易于安装和使用，因为没有外部DIP开关，您无需重新启动计算机即可识别IEEE 488.2接口。此控制器适用于 Windows 2000/XP/Me/98 或 Linux 计算机。更具体地说，Linux操作系统或更高版本的NI-488.2不支持GPIB-USB-A。

两种型号之间的差异包括：

- GPIB-USB-B：850 KB/秒 - GPIB-USB-A：650 KB/秒

- GPIB-USB-A不适用于NI-488.2的更高版本 - GPIB-USB-B仅适用于NI-488.2 2.0及更高版本 - GPIB-USB-A为黑色

GPIB-USB-A是一款GPIB控制器，设计用于GPIB设备和具有通用串行总线端口的个人计算机之间的通信。GPIB-USB-A控制器的开发商是National Instruments。 该控制器可以将个人计算机转换为集成了全部功能的IEEE-488.2控制器，以控制任何GPIB设备。IEEE-488 版本 2 控制器可通过 GPIB 接口控制多达 14 个可编程器件。NI GPIB-USB-A 提供 了 简单 的 即 插 即 用 连接， 因此 只要 用户 将 控制器 与 计算机 连接， 操作系统 就 可以 识别 控制器。

GPIB-USB-A在连接时不需要重新启动计算机，确保快速安装。紧凑和小巧的尺寸使该控制器成为便携式应用的绝佳选择。NI GPIB-USB-A 既 可以 与 笔记本电脑 使用 ， 也 可以 与 桌面 应用 程序 一起使用。National Instruments GPIB-USB-A 的数据传输速率为 650 KB/s。最适合此控制器的操作系统是 Windows。推荐用于此控制器的软件包括LabVIEW、LabWindows/CVI和Measurement Studio。NI GPIB-USB-A的兼容驱动程序软件是NI-488.2。该控制器与 USB 1.1 兼容。该控制器配有用于 GPIB 的 IEEE 488 标准 24 针 IEEE-488 I/O 连接器和用于 USB I/O 连接器的 USB 标准 A 系列插头。

GPIB-USB-A控制器的连接简单方便。 National Instruments GPIB-USB-A 连接器的一侧应连接到 GPIB 仪器，而控制器的 USB 侧应连接到用户个人计算机的 USB 端口。

GPIB-USB-A GPIB 控制器 是一个即插即用的接口

【英文介绍】

National Instruments GPIB-USB-A GPIB controller

Features:

Full speed 12 Mb/s USB signal transmission

Fully compatible with IEEE488.2

The transmission rate is greater than 880 KB/s

No GPIB cable is required to connect to the instrument

GPIB-USB-A: 650 KB/ s

GPIB-USB-B: 850 KB/ s

GPIB-USB-HS: 1.8 MB/ SEC

The National Instruments GPIB-USB converts any computer with a USB port into a fully functional IEEE 488.2 controller. It can then control up to 14 programmable GPIB instruments. Its compactness makes it ideal for portable applications using portable computers or other applications where the computer does not have an available internal I/O slot. GPIB-USB is a plug-and-play interface that is automatically recognized and configured by the operating system as soon as you physically connect it to a USB port.

GPIB-USB is easy to install and use because there is no external DIP switch and you do not need to restart your computer to recognize the IEEE 488.2 interface. This controller is suitable for Windows 2000/XP/Me/98 or Linux computers. More specifically, Linux operating systems or later versions of NI-488.2 do not support GPIB-USB-A.

The differences between the two models include:

- GPIB-USB-B: 850 KB/ SEC - GPIB-USB-A: 650 KB/ SEC

- GPIB-USB-A is not available for later versions of NI-488.2 - GPIB-USB-B is only available for NI-488.2 2.0 and later - GPIB-USB-A is black

The GPIB-USB-A is A GPIB controller designed for communication between GPIB devices and personal computers with universal serial bus ports. The developer of the GPIB-USB-A controller is National Instruments. The controller can convert a personal computer into a fully integrated IEEE-488.2 controller to control any GPIB device. The IEEE-488 version 2 controller can control up to 14 programmable devices through the GPIB interface. NI GPIB-USB-A provides simple plug-and-go connectivity, so the operating system recognizes the controller whenever the user connects it to the computer.

GPIB-USB-A does not require a computer reboot when connected, ensuring a fast installation. The compact and compact size makes this controller an excellent choice for portable applications. NI GPIB-USB-A can be used with either a laptop or a desktop application. The National Instruments GPIB-USB-A has a data transfer rate of 650 KB/s. The best operating system for this controller is Windows. Software recommended for this controller includes LabVIEW, LabWindows/CVI, and Measurement Studio. The compatible driver software for NI GPIB-USB-A is NI-488.2. The controller is compatible with USB 1.1. The controller comes with an IEEE 488 standard 24-pin IEEE-488 I/O connector for GPIB and A USB Standard A-Series plug for USB I/O connectors.

The GPIB-USB-A controller is easy to connect. One side of the National Instruments GPIB-USB-A connector should be connected to the GPIB instrument, while the USB side of the controller should be connected to the USB port of the user's personal computer.
