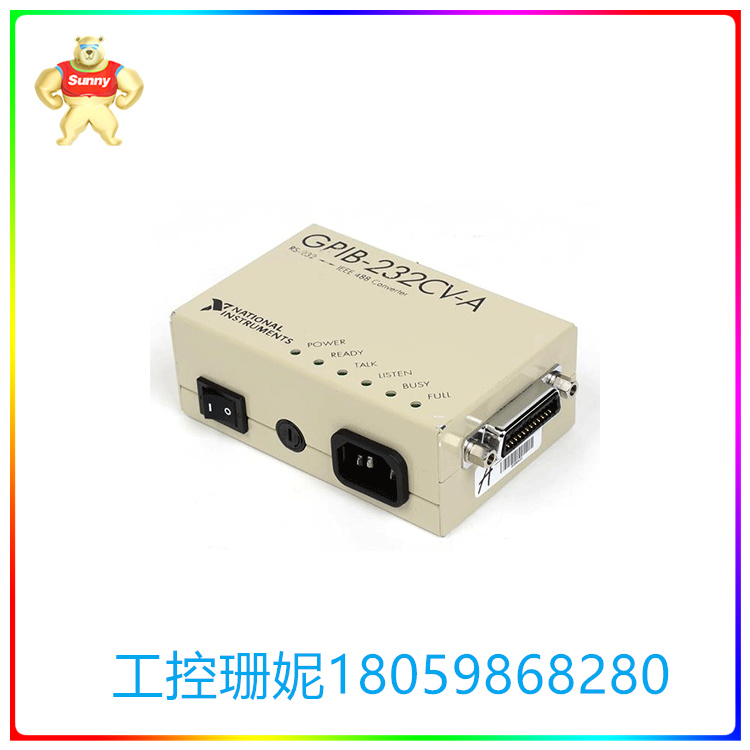

GPIB-232CV-A GPIB至RS232控制器 转换器 （交流输入电压）

【产品详情】

特征：

完全兼容 IEEE 488.2

256 KB RAM缓冲区

8 RS-232 或 RS-485 数据传输速率高达 38.4 kb/s

National Instruments GPIB RS-232/485 IEEE 488 控制器和转换器可以 将任何带有 RS-232 或 RS-485 端口的计算机或终端变成 全功能IEEE 488.2控制器。随着开关的拨动， NI GPIB-232CT-A 或 NI GPIB-485CT-A 可以 进行 任何 RS-232 或 RS-485 设备显示为 GPIB 设备。这些体积小 控制器使它们非常适合与笔记本电脑或其他 没有可用的内部 I/O 插槽的计算机。

NAT4882 IEEE 488.2 ASIC 实现了全系列 GPIB 控制器功能，包括所需的控制器功能 并由 IEEE 488.2 推荐。所有GPIB序列和操作 符合 IEEE 488.2 标准。外部拨码开关设置操作模式， GPIB主地址和串口参数。 根据版本的不同，GPIB-232CT-A和GPIB-485CT-A 控制器可以接受交流或直流电源输入。您可以连接 GPIB-232CT-A或GPIB-485CT-A最高可达14 GPIB 仪器。

NI GPIB-232CV-A（部件号：776669-01、776669-02、776669-03、776669-04、776669-05、776669-06、776898-01和776898-31）是一款GPIB至RS-232转换器。 该模型在两个端口（GPIB和串行端口）之间透明地转换数据，无需特殊命令或控制代码。GPIB-232CV-A集成了256 KB大小的RAM缓冲器和DMA，有助于提高接口系统的整体效率。此缓冲区可在绘图仪和打印机应用期间保持主机卸载。该器件的 RS232 数据传输速率高达 38.4kb/s。NI GPIB-232CV-A 采用紧凑型结构，前面板上有电源开关和指示灯，后面板上有端口。

这款GPIB-to-RS232转换器几乎可以与所有PC一起使用。使用此型号，用户可以将GPIB控制器连接到任何支持RS-232的仪器。此外，用户可以通过计算机串行端口将 IEEE 488 （GPIB） 设备连接到任何兼容的 PC 或笔记本电脑。National Instruments GPIB-232CV-A 转换器允许用户将 GPIB 频谱分析仪连接到支持串行端口的 PC，或者可用于将串行设备（带有 RS-232 端口）连接，例如绘图仪或打印机连接到 GPIB 网络。

使用此模型，用户可以向任一方向传输数据。该器件提供两个版本：AC 和 DC。与该系列中的其他型号一样，NI GPIB-232CV-A可以配置为在控制器模式或设备模式下运行。在设备模式下，该装置将作为另一个GPIB控制器下的从设备。但是，在控制器模式下，GPIB 232CV A作为GPIB控制器运行，指示单个GPIB设备监听或通话。

NI 设备重 12 盎司。DC 版本尺寸为 3.0 x 1.7 x 4.7 英寸。物理尺寸，而 AC 版本的物理尺寸：3.0 x 1.1 x 4.7 英寸。该转换器的推荐工作和存储温度范围分别为 10 至 40 °C 和 0 至 70 °C。

GPIB-232CV-A GPIB至RS232控制器 转换器 （交流输入电压）

【英文介绍】

Features:

Fully compatible with IEEE 488.2

256 KB RAM buffer

8 RS-232 or RS-485 data transfer rates up to 38.4 kb/s

The National Instruments GPIB RS-232/485 IEEE 488 Controller and Converter can turn any computer or terminal with an RS-232 or RS-485 port into a fully functional IEEE 488.2 controller. With the flip of the switch, the NI GPIB-232CT-A or NI GPIB-485CT-A can display any RS-232 or RS-485 device as A GPIB device. These small size controllers make them ideal for working with laptops or other computers that don't have an available internal I/O slot.

The NAT4882 IEEE 488.2 ASIC implements the full range of GPIB controller functions, including required controller functions, and is recommended by IEEE 488.2. All GPIB sequences and operations comply with IEEE 488.2 standards. External DIP switch Sets the operating mode, GPIB primary address, and serial port parameters. Depending on the version, the GPIB-232CT-A and GPIB-485CT-A controllers can accept AC or DC power input. You can connect the GPIB-232CT-A or GPIB-485CT-A up to 14 GPIB instruments.

NI GPIB-232CV-A (part number 776669-01, 776669-02, 776669-03, 776669-04, 776669-05, 776669-06, 776898-01, and 776898-31) is A GPIB to RS-232 converter. The model transparently converts data between two ports (GPIB and serial port) without special command or control code. The GPIB-232CV-A integrates a 256 KB RAM buffer and DMA to help improve the overall efficiency of the interface system. This buffer keeps the host uninstalled during plotter and printer applications. The device's RS232 data transfer rate is up to 38.4kb/s. The NI GPIB-232CV-A has a compact construction with power switches and indicators on the front panel and ports on the back panel.

This GPIB-to-RS232 converter can be used with almost any PC. With this model, users can connect the GPIB controller to any instrument that supports RS-232. In addition, users can connect IEEE 488 (GPIB) devices to any compatible PC or laptop via a computer serial port. The National Instruments GPIB-232CV-A converter allows users to connect A GPIB spectrum analyzer to a PC that supports serial ports, or can be used to connect a serial device (with an RS-232 port), such as a plotter or printer, to a GPIB network.

With this model, users can transfer data in either direction. The device is available in two versions: AC and DC. Like other models in the family, the NI GPIB-232CV-A can be configured to operate in controller mode or device mode. In device mode, the device will act as a slave device under another GPIB controller. However, in controller mode, the GPIB 232CV A operates as a GPIB controller, instructing individual GPIB devices to listen or talk.

The NI device weighs 12 ounces. The DC version measures 3.0 x 1.7 x 4.7 inches. Physical size, while the AC version's physical size: 3.0 x 1.1 x 4.7 inches. The recommended operating and storage temperature ranges for the converter are 10 to 40 °C and 0 to 70 °C, respectively.

GPIB-232CV-A GPIB至RS232控制器 转换器 （交流输入电压）
