GPIB-232CT-A 控制器 （交流输入电压）

【产品详情】

概述

特征：

完全兼容 IEEE 488.2

256 KB RAM缓冲区

8 RS-232 或 RS-485 数据传输速率高达 38.4 kb/s

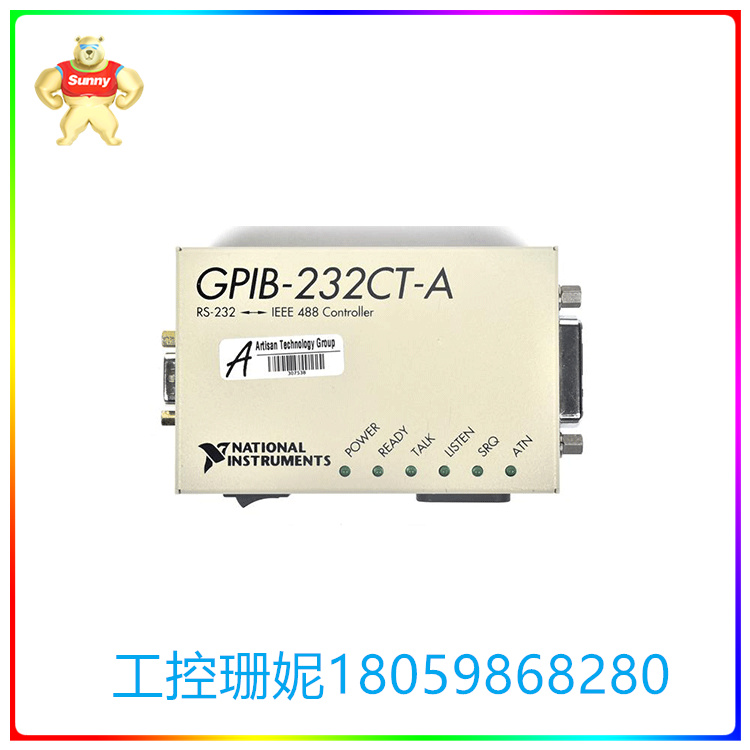

National Instruments GPIB RS-232/485 IEEE 488 控制器和转换器可以 将任何带有 RS-232 或 RS-485 端口的计算机或终端变成 全功能IEEE 488.2控制器。随着开关的拨动， NI GPIB-232CT-A 或 NI GPIB-485CT-A 可以 进行 任何 RS-232 或 RS-485 设备显示为 GPIB 设备。这些体积小 控制器使它们非常适合与笔记本电脑或其他 没有可用的内部 I/O 插槽的计算机。

NAT4882 IEEE 488.2 ASIC 实现了全系列 GPIB 控制器功能，包括所需的控制器功能 并由 IEEE 488.2 推荐。所有GPIB序列和操作 符合 IEEE 488.2 标准。外部拨码开关设置操作模式， GPIB主地址和串口参数。 根据版本的不同，GPIB-232CT-A和GPIB-485CT-A 控制器可以接受交流或直流电源输入。您可以连接 GPIB-232CT-A或GPIB-485CT-A最高可达14 GPIB 仪器。

NI GPIB-232CT-A具有完整的GPIB控制器功能（部件号：776668-01、776668-02、776668-03、776668-04、776668-05、776668-06、776899-01、776899-31、776667-01、776667-02、776667-03、776667-04、776667-05、776667-06、776900-01和 776900-31）为PC提供串行端口（RS232），这是一种在GPIB上进行通话、监听和控制的方法。此外，该器件还可用于将外围设备和其他测量设备快速连接到GPIB。

National Instruments GPIB-232CT-A 提供两种交流版本（100-120 VAC、220-240 VAC）和一种直流版本。对于直流版本，设备随附外部电源。该型号配备了NAT4882控制器芯片。该 芯片 使 NI GPIB-232CT-A 能够 完全 兼容 IEEE 488.2 标准。为了在GPIB上进行通话、监听和控制，用户可以将计算机的串行端口连接到该设备的RS-232端口。

RS-232 串行端口可以在 S 模式或 G 模式下运行。在其默认配置中，设备配置为在 S 模式下运行。但是，用户可以通过 DIP 开关更改串行端口的操作方法。在 S 模式下，连接的计算机充当控制设备。然而，在G模式下，GPIB-232CT-A被用作RS-232设备作为侦听器/讲话者进行接口。

每个GPIB-232CT-A设备都可以与NI-488.2驱动程序软件一起使用，该软件是一套全面的驱动程序和程序，用于将基于Windows的Microsoft PC转换为具有完整总线管理和通信功能的GPIB控制器。该GPIB串行控制器具有实现RS-232和IEEE 488的电气和物理规范所需的所有逻辑和软件。

相关部件号： 776667-01， 776667-02， 776667-03， 776667-04， 776667-05， 776667-06， 776668-01， 776668-02， 776668-03， 776668-04， 776668-05， 776668-06， 776899-01， 776899-31， 776900-01， 776900-31
