GPIB-140A/2  GPIB延长器通信协议通过光缆发送和接收数据

【产品详情】

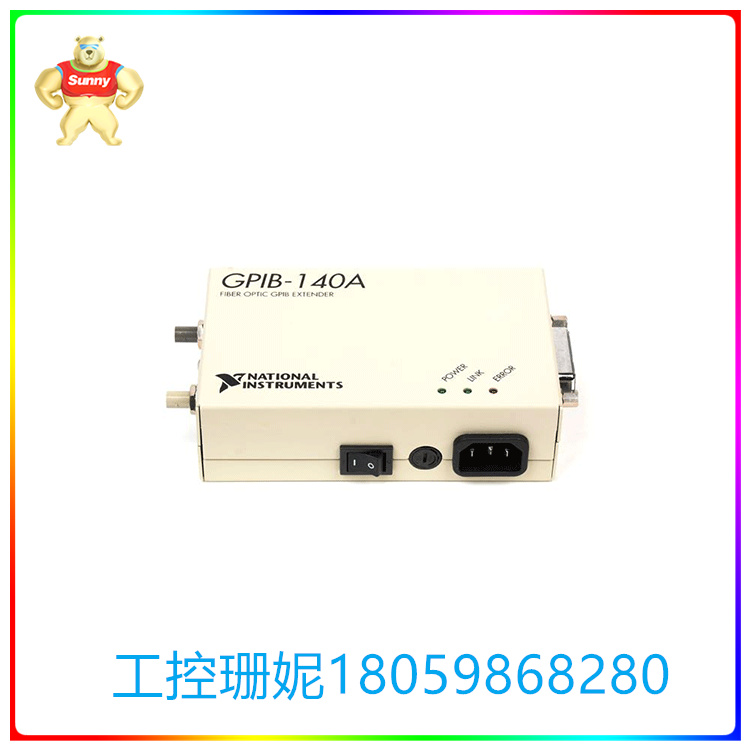

National Instruments GPIB-140A/2 GPIB延长器

NI GPIB-140A/2（部件号：777998-01、777998-02、777998-03、777998-04、777998-05和777998-06）是N Instruments GPIB-140A系列的成员。 该型号使用光纤电缆，电缆长度可延长 2 公里。如果不使用扩展器，GPIB系统就不能部署在20米以上，这是IEEE 488标准中规定的限制。使用该GPIB延长器，可以将两个独立的远程GPIB系统连接起来，作为一个GPIB系统运行。

NI GPIB-140A/2 使用 不同 的 通信 协议 通过 光缆 发送 和 接收 数据。通过这种扩展安排，用户可以在同一总线上操作两个设备。该系统还可以帮助用户超越 IEEE 488 对每条连续总线 15 个器件的限制。相反，用户可以在同一系统上使用多达 28 台设备，而不会牺牲性能或速度。对于更长的距离，用户可以串联多个扩展器。为了增加负载，用户也可以以星形模式连接设备。

该器件提供两种模式的数据传输：缓冲模式和无缓冲模式。在缓冲模式下，FIFO缓冲器用于提高数据传输速率。在无缓冲模式下，每一位数据都由电缆保存，直到两个设备（接收方和发送方）验证消息是否正确传输。默认情况下，NI GPIB-140A/2配置为在无缓冲模式下运行。但是，可以借助GPIB-140A/2上随附的DIP开关重新配置设备。

相关部件号： 777998-01， 777998-04

GPIB-140A/2  GPIB延长器通信协议通过光缆发送和接收数据

【英文介绍】

National Instruments GPIB-140A/2 GPIB Extender

The NI GPIB-140A/2 (part number 777998-01, 777998-02, 777998-03, 777998-04, 777998-05, and 777998-06) is a member of the N Instruments GPIB-140A family. This model uses fiber optic cable, which can be extended by 2 km. Without the use of an extender, GPIB systems cannot be deployed above 20 meters, which is the limit specified in the IEEE 488 standard. With the GPIB extender, two independent remote GPIB systems can be connected to operate as a single GPIB system.

The NI GPIB-140A/2 uses different communication protocols to send and receive data over optical cables. With this extended arrangement, users can operate two devices on the same bus. The system can also help users exceed IEEE 488's limit of 15 devices per continuous bus. Instead, users can use up to 28 devices on the same system without sacrificing performance or speed. For longer distances, users can connect multiple extenders in series. To increase the load, users can also connect devices in star mode.

The device provides two modes of data transmission: buffered mode and unbuffered mode. In buffering mode, FIFO buffers are used to increase the data transfer rate. In unbuffered mode, each bit of data is held by the cable until two devices (the receiver and the sender) verify that the message was transmitted correctly. By default, NI GPIB-140A/2 is configured to run in unbuffered mode. However, the device can be reconfigured with the DIP switch included on the GPIB-140A/2.

Relevant part number: 777998-01, 777998-04
