GPIB-1284CT GPIB控制器 无配置开关

【产品详情】

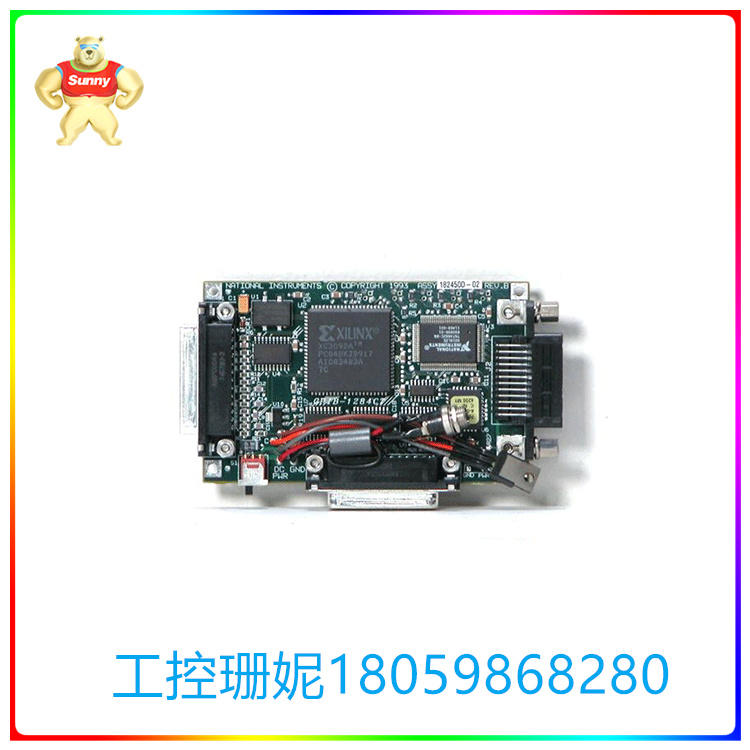

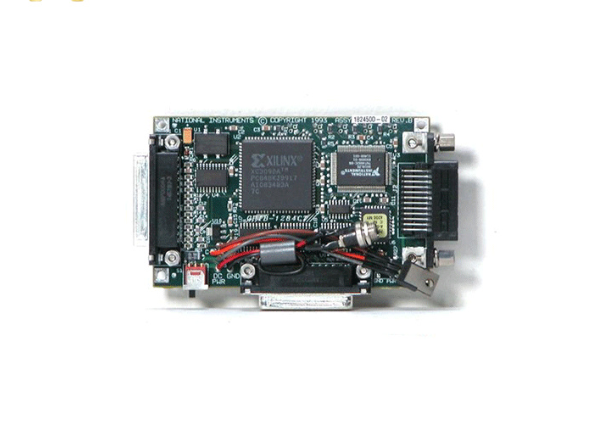

National Instruments GPIB-1284CT GPIB控制器

GPIB-1284CT是专为PC并口设计的GPIB控制器。NI GPIB-1284CT 由 National Instruments 制造。该GPIB控制器有交流和直流两种版本。AC 版本的部件号为 776858-01。DC 版本的部件号为 776859-01。GPIB-1284CT可与1米电缆一起使用，该电缆提供US 120 VAC和其他电源选项。该GPIB控制器可在NI-488.2驱动软件上运行。GPIB-1284CT推荐与LabVIEW和LabWindows等软件工具配合使用。NI GPIB-1284CT与Windows 3.1或DOS操作系统兼容。

该GPIB控制器设计为并行至GPIB接口。GPIB-1284CT也被设计为双向控制器。National Instruments GPIB-1284CT由两个并行端口构成。在NI GPIB-1284CT GPIB控制器上， 控制器功能、IEEE 488讲话器模式和侦听器功能由TNT4882C执行。IEEE 488.2 协议需要这些功能。

GPIB-1284CT采用内部开关电源或外部直流电源输入，可轻松集成到任何应用中。该GPIB控制器还具有一个输出并行端口，用于透明直通连接，该GPIB控制器对DC版本要求最大电流为700 mA。100-120 VAC 的电流要求为 55 mA，AC 版本的电流要求为 45-240 VAC 的 45 mA。NI GPIB-1284CT 已 通过 FCC A 类 EMI 代码 认证。GPIB-1284CT可在0至40°C的温度范围内安全运行。

GPIB-1284CT GPIB控制器 无配置开关

【英文介绍】

National Instruments GPIB-1284CT GPIB controller

The GPIB-1284CT is a GPIB controller designed for PC parallel ports. The NI GPIB-1284CT is manufactured by National Instruments. The GPIB controller is available in AC and DC versions. The part number of the AC version is 776858-01. The DC version has the part number 776859-01. The GPIB-1284CT can be used with a 1-meter cable that offers US 120 VAC and other power options. The GPIB controller runs on the NI-488.2 driver software. GPIB-1284CT is recommended for use with software tools such as LabVIEW and LabWindows. NI GPIB-1284CT is compatible with Windows 3.1 or DOS operating systems.

The GPIB controller is designed to be parallel to the GPIB interface. The GPIB-1284CT is also designed as a bidirectional controller. The National Instruments GPIB-1284CT consists of two parallel ports. On the NI GPIB-1284CT GPIB controller, the controller functions, IEEE 488 speaker mode, and listener functions are performed by TNT4882C. The IEEE 488.2 protocol requires these capabilities.

With an internal switching power supply or external DC power input, the GPIB-1284CT can be easily integrated into any application. The GPIB controller also has an output parallel port for transparent pass-through connections, and the GPIB controller requires a maximum current of 700 mA for the DC version. Current requirements are 55 mA for 100-120 VAC and 45 mA for 45-240 VAC for AC versions. NI GPIB-1284CT has passed FCC Class A EMI code certification. The GPIB-1284CT operates safely in a temperature range of 0 to 40°C.

GPIB-1284CT GPIB控制器 无配置开关
