National Instruments GPIB-1014DP 用于VMEbus的GPIB接口

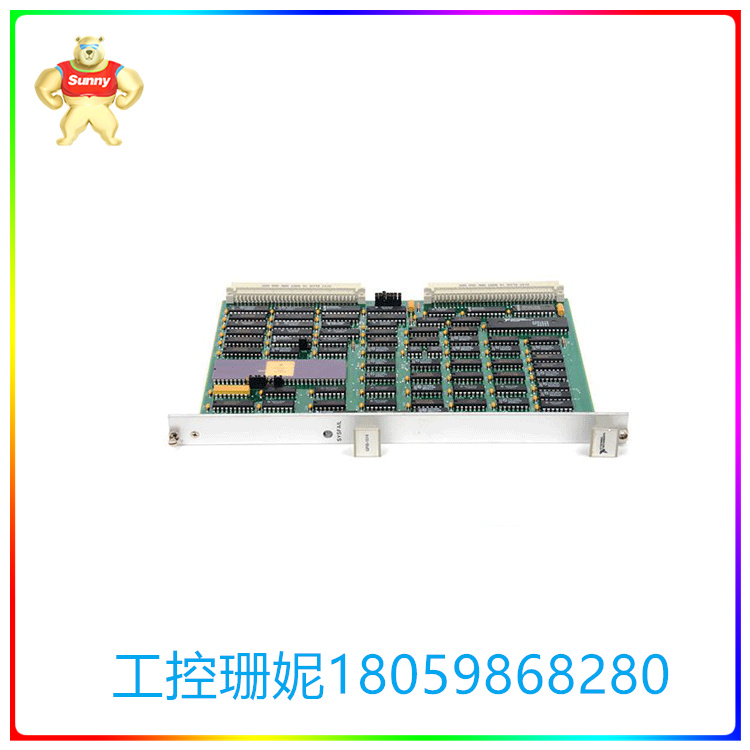

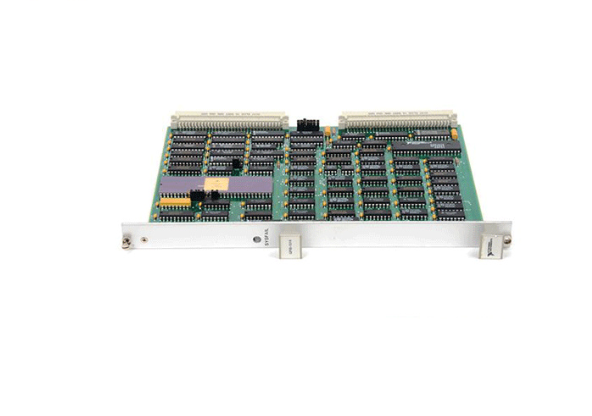

GPIB-1014DP最好被描述为双高电路板，有助于将VMEbus连接到IEEE-488。该界面的创建者是National Instruments。NI GPIB-1014DP 提供 了 两 个 独立 且 功能 齐全 的 GPIB 部件。 该GPIB接口提供了一种利用标准互连电缆实现VMEbus测试和测量系统的方法。 GPIB-1014D的部件号为776093-01，便于订购和识别。

NI GPIB-1014DP 还 可 用作 总 线 转换器。GPIB-1014DP用于将与VMEbus相关的消息和信号转换并转换为相应的GPIB接口消息和信号。该GPIB接口上的端口可用于实现GPIB接口功能，以便与其他GPIB设备以及中央处理器和存储器进行通信。

如果与 IEEE-488 总线一起使用，此接口可以实现 80 KB/s 的传输速率。5 VDC 电源 是 NI GPIB-1014DP 的 合适 电源 选项。 该器件的电流要求从1.1 A（典型值）到2.0 A（最大值）不等。 IEEE-488 标准的标准输入/输出 24 针连接器用于该设备的物理连接。 当用户需要使用GPIB控制器时，该GPIB接口是一个合适的选择。该设备还可以选择将该接口用作说话者或听众。 NI GPIB-1014DP 接口 作为 控制器、 监听 器 或 讲话 器 的 应用 可 根据 用户 的 方便 进行 编 程。GPIB-1014DP提供完整的监听功能选项以及扩展功能选项。

相关部件号： 776093-01

GPIB-1014DP 用于VMEbus的GPIB接口

【英文介绍】

National Instruments GPIB-1014DP is used for the GPIB interface of VMEbus

The GPIB-1014DP is best described as a double-height circuit board that helps connect the VMEbus to IEEE-488. The creator of the interface is National Instruments. The NI GPIB-1014DP provides two independent and fully functional GPIB components. The GPIB interface provides a way to implement a VMEbus test and measurement system using standard interconnect cables. The GPIB-1014D has part number 776093-01 for easy ordering and identification.

The NI GPIB-1014DP can also be used as a bus converter. The GPIB-1014DP is used to convert and convert VMEBus-related messages and signals to the corresponding GPIB interface messages and signals. Ports on this GPIB interface can be used to implement GPIB interface functions to communicate with other GPIB devices as well as the central processor and memory.

If used with the IEEE-488 bus, this interface can achieve a transfer rate of 80 KB/s. The 5 VDC power supply is a suitable power option for the NI GPIB-1014DP. Current requirements for this device range from 1.1 A (typical value) to 2.0 A (maximum value). The IEEE-488 standard's standard input/output 24-pin connector is used for the physical connection of this device. The GPIB interface is a suitable choice when the user needs to use the GPIB controller. The device can also choose to use the interface as a speaker or listener. Applications with the NI GPIB-1014DP interface as a controller, listener or speaker can be programmed according to the user's convenience. The GPIB-1014DP offers full listening function options as well as extended function options.

Related part number: 776093-01
