SCXI-1521 应变/桥接输入模块 增加通道数量

【产品详情】

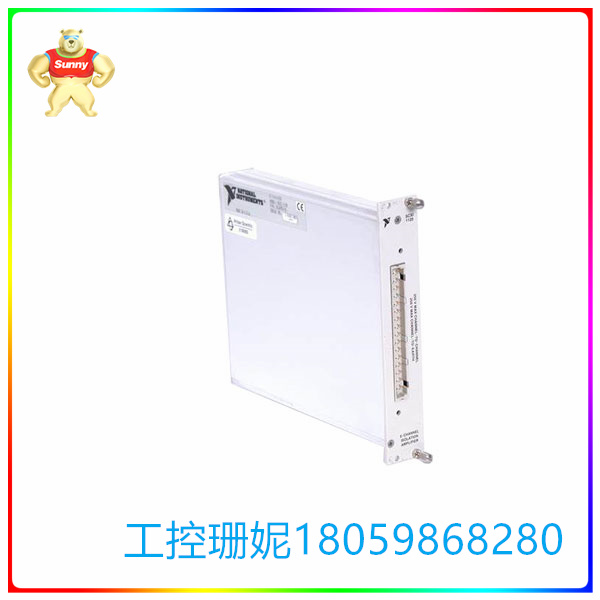

National Instruments SCXI-1521 应变/桥接输入模块

NI SCXI-1521（部件号：777966-21）是高通道数应用的理想选择。该四分之一桥应变计输入模块可以将其信号多路复用到控制DAQ仪器的一个通道中。用户可以添加更多模块以增加通道数量。还有一个 10 Hz、2 极巴特沃斯滤波器。用户可以在 0-5 V 的 1,024 个电平范围内对激励进行编程。10 Hz、2 极点巴特沃斯滤波器提供低通滤波，以阻止噪声并保证精确测量。该模块还具有强大的校准功能。

SCXI-1521模块上的24个模拟输入通道中的每一个都有一个电路，用于消除电桥失调电压。驱动软件可在几秒钟内将失调电压归零。用户不必手动修改电位器。当用户使用测量硬件摆脱这种偏移时，他们将达到更高的测量分辨率。

SCXI 1521模块具有板载校准EEPROM，可保存每个通道的校准常数。传统 的 NI- DAQ 和 NI- DAQmx 利用 校准 常数 来 调整 每 个 通道 的 增益 和 失调 误差。每个通道上精确、可靠的分流校准电阻器可用于以编程方式模拟负载对应变计的影响，以弥补应变计误差。分流校准电阻位于NI SCXI-1521应变/桥接输入模块的内部。用户可以使用软件命令激活或停用分流电阻器。

SCXI-1521 应变/桥接输入模块 增加通道数量

【英文介绍】

National Instruments SCXI-1521 Strain/bridge input module

The NI SCXI-1521 (Part number: 777966-21) is ideal for high-channel applications. The quarter-bridge strain gauge input module can multiplex its signal into a channel that controls the DAQ instrument. Users can add more modules to increase the number of channels. There is also a 10 Hz, 2 pole Butterworth filter. The user can program the excitation in a range of 1,024 levels from 0 to 5 V. The 10 Hz, 2 pole Butterworth filter provides low-pass filtering to block noise and guarantee accurate measurements. The module also has a powerful calibration function.

Each of the 24 analog input channels on the SCXI-1521 module has a circuit for eliminating the bridge offset voltage. The driver software zeroes out the offset voltage in seconds. Users do not have to manually modify the potentiometer. When users use measurement hardware to get rid of this offset, they will achieve higher measurement resolution.

The SCXI 1521 module has an onboard calibration EEPROM that stores calibration constants for each channel. Traditional NI-DAQ and NI-DAQmx use calibration constants to adjust the gain and offset errors of each channel. Accurate and reliable shunt calibration resistors on each channel can be used to programmatically simulate the effect of load on the strain gauge to compensate for strain gauge errors. The shunt calibration resistor is located inside the NI SCXI-1521 strain/bridge input module. Users can activate or deactivate the shunt resistor using software commands.
