SCXI-1520 模拟输入通道 应变/电桥输入模块

【产品详情】

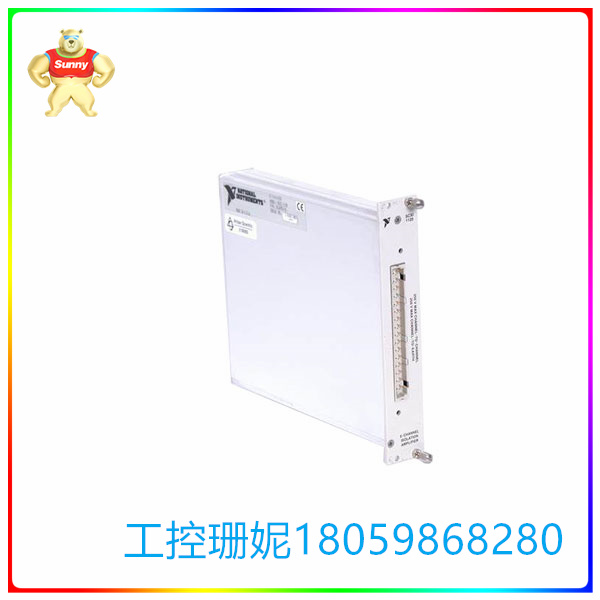

National Instruments SCXI-1520 应变/电桥输入模块

NI SCXI-1520（部件号：777966-20、186338-01）通用应变计输入模块可与SCXI-1314螺钉接线端子、SCXI-1310连接器和外壳组件、TBX-96导轨安装接线端子或SCXI-1314T RJ-50接线端子一起使用。直流耦合器件具有 8 个模拟输入通道。它为用户提供了直接或更复杂的基于应变和电桥的传感器测量所需的所有功能。其中一项功能是能够读取来自应变、负载、力、扭矩和压力传感器的信号。该模块的另一个优点是在改变条件下的自动校准功能。每个通道上还有一个可编程放大器和可编程 4 极点巴特沃斯滤波器，以提供精确的应变测量。4 极点巴特沃斯滤波器提供尖锐的截止功能以阻止噪声，同时保持通带中最高的平坦度。每个通道还具有一个单独的 0 至 10 V 可编程激励源，每个通道具有远程检测功能。 SCXI 1520模块的另一个有用功能是同步采样保持功能。该特性利用采样保持或T/H电路进行同步采样应用。

SCXI 1520 使用 NI- DAQmx 驱动 软件 进行 操作， 该 软件 兼容 LabVIEW、 LabWindows/ CVI 或 Measurement Studio 等 软件包 / 应用 开发 环境 （ADE）。

并行模式可用于使用NI-DAQ 7进行高速采集。在并行模式下，每个通道都指向其所连接的DAQ仪器的不同模拟输入通道。NI-DAQ Traditional没有并行操作模式。此外，SCXI-1520 应变/桥接输入模块具有随机扫描功能。随机扫描功能允许用户以任何顺序从他们选择的通道中获取信息，这有助于减少总扫描时间。如果应用需要少于 8 个应变片，则可以将额外的模拟输入通道用于通用模拟信号。该设备重 10.4 盎司，尺寸为 1.2 x 6.9 x 8.0 英寸。在尺寸上。建议工作温度范围为0至50°C.SCXI-1520

SCXI-1520 模拟输入通道 应变/电桥输入模块

【英文介绍】

National Instruments SCXI-1520 Strain/bridge input module

NI SCXI-1520 (Part number: 777966-20, 186338-01) Universal strain gauge input modules can be used with SCXI-1314 screw terminals, SCXI-1310 connector and housing assemblies, TBX-96 rail mounting terminals, or SCXI-1314T RJ-50 terminals. The DC coupler has 8 analog input channels. It provides users with all the features needed for direct or more complex strain - and bridge-based sensor measurements. One of these features is the ability to read signals from strain, load, force, torque and pressure sensors. Another advantage of this module is the automatic calibration function under changing conditions. There is also a programmable amplifier and a programmable 4-pole Butterworth filter on each channel to provide accurate strain measurement. The 4-pole Butterworth filter provides sharp cutoff features to block noise while maintaining the highest flatness in the passband. Each channel also has a separate 0 to 10 V programmable excitation source, and each channel has remote detection capabilities. Another useful feature of the SCXI 1520 module is the synchronous sample Hold function. This feature utilizes sampling hold or T/H circuits for synchronous sampling applications.

The SCXI 1520 operates using NI-DAQmx driver software that is compatible with packages/application development environments (ades) such as LabVIEW, LabWindows/ CVI or Measurement Studio.

Parallel mode can be used for high-speed acquisition using NI-DAQ 7. In parallel mode, each channel points to a different analog input channel of the DAQ instrument to which it is connected. NI-DAQ Traditional has no parallel operation mode. In addition, the SCXI-1520 strain/bridge input module has a random scanning function. The random scan feature allows users to get information from the channels they choose in any order, which helps reduce the total scanning time. If the application requires fewer than eight strain gauges, additional analog input channels can be used for generic analog signals. The device weighs 10.4 ounces and measures 1.2 x 6.9 x 8.0 inches. In size. The recommended operating temperature range is 0 to 50° C.SIXI-1520

SCXI-1520 模拟输入通道 应变/电桥输入模块
