SCXI-1322 温度传感器接线端子 用于模块激励通道

【产品详情】

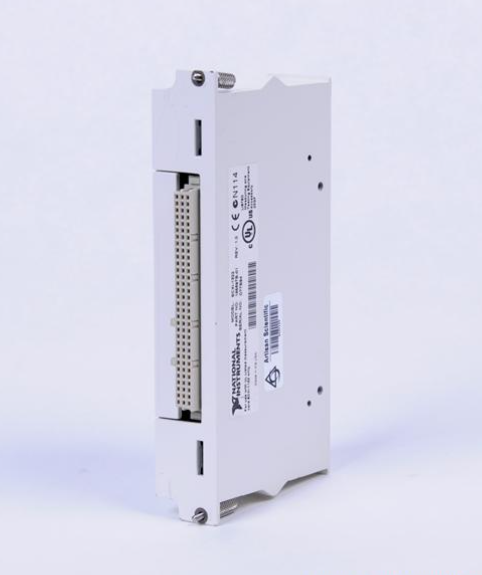

National Instruments SCXI-1322 温度传感器接线端子

SCXI 1322（部件号：777687-22）设计用于SCXI-1122模块。此接线端子安装在 SCXI 模块的前面。NI SCXI-1322 具有 用于 冷 端 补偿 的 板 载 传感器， 可 用于 许多 需要 隔离 的 测量 应用。该温度传感器接线端子上有 48 个螺丝端子，可轻松连接到 SCXI-1122 输入连接器。16对螺丝端子连接到NI SCXI-1122的输入端。其他七对螺丝端子用于模块激励通道。

National Instruments SCXI-1322 接线端子有两个端子：VEX/SENSE+ 和 VEX/SENSE-。当加载电阻 R3 和 R4 时（这是出厂默认设置），用户可以相应地将 VEX/SENSE+ 和 VEX/SENSE- 端子用作 VEX+ 和 VEX- 端子。例如，当负载较重且所有 16 个通道都连接到 16 120 个Ω应变片半桥时，用户应取下电阻 R3 和 R4 以修改 VEX/SENSE+ 和 VEX/SENSE- 端子以检测端子。端子必须连接到负载处的 VEX+ 和 VEX- 引线以进行遥感。因此，它们将弥补激励引线中的电压降。由于SCXI-1122模块提供一个电压激励通道，因此用户可以在一个负载位置远程检测其激励电压。用户可以利用一对励磁引线来承受所有负载。但是，如果不使用遥感，则用户必须为每个负载使用一对单独的激励引线。

SCXI-1322 温度传感器接线端子 用于模块激励通道

【英文介绍】

National Instruments SCXI-1322 temperature sensor terminal

The SCXI 1322 (Part number: 777687-22) is designed for the SCXI-1122 module. The terminal is installed on the front of the SCXI module. The NI SCXI-1322 has an onboard sensor for cold end compensation and can be used in many measurement applications where isolation is required. The temperature sensor terminal has 48 screw terminals for easy connection to the SCXI-1122 input connector. 16 Pair of screw terminals are connected to the input end of the NI SCXI-1122. The other seven pairs of screw terminals are used for module excitation channels.

The National Instruments SCXI-1322 terminal has two terminals: VEX/SENSE+ and VEX/SENSE-. When resistors R3 and R4 are loaded (which is the factory default), the user can use VEX/SENSE+ and VEX/ Sense-terminals as VEX+ and VEX-terminals accordingly. For example, when the load is heavy and all 16 channels are connected to 16 120 Ω strain gauge half-bridges, the user should remove resistors R3 and R4 to modify the VEX/SENSE+ and VEX/ Sense-terminals to detect the terminals. Terminals must be connected to VEX+ and VEX- leads at the load for remote sensing. Therefore, they will compensate for the voltage drop in the excitation lead. Since the SCXI-1122 module provides a voltage excitation channel, the user can remotely detect its excitation voltage at a load location. The user can use a pair of excitation leads to withstand all the load. However, if remote sensing is not used, the user must use a separate pair of excitation leads for each load.
