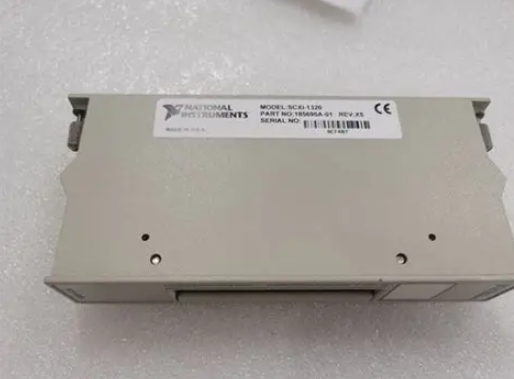

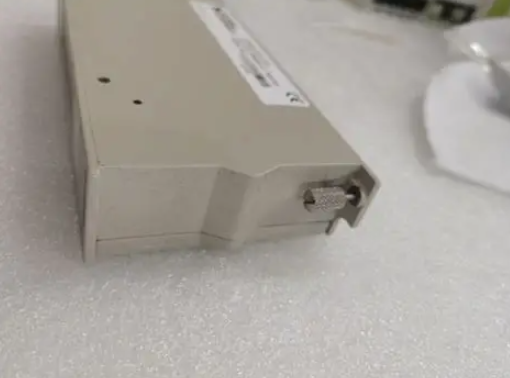

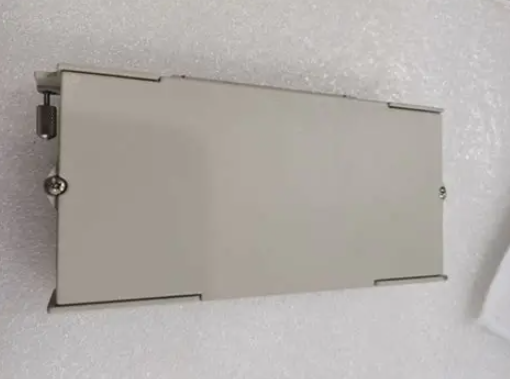

National Instruments SCXI-1320 前置式接线端子

SCXI-1320（部件号：777687-20）高压接线端子采用螺丝端子屏蔽，可连接到多个模块的输入连接器：SCXI-1121、SCXI-1120D、SCXI-1126、SCXI-1120或SCXI-1125。SCXI 1320 有 18 个螺丝端子，可轻松连接。一对螺丝端子可以连接到SCXI模块机箱接地。当此接线端子与SCXI-1120/D、SCXI-1125或SCXI-1126一起使用时，其他八对螺丝端子用于将信号连接到八个模块输入。 但是，当NI SCXI-1320与SCXI-1121一起使用时，四对螺丝端子用于四个模块输入，而另外四对用于模块激励输出。

该接线端子还配备了一个板载温度传感器，用于利用热电偶进行冷端补偿。NI 建议 使 SCXI 机 箱 远离 极端 温差， 以 实现 精确 的 冷 端 补偿。

准备使用NI SCXI 1320接线端子时，需要以下物品：SCXI机箱、SCXI模块（SCXI-1120、SCXI-1120D、SCXI-1121、SCXI-1125或SCXI-1126）、1号和2号飞利浦螺丝刀、剪线钳、电线绝缘剥线钳、长嘴钳和1/8英寸。一字螺丝刀。要将SCXI 1320连接到SCXI模块的前连接器，请先将前连接器链接到SCXI-1320上的相应连接器。然后，确保拧紧接线盒背面的顶部和底部翼形螺钉，使其锁定到位。

SCXI-1320 已由 National Instruments 宣布停产状态，但 Apex Waves 仍可购买和维修该接线端子。

SCXI-1320 通用前置接线端子 采用螺丝端子屏蔽

【英文介绍】

National Instruments SCXI-1320 front-mounted terminal

The SCXI-1320 (Part number: 777687-20) High voltage terminals are screw terminal shielded and can be connected to input connectors of multiple modules: SCXI-1121, SCXI-1120D, SCXI-1126, SCXI-1120 or SCXI-1125. The SCXI 1320 has 18 screw terminals for easy connection. A pair of screw terminals can be connected to SCXI module chassis grounding. When this terminal is used with the SCXI-1120/D, SCXI-1125, or SCXI-1126, the other eight pairs of screw terminals are used to connect the signal to the eight module inputs. However, when NI SCXI-1320 is used with SCXI-1121, four pairs of screw terminals are used for four module inputs, while another four pairs are used for module excitation outputs.

The terminal is also equipped with an onboard temperature sensor for cold-end compensation using thermocouples. NI recommends keeping SCXI enclosures away from extreme temperature differences to enable accurate cold-end compensation.

When preparing NI SCXI 1320 terminals for use, you need the following: SCXI chassis, SCXI module (SCXI-1120, SCXI-1120D, SCXI-1121, SCXI-1125, or SCXI-1126), size 1 and 2 Philips screwdrivers, wire cutters, wire insulation strippers, long nose pliers, and 1/8 inch. A flat-head screwdriver. To connect the SCXI 1320 to the front connector of the SCXI module, first link the front connector to the appropriate connector on the SCXI-1320. Then, make sure to tighten the top and bottom wing screws on the back of the junction box to lock them into place.

The SCXI-1320 has been declared discontinued by National Instruments, but Apex Waves can still purchase and repair the terminal.
