SCXI-1122 隔离式传感器多路复用器 16 个差分输入通道

【产品详情】

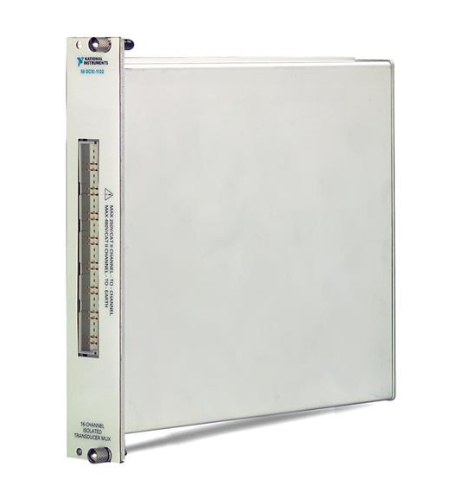

National Instruments SCXI-1122 隔离式传感器多路复用器

NI SCXI-1122 （部件号： 776572-22） 是 一 款 16 通道 隔离 式 传感器 多路 复用 器 模 块， 设计 用于 信号 调理。除了 16 个隔离通道外，该模块还具有两个隔离激励通道。该模块是应变计、热敏电阻、RTD、电压源、毫伏源和热电偶等信号调理应用的绝佳选择。

该模块设计为在两种模式下运行。在双线扫描模式下，所有 16 个输入通道都用于输入。然而，在四线扫描模式下，上部的8个通道用作检测引线，而下部的8个通道被配置并用作电流输出通道。NI SCXI-1122 可 与 NI Lab-PC+、 MIO-16 和 SCXI-1200 板 卡 配合 使用 。对于单通道读取，用户还可以将PC-LPM-16板与SCXI-1122一起使用。

NI SCXI-1122 具有 一个 50 针 公 头 后 接头 和 一个 48 针 母 头 前 接头。该模块的集成放大器在正常上电时以 1 GΩ 输入阻抗工作，在断电时以 100 kΩ 输入阻抗工作。就其动态特性而言，该型号具有 4 Hz （-10 dB） 或 4 kHz 软件可选带宽。该模块具有一个 3 极点 RC 集成滤波器，设计用于在 4 Hz （-10 dB） 截止频率和 60 dB 的 4 Hz 带宽 NMR 下工作。此外，该模块具有 2 个输出通道。电压和电流电平分别保持在 3.333 V ±0.04% 和 1.0 mA ±0.04% 左右。

相关部件号：182368-01、182368B-01、182368C-01、182368E-01、182368F-01、776572-22

SCXI-1122 隔离式传感器多路复用器 16 个差分输入通道

【英文介绍】

National Instruments SCXI-1122 isolated sensor multiplexer

The NI SCXI-1122 (Part number: 776572-22) is a 16-channel isolated sensor multiplexer module designed for signal conditioning. In addition to the 16 isolated channels, the module also has two isolated excitation channels. The module is an excellent choice for signal conditioning applications such as strain gauges, thermistors, RTDS, voltage sources, millivolt sources and thermocouples.

The module is designed to operate in two modes. In two-line scan mode, all 16 input channels are used for input. However, in four-wire scanning mode, the upper eight channels are used as detection leads, while the lower eight channels are configured and used as current output channels. The NI SCXI-1122 can be used with NI Lab-PC+, MIO-16 and SCXI-1200 board cards. For single-channel reading, users can also use the PC-LPM-16 board with the SCXI-1122.

The NI SCXI-1122 has a 50-pin male back joint and a 48-pin female front joint. The module's integrated amplifier operates at 1 GΩ input impedance during normal power-on and 100 kΩ input impedance during power outage. In terms of its dynamic characteristics, this model has a 4 Hz (-10 dB) or 4 kHz software selectable bandwidth. The module features a 3-pole RC integrated filter designed to operate at a 4 Hz (-10 dB) cutoff frequency and a 4 Hz bandwidth of 60 dB NMR. In addition, the module has 2 output channels. The voltage and current levels are maintained at around 3.333V ±0.04% and 1.0mA ±0.04% respectively.

Part number: 182368-01, 182368B-01, 182368C-01, 182368E-01, 182368F-01, 776572-22

SCXI-1122 隔离式传感器多路复用器 16 个差分输入通道
