SCXI-1112 热电偶输入模块 集成了开路热电偶检测电路
【产品详情】
特征:
随机扫描
每通道 2Hz 低通滤波
333kS/s 最大采样率
过压保护高达 ±42 V

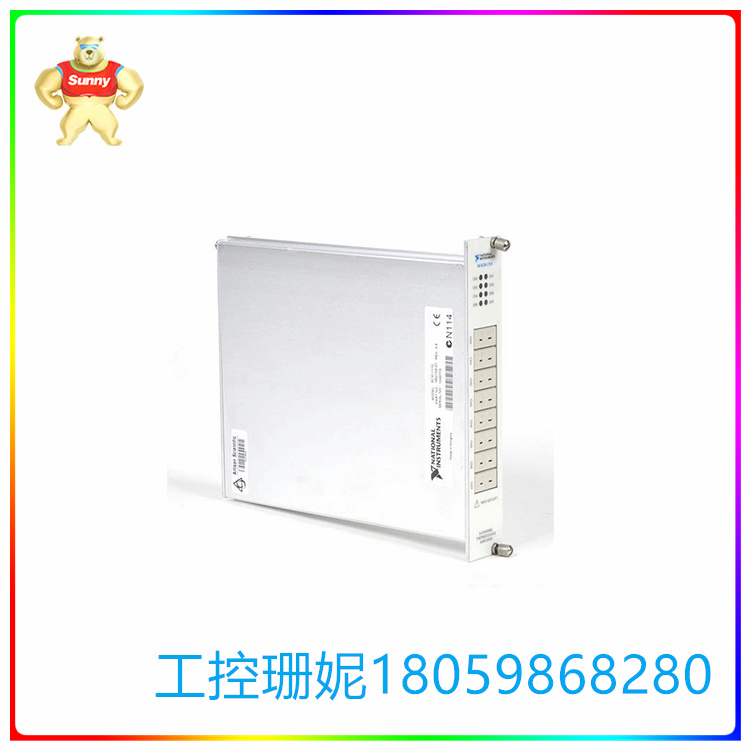

NI SCXI-1112 热电偶输入模块专为高精度热电偶测量而设计。该模块具有 8 个差分模拟输入通道和 8 个冷端传感器通道。该模块在每个输入通道上集成了开路热电偶检测电路。

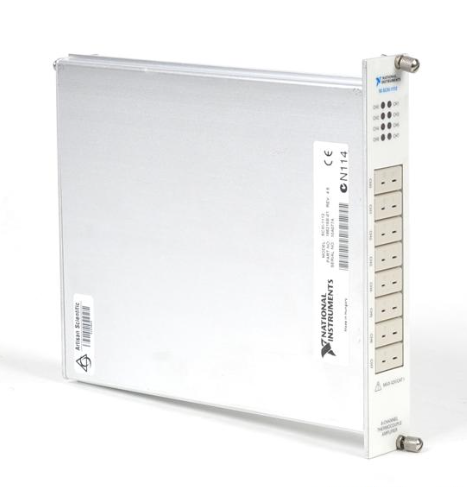

National Instruments SCXI-1112 热电偶输入模块
NI SCXI-1112 (部件号: 776572-12) 是一款 直接 连接 热 电偶 放大器 模 块。该模块具有 8 个通道,旨在放大和滤波热电偶产生的信号。在8个通道中,每个通道都有一个3极点低通滤波器,其截止频率为2 Hz,能够抑制60 Hz噪声。在 NI SCXI-1112 中, 每个 通道 还 具有 一个 100 固定 增益 的 放大器。借助该模块,用户可以将SCXI-1112的输入多路复用为单个输出,从而驱动单个DAQ设备通道。
该模块带有板载电压基准。因此,用户可以轻松对其进行校准和自动归零。相同的自动归零机制或电路也可用于消除失调电压。 NI SCXI-1112 是 为 与 National Instruments 的 E 系列 MIO 设备 或 SCXI-1200 模 块 配合 使用 而 设计。多个 NI SCXI-1112 模 块 也 可以 多 路 复 用 到 一个 通道, 从而 显著 增加 模拟 输入 的 数量。
SCXI-1112使用NIDAQmx驱动程序软件驱动程序运行,该驱动程序可以使用LabVIEW、LabWindows/CVI、ComponentWorks或VirtualBench等应用程序开发环境(ADE)进行编程。使用上述任何一种ADE都可以大大加快开发时间。

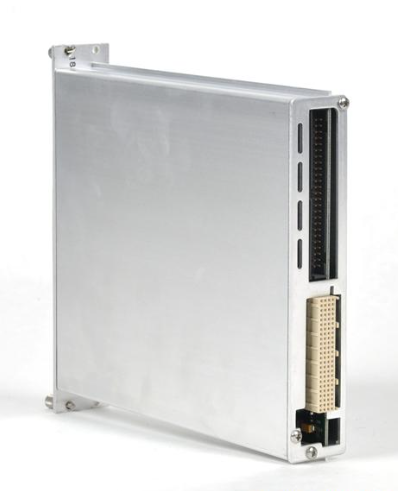

NI SCXI-1112 的 输入 信号 范围 为 ±100 mV。在正常上电模式下,放大器的输入阻抗为>1 GΩ。但是,在过载或断电状态下,输入阻抗保持在10 kΩ左右。该模块具有 2 Hz 带宽。该模块的前面板上带有一个 96 针 DIN C 公头连接器,后面板上有一个 50 针带状公头电缆连接器。SCXI-1112模块需要15 mA的最大功率才能正常工作。
NI 设备 的 尺寸 为 4.54 x 10.75 英寸。在物理维度上。建议的工作和存储温度范围分别为 0 至 50 °C 和 –55 至 150 °C,非冷凝相对湿度相对范围为 5 至 90%。
SCXI-1112 热电偶输入模块 集成了开路热电偶检测电路
【英文介绍】
Features:
Random scan
2Hz low-pass filtering per channel
333kS/s Maximum sampling rate
Overvoltage protection up to ±42 V
The NI SCXI-1112 thermocouple input module is designed for high precision thermocouple measurement. The module has 8 differential analog input channels and 8 cold-end sensor channels. The module integrates an open-circuit thermocouple detection circuit in each input channel.
National Instruments SCXI-1112 thermocouple input module
NI SCXI-1112 (Part number: 776572-12) is a directly connected thermocouple amplifier module. The module has eight channels designed to amplify and filter the signal generated by the thermocouple. Each of the eight channels has a 3-pole low-pass filter with a cutoff frequency of 2 Hz, capable of suppressing 60 Hz noise. In the NI SCXI-1112, each channel also has a 100 fixed-gain amplifier. With this module, users can multiplex the input of the SCXI-1112 into a single output to drive a single DAQ device channel.
The module has an onboard voltage reference. Therefore, it can be easily calibrated and automatically zeroed by the user. The same automatic zeroing mechanism or circuit can also be used to eliminate offset voltages. The NI SCXI-1112 is designed to work with National Instruments' E-series MIO devices or SCXI-1200 modules. Multiple NI SCXI-1112 modules can also be multiplexed to a channel, significantly increasing the number of analog inputs.
The SCXI-1112 runs with the NIDAQmx driver software driver, which can be programmed using an application development environment (ADE) such as LabVIEW, LabWindows/CVI, ComponentWorks, or VirtualBench. Using any of the above ADE can greatly speed up development time.
The NI SCXI-1112 has an input signal range of ±100 mV. In normal power-on mode, the input impedance of the amplifier is >1 GΩ. However, in the overload or power off state, the input impedance is maintained at about 10 kΩ. The module has a bandwidth of 2 Hz. The module has a 96-pin DIN C male connector on the front panel and a 50-pin strip male cable connector on the back panel. The SCXI-1112 module requires a maximum power of 15 mA to function properly.
The NI device measures 4.54 x 10.75 inches. In the physical dimension. The recommended operating and storage temperature ranges are 0 to 50 °C and -55 to 150 °C, respectively, and the relative non-condensing relative humidity ranges are 5 to 90%.
