NI DCM-2301 直接喷油器控制和测量装置

【产品详情】

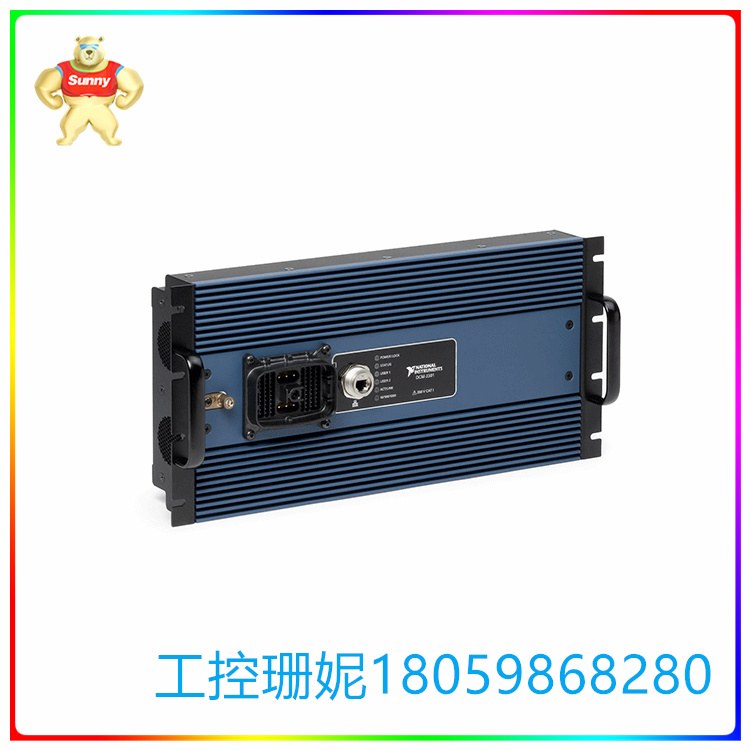

National Instruments DCM-2301 直接喷油器控制和测量装置

DCM-2301 是一款单通道直接进样器控制和测量设备。DCM-2301 由 National Instruments 制造。NI DCM-2301 的部件号为 784571-01。 DCM-2301 器件的功能包括高分辨率发动机位置跟踪和用于喷油器控制的复杂触发。NI DCM-2301 设备 可 容纳 1 个 压电 式 或 2 个 电磁 阀 直接 进 样 器。

NI DCM-2301 直接进样器控制和测量设备具有 220 V/40 A 的升压电源，并提供故障保护和检测。用户 可以 使用 NI DCM-2301 控制 整个 燃油 系统， 使用 附带 的 示波器 来 记录 喷油 器 电流 和 电压 波形。 DCM-2301 器件可让您方便地定义每个进样器的电压和电流曲线，每个周期最多进样两次。DCM-2301 还具有触发和波形生成功能。

NI DCM-2301 直接 进 样 器 控制 和 测量 设备 的 右侧 有 冷却 进 气 口。出口通风口位于机箱的左侧。DCM-2301 的存储温度为 -40°C 至 85°C，相对湿度为 5% 至 95% RH。NI DCM-2301 设备 的 典型 时钟 电池 寿命 为 10 年 。DCM-2301使用sbRIO-9651系统模块作为数字处理内核。为了防止DRVP电路的电容产生巨大的电流浪涌，在NI DCM-2301直接进样器控制和测量设备中实现了带有低级软件的电路布置。

NI DCM-2301 直接喷油器控制和测量装置

【英文介绍】

National Instruments DCM-2301 Direct injector control and measurement device

The DMM-2301 is a single-channel direct injector control and measurement device. Dmm-2301 is manufactured by National Instruments. The part number of NI DCM-2301 is 784571-01. Features of the DCM-2301 device include high-resolution engine position tracking and complex triggering for fuel injector control. The NI DCM-2301 unit can accommodate 1 piezoelectric or 2 solenoid valve direct injector.

The NI DCM-2301 Direct sampler control and measurement equipment has A 220 V/40 A boost power supply and provides fault protection and detection. Users can control the entire fuel system with the NI DCM-2301, using the included oscilloscope to record the injector current and voltage waveform. The DCM-2301 device allows you to easily define voltage and current curves for each injector, with up to two injections per cycle. The DCM-2301 also has trigger and waveform generation functions.

The NI DCM-2301 direct sampler control and measurement equipment has a cooling inlet on the right side. The exit vent is located on the left side of the chassis. The DMM-2301 has a storage temperature of -40°C to 85°C and a relative humidity of 5% to 95% RH. The typical clock battery life of the NI DCM-2301 device is 10 years. The DCM-2301 uses the sbRIO-9651 system module as the digital processing core. In order to prevent the capacitance of the DRVP circuit from generating a huge electrical surge, the circuit layout with low-level software is implemented in the NI DCM-2301 direct sampler control and measurement equipment.

NI DCM-2301 直接喷油器控制和测量装置
