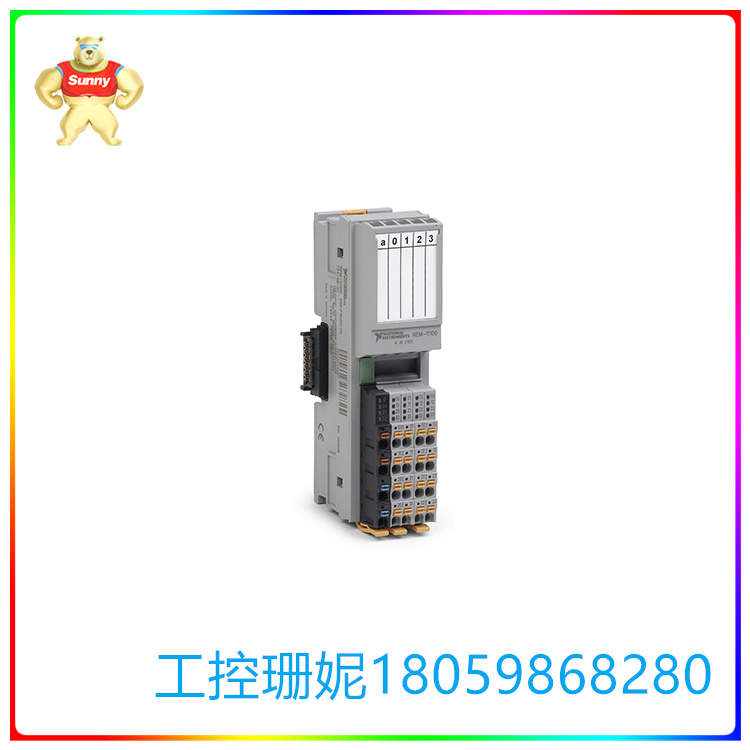

REM-11115 模拟量输出模块  用于远程I/O

【产品详情】

National Instruments REM-11115（部件号：784749-01）是一款2线、4通道模拟输出模块。该模块广泛用于远程I/O系统的部署。这些系统由单个模块和一个 EtherCAT 总线耦合器组成，并由实时控制器控制。NI REM-11115 可用于 电流 和 电压 输出， 并 具有 2 线 弹簧 端子。

National Instruments REM-11115 模拟输出模块具有四个可选电压输出范围和两个可选电流输出范围。弹簧端子连接器的加入无需工具即可快速接线。四个模拟输出由 16 位数模转换器提供支持。该模块集成了过载和短路保护功能。此外， NI REM-11115 还 具有 一个 用于 瞬态 保护 的 抑制 二极管。

REM-11115 模拟输出模块可以生成 4 mA 至 20 mA 或 0 mA 至 20 mA 范围内的电流输出信号。该模块产生的电流输出信号可用于控制各种工业执行器和设备。该模块通过总线连接器连接到后端控制系统，该连接器支持高达 100 MBits/s 的传输速度。

NI REM-11115 从 BUS 连接器 获取 所需 的 5 VDC 通信 电源， 消耗 约 120 mA 的 电流。 NI REM-11115 模拟 输出 模 块 在 典型 条件下 运行 时 消耗 的 功率 约为 2.04 瓦。该模块需要 24 VDC 电源，允许电压范围为 19.2 至 30 VDC。远程 I/O 硬件广泛用于添加低成本 I/O。控制器可以处理高级任务，例如运动控制和图像处理。

相关部件号： 784749-01

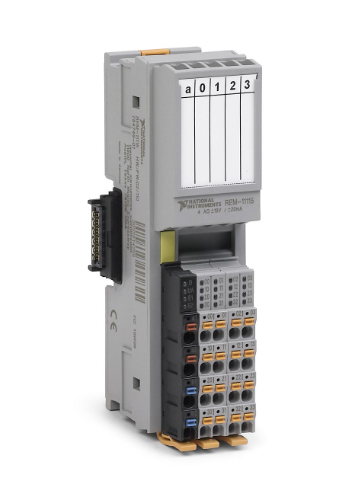

REM-11115 模拟量输出模块  用于远程I/O

【英文介绍】

National Instruments REM-11115 (Part number: 784749-01) is a 2-wire, 4-channel analog output module. The module is widely used in remote I/O system deployment. These systems consist of a single module and an EtherCAT bus coupler and are controlled by a real-time controller. The NI REM-11115 can be used for current and voltage output and has 2-wire spring terminals.

The National Instruments REM-11115 analog output module has four selectable voltage output ranges and two selectable current output ranges. The addition of spring terminal connectors allows quick wiring without tools. The four analog outputs are supported by a 16-bit digital-to-analog converter. The module integrates overload and short circuit protection. In addition, the NI REM-11115 has an suppression diode for transient protection.

The REM-11115 analog output module can generate current output signals in the range of 4 mA to 20 mA or 0 mA to 20 mA. The current output signal generated by the module can be used to control various industrial actuators and equipment. The module is connected to the back-end control system via a bus connector that supports transfer speeds of up to 100 MBits/s.

The NI REM-11115 takes the required 5 VDC communication power from the BUS connector and consumes approximately 120 mA of current. The NI REM-11115 analog output module consumes about 2.04 watts of power when operating under typical conditions. The module requires a 24 VDC power supply and allows a voltage range of 19.2 to 30 VDC. Remote I/O hardware is widely used to add low-cost I/O. The controller can handle advanced tasks such as motion control and image processing.

Part number: 784749-01
