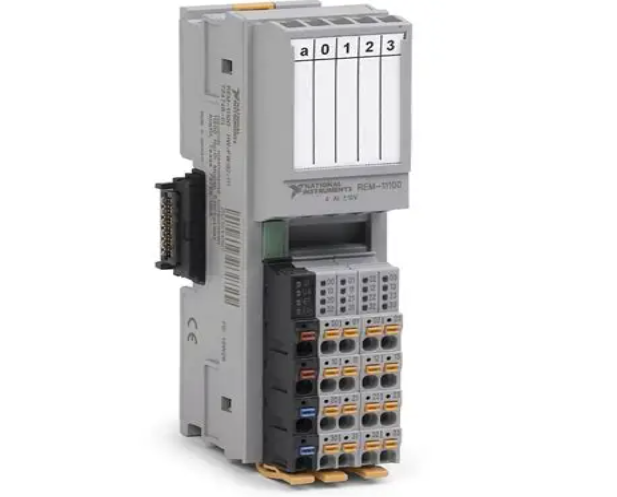

REM-11100 远程I/O电压输入模块 低成本模块化系统

【产品详情】

远程I/O电压输入模块；4通道、2线、3线、4线—REM‑11100是一款远程I/O电压输入模块。远程I/O系统是用于简单机器控制和测量的低成本模块化系统，远程I/O系统由EtherCAT总线耦合器和安装在DIN导轨上的模块组成。REM-11100可通过CompactRIO控制器或工业控制器等实时控制器进行控制。您可使用远程I/O来为简单的任务添加低成本I/O，而控制器负责处理高级任务，如图像处理、运动控制以及高速或特殊测量。该模块采用2线、3线和4线弹簧接线端子连接方式，具有一个用于传感器的内置电源、四个可选输入范围和同步采样功能。

National Instruments REM-11100（部件号：784748-01）是一款电压输入模块，具有 4 线、2 线和 3 线弹簧端子连接功能。该模块专门设计用于NI远程I/O系统。远程I/O是NI专有的模块化I/O系统，用于工业自动化、机器控制和测量。

NI REM-11100 是 一 款 4 通道 模 块， 可 轻松 与 其他 远程 I/ O 模 块 结合 使用 。该模块和远程 I/O 可以以更低的成本为您提供更大的灵活性。使用此系统，您不必为不太关键和复杂的任务部署昂贵的专用连接器。

NI REM-11100 电压输入模块可以通过 EtherCAT 轻松连接到其对应设备和其余控制网络，EtherCAT 是广泛使用并推荐用于工业应用的以太网标准。该模块允许您从四个输入范围之一中进行选择：±5V、0 至 5 V、0 至 10 V 和 ±10V。NI REM-11100 可以 为 直接 连接 的 传感器 提供 所需 的 电源。您可以轻松地将该模块和其他类似模块集成到您现有的控制系统中，因为它带有一个 EtherCAT 总线耦合器。

REM-11100 电压输入模块可以很容易地成为基于 DCS 或 PLC 的复杂控制系统的一部分。该模块具有一个 16 位 A/D 转换器和一个 30 Hz 输入滤波器。在 典型 操作 条件 和 典型 配置 下， NI REM-11100 最大 功耗 为 1.83 瓦。

REM-11100 远程I/O电压输入模块 低成本模块化系统

【英文介绍】

Remote I/O voltage input module; 4-channel, 2-wire, 3-wire, 4-wire - REM‑11100 is a remote I/O voltage input module. A low-cost modular system for simple machine control and measurement, the remote I/O system consists of EtherCAT bus couplers and modules mounted on DIN rails. The REM-11100 can be controlled by real-time controllers such as CompactRIO controllers or industrial controllers. You can use remote I/O to add low-cost I/O to simple tasks, while the controller handles advanced tasks such as image processing, motion control, and high-speed or special measurements. The module is connected with 2 -, 3 - and 4-wire spring terminals and features a built-in power supply for the sensor, four selectable input ranges and synchronous sampling.

National Instruments REM-11100 (Part number: 784748-01) is a voltage input module with 4-wire, 2-wire and 3-wire spring terminal connections. This module is specifically designed for NI remote I/O systems. Remote I/O is NI's proprietary modular I/O system for industrial automation, machine control and measurement.

The NI REM-11100 is a 4-channel module that can be easily combined with other remote I/ O modules. This module and remote I/O can give you more flexibility at a lower cost. With this system, you don't have to deploy expensive dedicated connectors for less critical and complex tasks.

The NI REM-11100 voltage input module can be easily connected to its corresponding device and the rest of the control network via EtherCAT, a widely used Ethernet standard recommended for industrial applications. The module allows you to choose from one of four input ranges: ±5V, 0 to 5V, 0 to 10V, and ±10V. The NI REM-11100 provides the power needed for directly connected sensors. You can easily integrate this module and others like it into your existing control system because it comes with an EtherCAT bus coupler.

The REM-11100 voltage input module can easily be part of a complex control system based on DCS or PLCS. The module has A 16-bit A/D converter and a 30 Hz input filter. Under typical operating conditions and in typical configurations, the NI REM-11100 has a maximum power consumption of 1.83 watts.
