RMC-8354 外部控制器 可针对高速数据流

【产品详情】

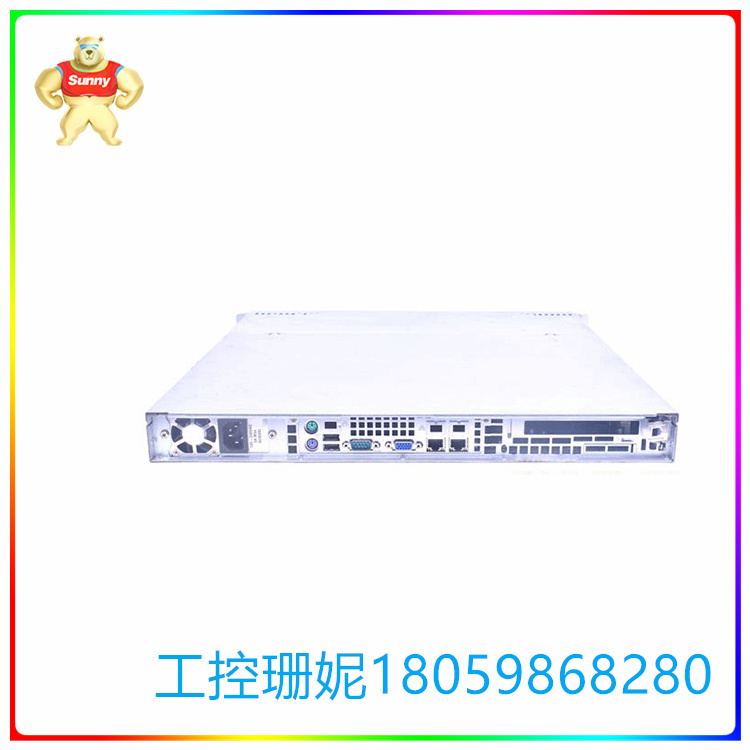

RMC-8354是一款针对PXI或PXI Express系统的1U机架安装控制器，用于需要机架安装控制器的测试和测量应用。 它搭载Intel Core i7-860四核处理器，提供了DDR3 RAM、两个板载千兆位以太网和可移动SATA / II硬盘驱动器。 它还支持RAID阵列，可针对高速数据流或数据冗余配置多个硬盘驱动器。

NI RMC-8354（部件号：781650-33）配备DDR3 RAM和四核Intel CPU，是PXI系统的外部控制器。该控制器是基于 PC 服务器的 1U 控制器，配备 1 GB RAM 和 500 GB 存储空间。因此， NI RMC-8354 以 紧凑 的 机架 安装 尺寸 提供 了 高性能 PC 的 功能， 可 通过 NI 远程 控制器 控制 PXIe 或 PXI 系统。

CPU 是 Intel Core i7-860 CPU，它有 4 个内核，一个 8 MB 缓存，可以以 2.8 GHz 的最大时钟速度或频率运行。NI RMC-8354 基于 Intel 3420 芯片组，该 芯片组 具有 1 个 PCIe 2.0 插槽、 4 个 DIMM 插槽 和 各种 板载 I/ O 接口。这款用于PXI的外部控制器集成了Matrox G200eW图形控制器。对于以太网连接，还提供了冗余的英特尔 82574L 以太网控制器。NI 用于 PXI 的 RMC-8354 外部 控制器 具有 多种 电源 管理 功能， 包括 内部 / 外部 调制解调 器 振 响、 主 开关 覆盖 机制、 Wake-On-LAN 接头 等。该外部控制器根据系统的活动自动进入睡眠模式，从而降低功耗。

NI 用于 PXI 的 RMC-8354 外部 控制器 的 前 面板 包含 各种 I/ O 端口、 指示 LED 和 开关。该外部控制器带有复杂的硬件资源组合，包括存储和 RAM。但是，用户可以通过添加多个硬盘驱动器来选择额外的 RAM 和额外的存储来升级系统的整体性能。

RMC-8354 外部控制器 可针对高速数据流

【英文介绍】

The RMC-8354 is a 1U rack-mount controller for PXI or PXI Express systems for test and measurement applications that require rack-mount controllers. It runs on an Intel Core i7-860 quad-core processor and offers DDR3 RAM, two on-board gigabit Ethernet, and a removable SATA/II hard drive. It also supports RAID arrays and can be configured with multiple hard drives for high-speed data streaming or data redundancy.

The NI RC-8354 (Part number: 781650-33) is equipped with DDR3 RAM and quad-core Intel CPU and is the external controller for PXI systems. The controller is a PC server-based 1U controller with 1 GB of RAM and 500 GB of storage. As a result, the NI RMC-8354 provides the functionality of a high-performance PC in a compact rack-mount size, allowing you to control PXIe or PXI systems from an NI remote controller.

The CPU is an Intel Core i7-860 CPU, which has four cores, an 8 MB cache, and can run at a maximum clock speed or frequency of 2.8 GHz. The NI RMC-8354 is based on the Intel 3420 chipset, which has one PCIe 2.0 slot, four DIMM slots, and various on-board I/ O interfaces. This external controller for PXI integrates the Matrox G200eW graphics controller. For Ethernet connectivity, a redundant Intel 82574L Ethernet controller is also available. NI's RMC-8354 external controller for PXI has a variety of power management features, including internal/external modulator ringing, master switch override mechanism, Wake-On-LAN connectors, and more. This external controller automatically goes into sleep mode based on the activity of the system, thus reducing power consumption.

The front panel of NI's RMC-8354 external controller for PXI contains various I/ O ports, indicating leds, and switches. This external controller comes with a complex combination of hardware resources, including storage and RAM. However, users can upgrade the overall performance of the system by adding multiple hard drives with the option of additional RAM and additional storage.

RMC-8354 外部控制器 可针对高速数据流
