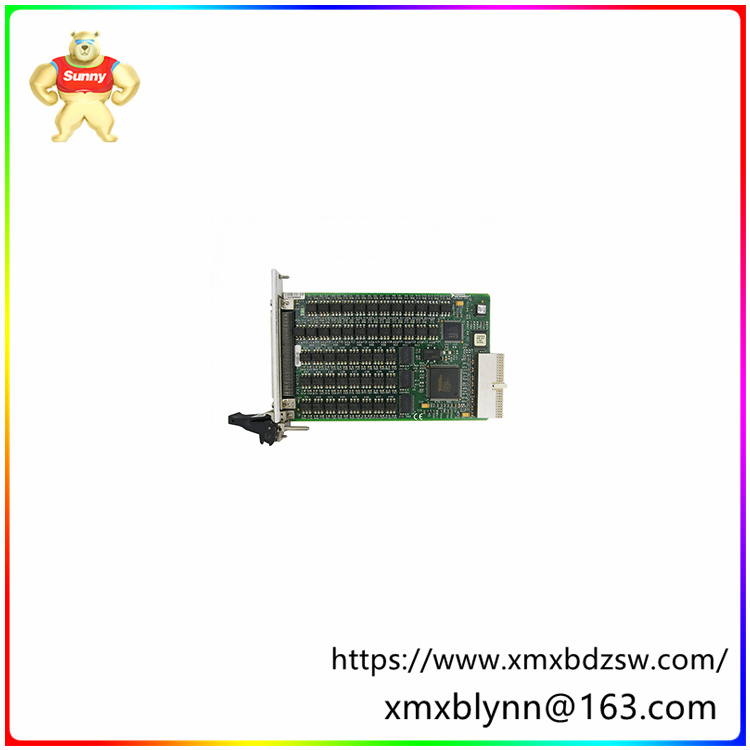

>>>>>型号:PXI-6509 数字 I/ O 模 块 提供的96通道数字I/O
[产品说明]
品牌： NI
型号：PXI-6509
产品类型： 数字 I/ O 模 块
付款方式：电汇，西联
汇款 装运港：中国厦门
交货时间：1-3个工作日
条件：全新和 100% 原始
保修：12 个月
NI 6509是一个96位高驱动数字输入/输出(DIO)装置。
NI 6509具有96条TTL/ cmos兼容数字I/O线，24 mA高驱动输出，数字滤波，可编程上电状态，变化检测，和看门狗定时器。
PXI-6509 数字 I/ O 模 块 配备 了 看门 狗 定 时 器， 数字 滤波 、 变化 检测 和 各种 其它 功能。可以实施数字滤波以消除输入信息上的错误。如果此功能与更改检测一起使用，则数字滤波可以额外减少要评估和处理的修改量。允许在用户应用需要多少条输入线时进行数字滤波。这些线路的定时间隔范围为 400 ns 至 200 ms。 使用更改检测功能时，请务必认识到大量更改检测会降低系统的性能水平。因此，可以使用数字滤波来减少噪声输入线。NI 设备 配备 一个 100 引脚 母 0.050 系列 SCSI I/ O 连接器。
PXI-6509适合在多种场合中使用，特别是那些需要高精度数字输入/输出的应用。以下是一些可能的应用场合：
工业控制：PXI-6509的高电流驱动能力使其特别适合驱动输入阻抗低的负载电路，如固态继电器，因此在工业控制领域具有广泛的应用。
制造测试：PXI-6509提供的96通道数字I/O，兼容各种电压和隔离等级，使其成为制造测试中的理想选择。
航空航天：PXI-6509的精确性和可靠性使其成为航空航天领域中的关键测试和测量设备。
实验室研究：在科学研究和实验室环境中，PXI-6509可以用于各种需要高精度数字I/O的测试和测量任务。
[其他型号推荐]

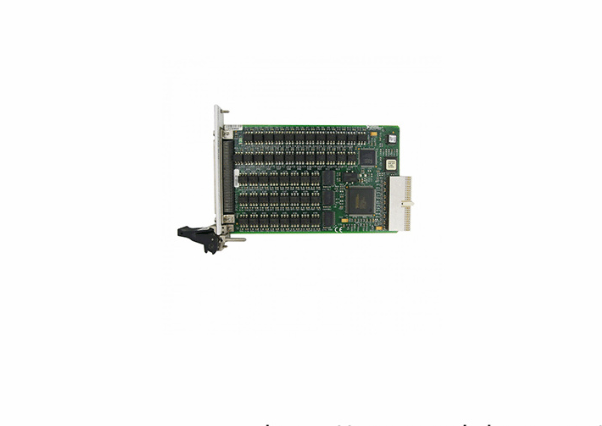

>>>>> Model: 96-channel digital I/O provided by the PXI-6509 Digital I/O module
Brand: NI
Model: PXI-6509
Product type: Digital I/ O modules
Payment method: Wire transfer, Western Union
Port of shipment for remittance: Xiamen, China
Delivery time: 1-3 working days
Condition: New and 100% original
Warranty: 12 months
The NI 6509 is a 96-bit high-drive digital input/output (DIO) device.
The NI 6509 features 96 TTL/ CMOS-compatible digital I/O lines, 24 mA high drive output, digital filtering, programmable power-on status, change detection, and a watchdog timer.
The PXI-6509 digital I/ O module is equipped with a watchdog timer, digital filtering, change detection, and various other functions. Digital filtering can be implemented to eliminate errors in input information. If this feature is used in conjunction with change detection, digital filtering can additional reduce the amount of modifications to be evaluated and processed. Allows digital filtering when the user applies how many input lines are required. These lines have timing intervals ranging from 400 ns to 200 ms. When using change detection, it is important to recognize that a large number of change detection can reduce the performance level of your system. Therefore, digital filtering can be used to reduce noise input lines. NI devices are equipped with a 100-pin female 0.050 Series SCSI I/ O connector.
The PXI-6509 is suitable for use in a variety of applications, especially those requiring high precision digital input/output. Here are some possible applications:
Industrial control: The high current drive capability of the PXI-6509 makes it particularly suitable for driving load circuits with low input impedance, such as solid-state relays, so it has a wide range of applications in the field of industrial control.
Manufacturing Testing: The 96-channel digital I/O offered by the PXI-6509 is compatible with a wide range of voltages and isolation levels, making it ideal for manufacturing testing.
Aerospace: The accuracy and reliability of the PXI-6509 make it a key test and measurement device in the aerospace industry.
Laboratory research: In scientific research and laboratory environments, the PXI-6509 can be used for a variety of test and measurement tasks requiring high-precision digital I/O.
