PCI-5911 100 MHz高速数字化仪 具备丰富的软件支持

☆型号：PCI-5911    100 MHz高速数字化仪     具备丰富的软件支持

【产品详情】

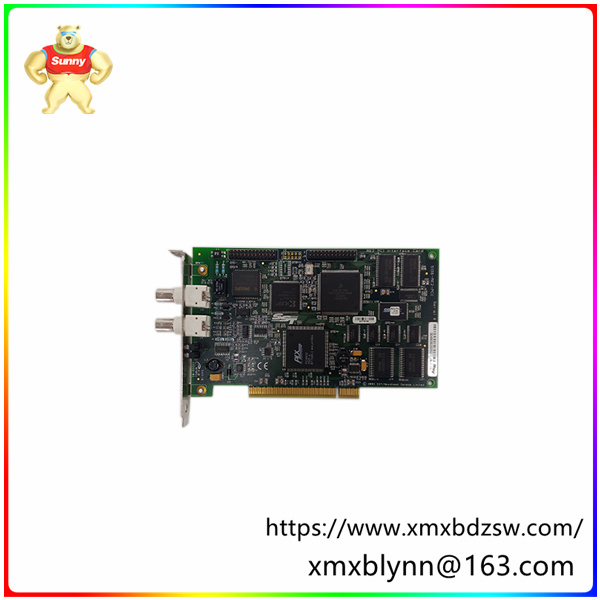

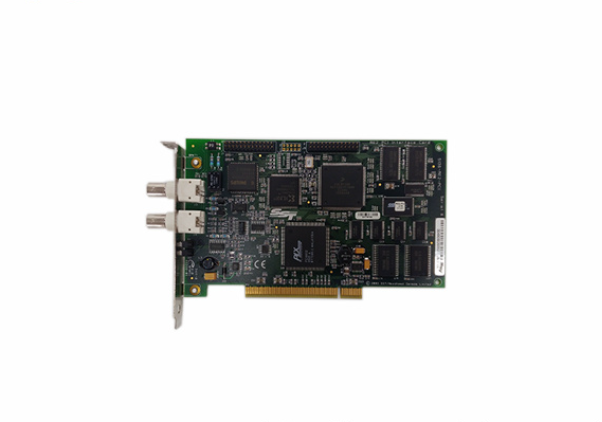

PCI-5911（部件号：777478-02）是一款100 MHz高速数字化仪，具有可变分辨率和速度。该型号具有一个灵活的分辨率通道，可在 100 MS/s 时以 8 位运行，以 10 kS/s 的速度以 21 位运行。除了 100 MS/s 的实时采样外，该数字化仪还可以以 1 GS/s 的速度采集随机交错数据，

PCI-5911在多个领域都有广泛的应用，如科研、工业自动化、通信等。其高速性能和稳定可靠的工作特点使得它成为处理高速、复杂信号的理想选择。此外，PCI-5911还具备丰富的软件支持，用户可以轻松实现设备的配置、控制和数据处理。

PCI 5911 可通过三个源触发：软件、模拟和数字控制。模拟触发器通过比较一个或两个阈值得出，从而产生滞后条件。数字触发器来自外部数字连接器或RTSI总线。 NI PCI-5911 利用 了 散 点 收集 功能， 可 实现 比 RS-232 和 GPIB 更快 的 数据 速率。此功能使数字化仪能够对整体测试时间产生积极影响。

该模型使用NI-SCOPE仪器驱动程序运行，该驱动程序与LabVIEW、Measurement Studio、Microsoft C++或Microsoft Visual Basic等软件包/应用开发环境（ADE）兼容。该设备的预热时间为 15 分钟。它可以自我校准，但建议每年至少进行一次外部校准。NI 设备 尺寸 为 13.3 x 3.9 英寸。在物理维度上。它的推荐工作温度范围为 5 °C 至 40 °C，存储温度范围为 –20 °C 至 65 °C.PCI-5911

【英文介绍】

The PCI-5911 (Part number: 777478-02) is a 100 MHz high-speed digitizer with variable resolution and speed. This model has a flexible resolution channel that can operate at 8 bits at 100 MS/s and 21 bits at 10 kS/s. In addition to real-time sampling of 100 MS/s, the digitizer can also acquire random interlaced data at 1 GS/s,

PCI-5911 has a wide range of applications in many fields, such as scientific research, industrial automation, communications and so on. Its high-speed performance and stable and reliable operation characteristics make it an ideal choice for processing high-speed and complex signals. In addition, the PCI-5911 also has a wealth of software support, users can easily configure the device, control and data processing.

PCI 5911 can be triggered by three sources: software, analog, and digital controls. An analog trigger produces a lag condition by comparing one or two thresholds. The digital trigger comes from an external digital connector or RTSI bus. The NI PCI-5911 utilizes scatter collection to achieve faster data rates than RS-232 and GPIB. This feature enables the digitizer to have a positive impact on the overall test time.

The model runs with an NI-SCOPE instrument driver that is compatible with a package/application development environment (ADE) such as LabVIEW, Measurement Studio, Microsoft C++, or Microsoft Visual Basic. The device has a warm-up time of 15 minutes. It can self-calibrate, but external calibration at least once a year is recommended. NI devices measure 13.3 x 3.9 inches. In the physical dimension. It has a recommended operating temperature range of 5 °C to 40 °C and a storage temperature range of -20 °C to 65 ° C.PI-5911
