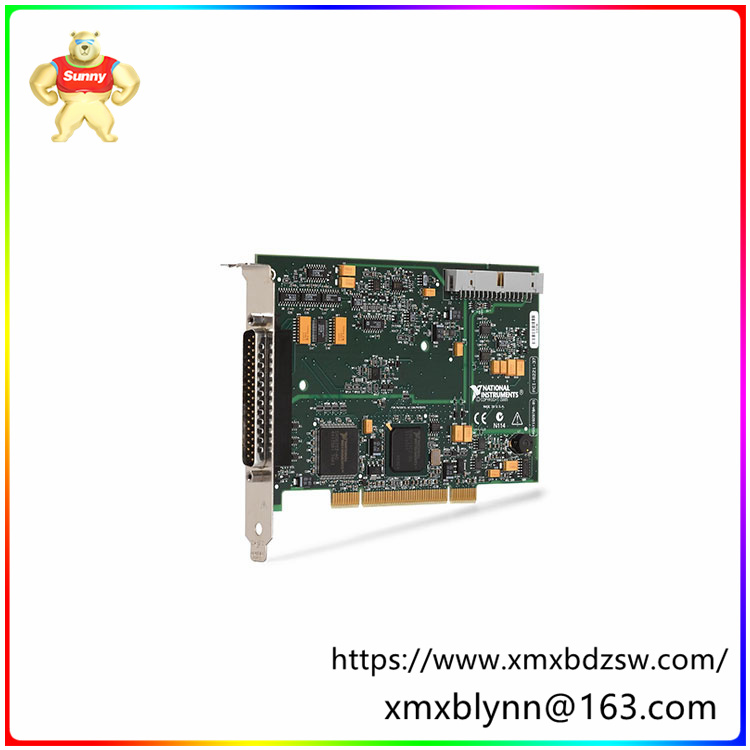

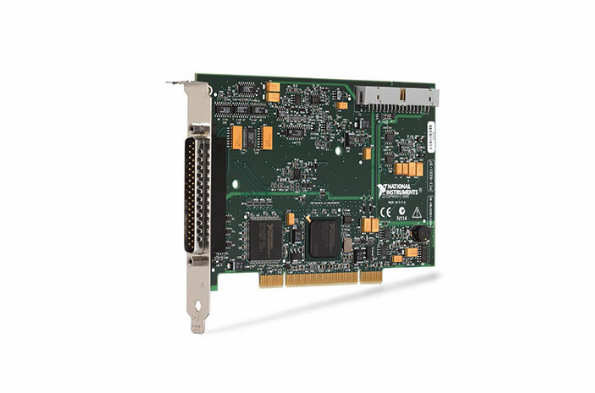

☆型号:PCI-6033E 多功能数据采集器 具有64个单端和32个差分模拟输入通道
【产品详情】
NI PCI-6033E (部件号: 777516-01) 多功能 DAQ 具有 64 个 单 端 和 32 个 差分 模拟 输入 通道, 最大 采样率 为 每秒 500 kS, 8 个 数字 I/ O, 2 个 24 位 计数器 / 定 时 器 和 0 个 模拟 输出 通道。这款 E 系列多功能 DAQ 具有直流输入耦合和过压保护。当过压保护上电时,该值为 ±25 V。另一方面,当过压保护断电时,该值为±15 V。PCI-6033E多功能DAQ具有100针母头0.05 D型I/O连接器。
特征:
8 个数字 I/O 线
2 个 24 位计数器/定时器
模拟/数字触发
National Instruments PCI-6033E高分辨率多功能DAQ卡采用E系列技术,提供高性能、可靠的数据采集功能,满足广泛的应用要求。用户可获得高达 100 kS/s、16 位分辨率和 64 个单端模拟输入。根据用户的硬盘类型,该板可以以高达 100 kS/s 的速率流式传输到磁盘。
PCI 6033E使用NI-DAQmx驱动程序软件运行,该软件与LabVIEW、LabWindows/CVI和Microsoft Visual Studio等软件包或应用开发环境(ADE)兼容。可以使用Measurement & Automation Explorer(MAX)工具配置设备硬件。
总的来说,PCI-6033E是一款功能强大、性能优异的数据采集模块,能够满足各种高速、高精度的数据采集需求。无论是科研实验还是工业应用,它都是一个值得考虑的优秀选择。
【英文介绍】
NI PCI-6033E (Part number: 777516-01) Multi-function DAQ with 64 single-ended and 32 differential analog input channels, a maximum sampling rate of 500 kS per second, 8 digital I/ O, 2 24-bit counters/timepieces and 0 analog output channels. This E Series multifunctional DAQ features DC input coupling and overvoltage protection. When the overvoltage protection is powered on, the value is ±25 V. On the other hand, when the overvoltage protection is powered off, the value is ±15 V. The PCI-6033E multifunctional DAQ features a 100-pin female 0.05D I/O connector.
Features:
8 digital I/O lines
2 24-bit counters/timers
Analog/digital trigger
The National Instruments PCI-6033E high-resolution multi-function DAQ card uses E-series technology to provide high performance, reliable data acquisition capabilities to meet a wide range of application requirements. Users get up to 100 kS/s, 16-bit resolution and 64 single-ended analog inputs. Depending on the user's hard drive type, the board can be streamed to the disk at a rate of up to 100 kS/s.
PCI 6033E runs with NI-DAQmx driver software that is compatible with packages or application development environments (ades) such as LabVIEW, LabWindows/CVI, and Microsoft Visual Studio. Device hardware can be configured using the Measurement & Automation Explorer (MAX) tool.
Overall, PCI-6033E is a powerful, high-performance data acquisition module that can meet a variety of high-speed, high-precision data acquisition needs. Whether it is scientific research experiments or industrial applications, it is an excellent choice worth considering.
