PCI-1200 多功能模拟和数字I/O板卡 提供两个模拟输出电压通道

>>>>>型号:PCI-1200       多功能模拟和数字I/O板卡     提供两个模拟输出电压通道

【功能描述】

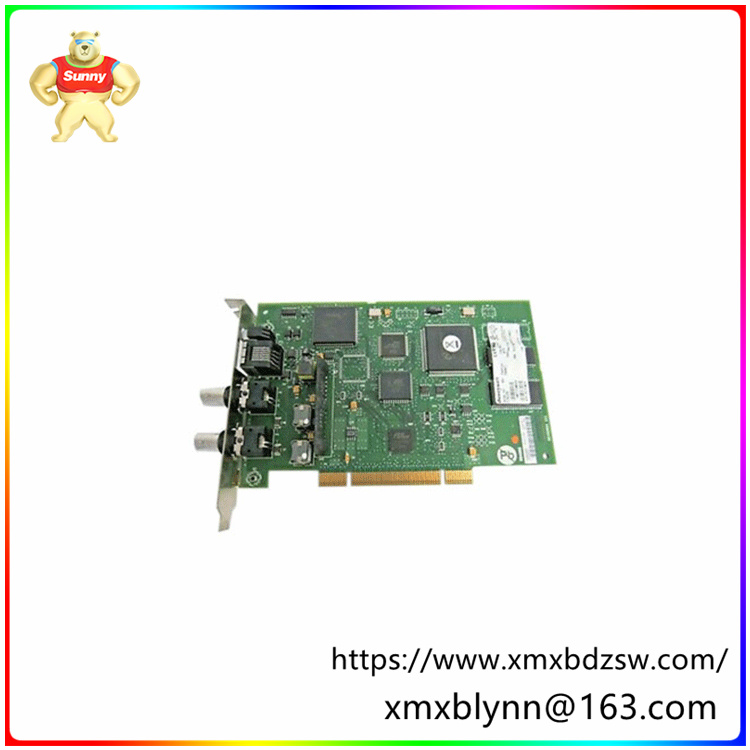

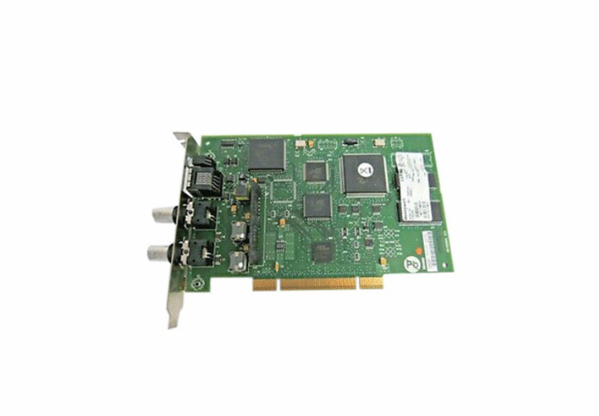

PCI-DAS1200多功能模拟和数字I/O板卡为PCI总线上的低成本、高速数据采集板设定了新标准。PCI-DAS1200 提供16个单端或8个差分12位模拟输入，采样率高达330 KHz,两个12位模拟输出和24位数字I/O,性能与成本高出50%的电路板相当或更高。

特点

●8差分/ 16单端模拟输入

●12位A/D分辨率

330 KHz采样率.

双通道12位模拟输出

●1024样品FIFO

●24位数字I/O

完全即插即用

在软件方面，PCI-1200板卡的功能可以通过使用NI的NI-DAQ得到充分利用。该软件配备了一个全面的功能库，用户可以从ADE调用这些功能，使用户能够利用多功能DAQ的所有功能。PCI-1200完全由软件配置，可自动分配中断电平和基本存储器地址等资源。因此，启动系统后无需执行任何配置步骤。

在软件电平复位或上电后，PCI-1200 DAQ板设置为双极性±5 V模拟输入范围和双极性±5 V模拟输出范围。提供两个模拟输出电压通道，允许用户单独配置每个模拟输出。因此，用户能够将PCI-1200的两个AO输出通道中的每一个配置为双极性或单极性输出。

PCI-1200 DAQ在+5 VDC时的功耗为425 mA。该模块采用从站式总线接口构建，物理尺寸为 17.45 x 10.56 厘米（6.87 x 4.16 英寸）。该设备的推荐工作温度范围为 0 至 50 °C，而推荐的存储温度范围为 –55 至 150 °C。 对于操作和储存条件，推荐的湿度范围为 5% 至 90%（非冷凝）。

【英文介绍】

The PCI-DAS1200 multi-function analog and digital I/O board sets a new standard for low-cost, high-speed data acquisition boards on the PCI bus. The PCI-DAS1200 offers 16 single-ended or eight differential 12-bit analog inputs with sampling rates up to 330 KHz, two 12-bit analog outputs, and 24-bit digital I/O for performance equal to or better than boards that cost 50 percent more.

peculiarity

●8 differential / 16 single-ended analog input

● 12-bit A/D resolution

330 KHz sampling rate.

Dual channel 12-bit analog output

●1024 sample FIFO

● 24-digit I/O

Totally plug and play

On the software side, the capabilities of the PCI-1200 board can be fully utilized by using NI's NI-DAQ. The software is equipped with a comprehensive library of features that users can invoke from ADE, enabling users to take advantage of all the capabilities of the multifunctional DAQ. The PCI-1200 is fully software-configured to automatically assign resources such as interrupt levels and base memory addresses. Therefore, you do not need to perform any configuration steps after booting the system.

After software level reset or power-on, the PCI-1200 DAQ board is set to a bipolar ±5 V analog input range and a bipolar ±5 V analog output range. Two analog output voltage channels are provided, allowing users to configure each analog output individually. As a result, users are able to configure each of the PCI-1200's two AO output channels as a bipolar or unipolar output.

The PCI-1200 DAQ has a power consumption of 425 mA at +5 VDC. The module is built with a slave bus interface and has a physical dimension of 17.45 x 10.56 cm (6.87 x 4.16 in). The recommended operating temperature range for the device is 0 to 50 °C, while the recommended storage temperature range is -55 to 150 °C. For operating and storage conditions, the recommended humidity range is 5% to 90% (non-condensing).
