PCI-DIO-32HS 数字I/O器件 每个通道提供可选的数据路径宽度

☆型号：PCI-DIO-32HS         数字I/O器件      每个通道提供可选的数据路径宽度

【产品详情】

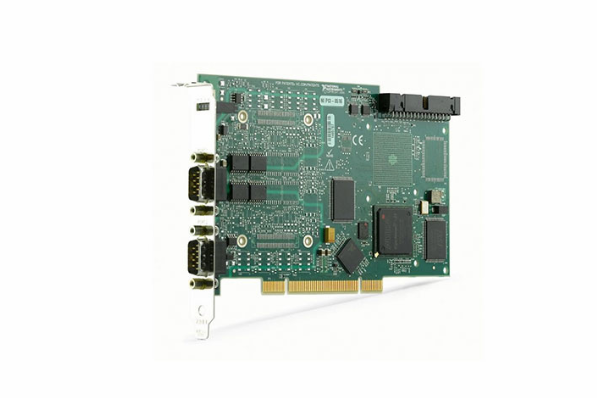

PCI-DIO-32HS，也称为PCI 6533（部件号：777314-01）是National Instruments的一款完全无跳线、无开关的数字I/O器件。该 型号 专为 CompactPCI 或 PXI 机 箱 和 PCI 总 线 而 设计。 PCI DIO-32HS 采用 NI 专有的 MITE PCI 接口， 提供 总 线 主 站 操作 、 突发 PCI 传输 和 高速 DMA（直接存储器访问）控制器。

该数字 I/ O 设备 配备 NI DAQ- DIO 芯片。National Instruments 的 DAQ-DIO 芯片配备握手、模式生成以及两个独立的数字输入和数字输出通道。每个通道提供可选的数据路径宽度、16 位和 32 位计数器、具有六种定时协议的握手控制器、24 mA 输出、星形/停止触发检测等。PCI DIO-32HS 的码型 I/O 和握手 I/O 功能允许用户通过时序控制输入或输出码型。

该器件提供的 32 条数字输入/输出线分为 4 个 8 位端口。对于握手或模式 I/O，这些端口可用于两个 8 位或两个 16 位组或一个 32 位组的配置。这些通道的模式I/O的最大速率高达2 MHz，电压电平为5 V TTL/CMOS。PCI DIO-32HS 上的数字传输由单个 68 针公头 SCSI-II 电缆连接器管理。此外，该数字I/O设备使用户能够独立选择数据和控制线路的上电状态。

该 设备 利用 RTSI 总线 或 PXI 触发 总线 接收 和 发送 触发 和 时钟 信号 进 入 和 发送 出 其他 连接 设备 的 触发 和 时钟 信号。因此，PCI DIO-32HS 还可用于构建具有大量数字输入和输出线路的同步系统。

PCI DIO-32HS使用NI-DAQ驱动程序软件运行，该软件与LabVIEW、LabWindows/CVI、ComponentWorks或VirtualBench等软件包/应用开发环境（ADE）兼容。该设备的推荐工作温度范围为 0 至 55°C。

National Instruments 已宣布 PCI-DIO-32HS 已宣布已停产，但该设备仍可在 Apex Waves 购买和维修。该设备尺寸为 6.9 x 4.2 英寸。在物理维度上。

【英文介绍】

The PCI-Dio-32HS, also known as PCI 6533 (Part number: 777314-01), is a fully jump-free, switchless digital I/O device from National Instruments. This model is designed for CompactPCI or PXI chassis and PCI cabling. The PCI DIO-32HS uses NI's proprietary MITE PCI interface to provide bus master station operation, burst PCI transport, and a high-speed DMA (Direct Memory Access) controller.

The digital I/ O device is equipped with a NI DAQ-DIO chip. National Instruments' DAQ-DIO chips are equipped with handshakes, pattern generation, and two separate digital input and digital output channels. Each channel offers optional data path widths, 16-bit and 32-bit counters, handshake controller with six timing protocols, 24 mA output, star/stop trigger detection, and more. The PCI DIO-32HS code type I/O and handshake I/O features allow the user to control the input or output code type through timing.

The 32 digital input/output lines provided by the device are divided into four 8-bit ports. For handshake or mode I/O, these ports can be used for configurations of two 8-bit or two 16-bit groups or one 32-bit group. The maximum mode I/O rate for these channels is up to 2 MHz and the voltage level is 5 V TTL/CMOS. Digital transmission on the PCI DIO-32HS is managed by a single 68-pin male SCSI-II cable connector. In addition, the digital I/O device enables the user to independently select the data and control the power-on state of the line.

The device uses the RTSI bus or the PXI trigger bus to receive and send trigger and clock signals in and out of other connected devices. Therefore, PCI DIO-32HS can also be used to build synchronous systems with a large number of digital input and output lines.

PCI DIO-32HS runs with NI-DAQ driver software that is compatible with packages/application development environments (ades) such as LabVIEW, LabWindows/CVI, ComponentWorks, or VirtualBench. The recommended operating temperature range for this device is 0 to 55°C.

National Instruments has announced that the PCI-DIO-32HS has been declared discontinued, but the device is still available for purchase and repair at Apex Waves. The device measures 6.9 x 4.2 inches. In the physical dimension.
