DS3800DMPK1E1D 可编程只读存储器模块 通用稳压板

☆型号：DS3800DMPK1E1D 可编程只读存储器模块  通用稳压板

【产品详情】

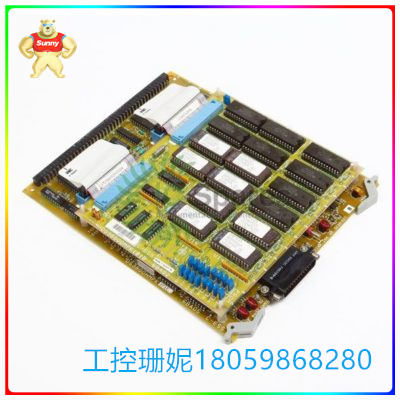

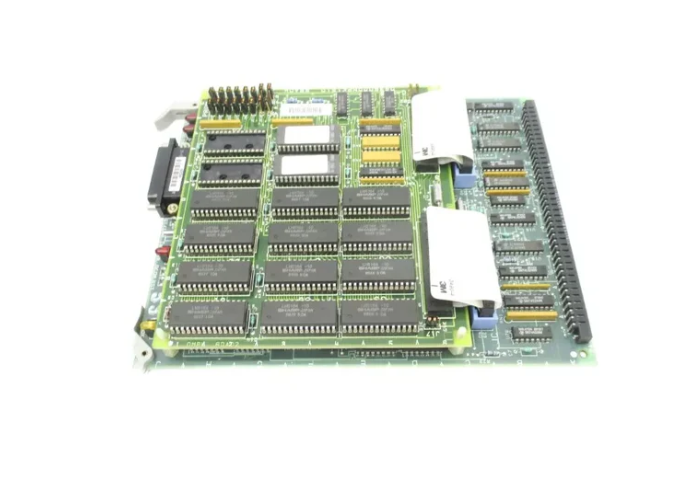

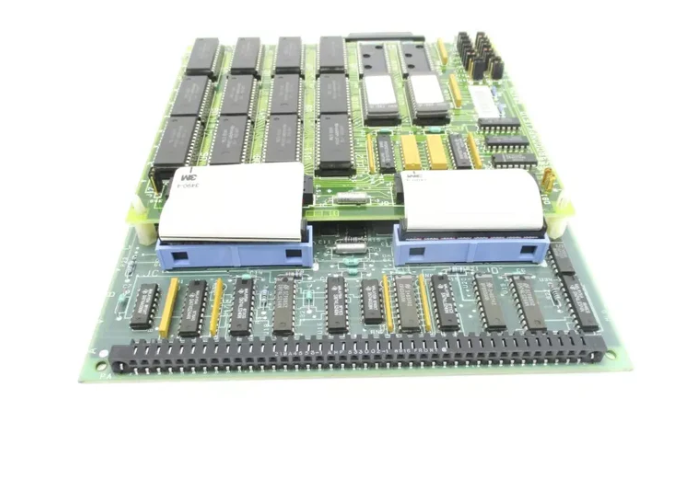

GE通用稳压板DS3800DMPK1E1D具有14个可擦除可编程只读存储器（EPROM）模块。GE 通用稳压板DS3800DMPK1E1D还装有 2 根 34 针带状电缆、2 个单针连接器和 17 个跳线。

更换的GE通用稳压板DS3800DMPK1E1D模块插槽中没有安装EPROM模块。插槽嵌入在电路板上，模块设计为根据需要安装或拆卸。要卸下模块，请在模块和模块两端的插座之间滑动一字螺丝刀。轻轻摇晃刀片，将模块从插座中抬起。然后，在模块的另一端执行相同的过程。立即将模块放入防静电袋中。模块上的数据很容易被静电损坏，袋子会防止静电进入模块。

在更换板上找到相同的插座，并将其与插座对齐。用手指轻轻将其按入插座。检查插座和模块之间的连接，它们之间是否有任何空间。如有必要，按下插座以确保与模块完全连接。安装模块时，将更换板放在扁平的防静电袋上。

您还必须检查有缺陷的电路板上的跳线，并注意每个跳线的位置。也就是说，请注意跳线是否覆盖引脚 1 和 2 或引脚 2 和 3。在替换板上找到相同的跳线，然后移动其上的跳线以匹配位置。

☆型号：DS3800DMPK1E1D 可编程只读存储器模块  通用稳压板

【英文介绍】

The GE Universal stability board DS3800DMPK1E1D features 14 erasable programmable read-only memory (EPROM) modules. The GE universal pressure stabilizer DS3800DMPK1E1D also has two 34-pin ribbon cables, two single-pin connectors, and 17 jumpers.

The EPROM module is not installed in the DS3800DMPK1E1D module slot of the new GE universal pressure stabilization board. The slots are embedded into the circuit board, and the modules are designed to be installed or removed as needed. To remove the module, slide the flat-head screwdriver between the module and the sockets on both ends of the module. Gently shake the blade to lift the module out of the socket. Then, the same process is performed on the other side of the module. Place the module in an ESD bag immediately. The data on the module is easily damaged by static electricity, and the bag will prevent static electricity from entering the module.

Find the same socket on the replacement board and align it with the socket. Gently press it into the socket with your fingers. Check the connection between the socket and the module to see if there is any space between them. If necessary, press the socket to ensure full connection to the module. Place the replacement board on a flat ESD bag when installing a module.

You must also check the jumpers on the defective circuit board and note the location of each jumper. That is, note whether the jumper covers pins 1 and 2 or pins 2 and 3. Find the same jumper on the replacement board, then move the jumper on it to match the position.

☆型号：DS3800DMPK1E1D 可编程只读存储器模块  通用稳压板
