PCIE-6351 多功能I/O设备 具有 PCI Express 接口

☆型号：PCIE-6351 多功能I/O设备 具有 PCI Express 接口

【产品详情】

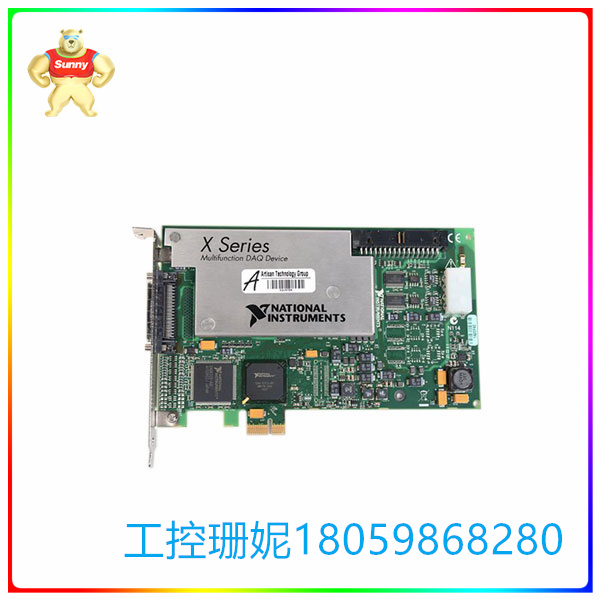

PCIe-6351（部件号：781048-01）是由National Instruments制造的X系列多功能I/O设备。该设备符合EMC标准，这些标准对于实验室中使用的电气设备至关重要。这些标准对于控制和测量目的也是必不可少的。NI致力于规划和开发可靠的产品。 NI PCIe-6351 的制造方式相同。

NI PCIe-6351 具有 PCI Express 接口，兼容 1 至 16 个 PCI Express 插槽。它使该器件能够通过 DMA 通道提供多达 16 条数字输入线和 8 条数字输出线。NI 设备 具有 16 个 差分 或 8 个 单端 模拟 输入 通道 （具有 16 位 分辨率， 最大 采样 率 为 每 秒 1.25 MS） 和 2 个 模拟 输出 通道， 同样 具有 16 位 分辨率， 最大 采样率 为 每秒 2.86 MS。NI PCIe-6351 还 具有 可 通过 任何 PFI 或 RSTI 进行 的 外部 数字 触发。这些触发器具有软件可选择的极性，适用于许多信号。外部数字触发器具有模拟输入和输出。这些输入和输出使器件能够引导和断开触发器。它还可以用作采样时钟时基和采样时钟。 NI PCIe-6351 可以 使用 其他 设备 总 线 接口 生成 触发 器。它使用RSTI作为输入和输出介质。该器件还具有锁相环，并配有一个 68 引脚 VHDCI I/O 连接器。

PCIe-6351使用NI-DAQmx 9.0驱动程序软件运行，该软件与LabVIEW等应用开发环境或其他软件选择兼容。

NI PCIe-6351 具有四个 32 位计数器/定时器，用于事件计数和 PWM，工作频率为 100 MHz。这些还包括频率、编码器等。此外，它还具有 1 个频率发生器通道。该器件通过驱动程序和应用软件提供出色的性能。它还采用NI-STC3技术构建。 NI PCIe-6351 可 完美 应用 于 测试 自动 化 和 控制 应用。该设备也适用于一般数据记录应用。它重 0.35 磅，尺寸为 3.9 x 6.6 英寸。在物理维度上。

☆型号：PCIE-6351 多功能I/O设备 具有 PCI Express 接口

【英文介绍】

The PCI-6351 (Part number: 781048-01) is an X-series multi-function I/O device manufactured by National Instruments. The equipment complies with EMC standards, which are critical for electrical equipment used in laboratories. These standards are also essential for control and measurement purposes. NI is committed to planning and developing reliable products. The NI PCI-6351 is manufactured in the same way.

The NI PCI-6351 has a PCI Express interface and is compatible with 1 to 16 PCI Express slots. It enables the device to provide up to 16 digital input lines and 8 digital output lines over a DMA channel. NI devices have 16 differential or 8 single-ended analog input channels (with 16-bit resolution and a maximum sampling rate of 1.25 MS per second) and 2 analog output channels, also with 16-bit resolution. The maximum sampling rate is 2.86 MS per second. The NI PCI-6351 also has an external digital trigger that can be performed via any PFI or RSTI. These triggers have software-selectable polarity and are suitable for many signals. An external digital trigger has analog inputs and outputs. These inputs and outputs enable the device to boot and disconnect the trigger. It can also be used as a sampling clock time base and a sampling clock. The NI PCI-6351 can use other device bus interfaces to generate triggers. It uses RSTI as input and output media. The device also features a phase-locked loop and is equipped with a 68-pin VHDCI I/O connector.

Pci-6351 runs with NI-DAQmx 9.0 driver software, which is compatible with application development environments such as LabVIEW or other software options.

The NI PCI-6351 features four 32-bit counters/timers for event counting and PWM and operates at 100 MHz. These also include frequencies, encoders, etc. In addition, it has a frequency generator channel. The device provides excellent performance through drivers and application software. It is also built with NI-STC3 technology. The NI PCI-6351 is ideal for test automation and control applications. The device is also suitable for general data recording applications. It weighs 0.35 pounds and measures 3.9 x 6.6 inches. In the physical dimension.

☆型号：PCIE-6351 多功能I/O设备 具有 PCI Express 接口
