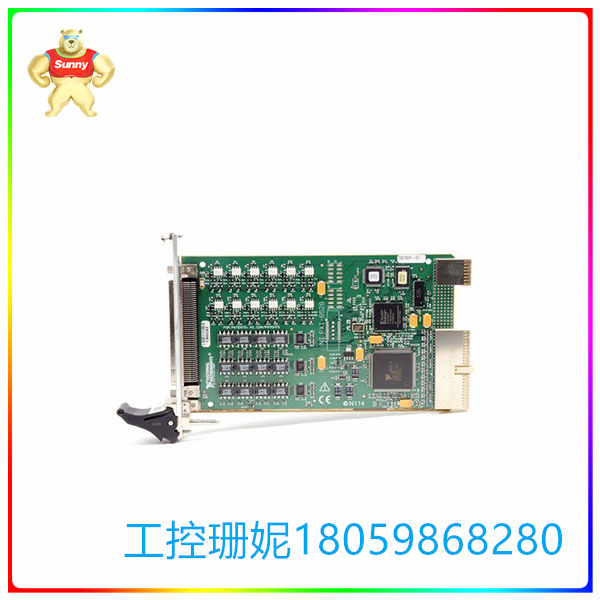

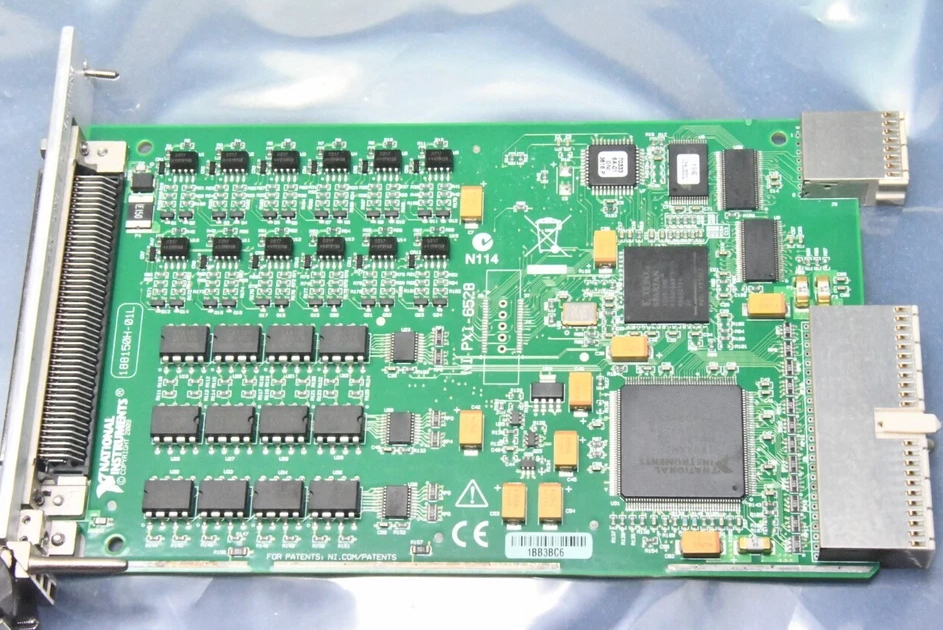

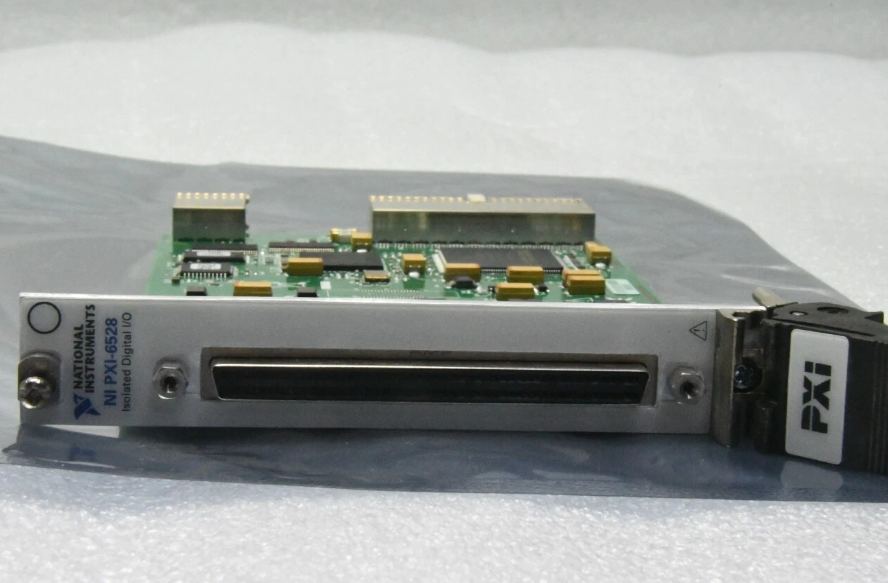

☆型号：PXI-6528 数字输入 / 输出 通道 数字 I/ O 模 块
【产品详情】
NI PXI-6528 （部件号： 778543-01） 是 一 款 PXI 数字 I/ O 模 块， 共 具有 48 个 通道： 24 个 光 隔离 数字 输入 和 24 个 固态 继电器 输出， 具有 通道 间 隔离 功能。该型号是一款经济高效的工业并行数字 I/O 模块，具有可编程上电状态。该模块具有坚固的配置，可提供多达 24 个隔离输入和输出通道。它还具有变化检测、实时系统集成 （RTSI） 和数字滤波功能。该型号非常适合实验室和工业环境中的高压开关和隔离。
该 PXI 数字 I/ O 模 块 的 I/ O 配置 无需 跳线 设置 ， 因为 该 模 块 完全 可 由 软件 配置 。NI PXI-6528 完全 符合 PCI 本地 总 线 和 PXI 硬件 标准 和 规范。它是一个智能系统，能够自动分配所有设备资源，包括输入电平和基址。
48通道，24路漏极/源极输入，24路漏极/源极输出，通道-通道隔离，PXI数字I/O模块
PXI‑6528是一款工业级并行数字I/O接口。 可编程上电状态功能可让用户使用软件来配置初始输出状态，以确保在连接到工业执行器时安全运行。 如果发生计算机或应用程序故障，PXI‑6528可以使用数字I/O看门狗切换到可配置的安全输出状态，以确保检测到故障状态并进行安全恢复。 可编程输入滤波器可消除毛刺/尖峰，并通过软件可选数字滤波器为数字开关/继电器提供去抖动。
与 NI 的 其他 测量 设备 一样， PXI-6528 附带 了 NI- DAQ 驱动 软件。该 软件 具有 广泛 的 VI 和 功能 集合， 用户 可 从 LabWindows™ 或 LabVIEW 等 软件 启动 这些 VI 和 功能， 以 编 程 PXI-6528 的 所有 可 编 程 功能。该设备配备了一个 100 针键控母头 SCSI 连接器。它的输入电压范围为 -60 VDC 至 60 VDC，最大输入电流为 3.0 mA
☆型号：PXI-6528 数字输入 / 输出 通道 数字 I/ O 模 块
【英文介绍】
The NI PXI-6528 (Part number: 778543-01) is a PXI digital I/ O module with a total of 48 channels: 24 optically isolated digital inputs and 24 solid-state relay outputs with inter-channel isolation. This model is a cost-effective industrial parallel digital I/O module with a programmable power-on state. The module has a robust configuration that provides up to 24 isolated input and output channels. It also has change detection, real-time System Integration (RTSI), and digital filtering capabilities. This model is ideal for high-voltage switching and isolation in laboratory and industrial environments.
The I/ O configuration of the PXI digital I/ O module does not require a jumper setup because the module is fully software-configurable. The NI PXI-6528 is fully compliant with PCI local bus and PXI hardware standards and specifications. It is an intelligent system that automatically allocates all device resources, including input levels and base addresses.
48 channels, 24 drain/source inputs, 24 drain/source outputs, channel-to-channel isolation, PXI digital I/O module
PXI‑6528 is an industrial-grade parallel digital I/O interface. The programmable power-on status feature allows users to configure the initial output status using software to ensure safe operation when connected to industrial actuators. In the event of a computer or application failure, the PXI‑6528 can be switched to a configurable security output state using a digital I/O watchdog to ensure that the failure state is detected and safely recovered. A programmable input filter eliminates burrs/spikes and provides de-jitter for digital switches/relays via a software-selectable digital filter.
As with NI's other measuring devices, the PXI-6528 comes with NI-DAQ driver software. The software has an extensive set of VI's and features that users can launch from software such as LabWindows™ or LabVIEW to program all of the programmable features of the PXI-6528. The device is equipped with a 100-pin keyed female SCSI connector. It has an input voltage range of -60 VDC to 60 VDC and a maximum input current of 3.0 mA
