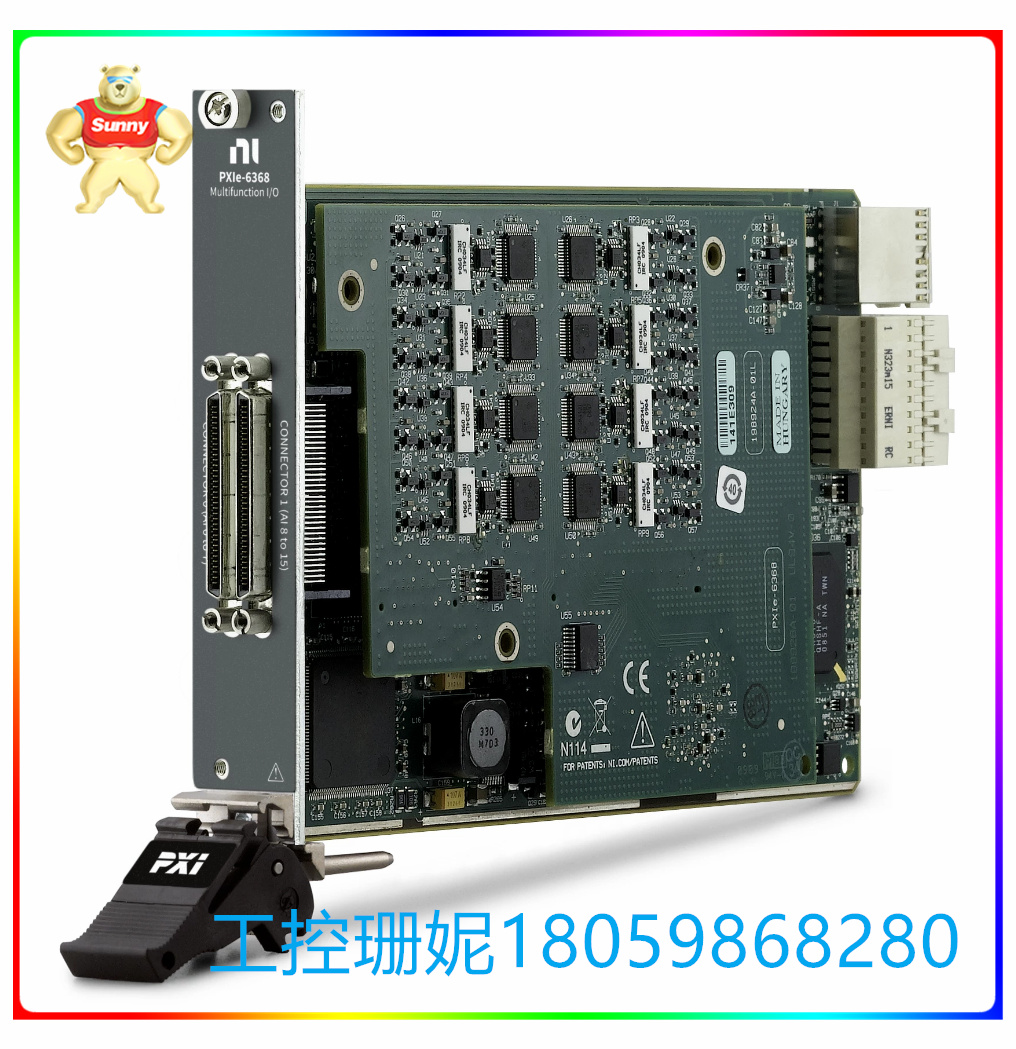

PXIE-6368 多功能DAQ设备 4路AO

☆型号：PXIE-6368 多功能DAQ设备 4路AO

【产品详情】

PXIe，16路AI（16位，2 MS/s/ch），4路AO，48路DIO，PXI多功能I/O模块

PXIe‑6368是一款同步采样的多功能DAQ设备。 该模块提供了模拟 I/O、数字I/O、四个32位计数器和模拟和数字触发。 板载NI‑STC3定时和同步技术提供高级定时功能，包括独立的模拟和数字定时引擎和可重新触发的测量任务。 PXIe‑6368适用于诸多应用，比如IF数字化；瞬时记录；通信行业的ISDN、ADSL和POTS制造测试；超声波和声纳测试以及高能物理。 随附的NI‑DAQmx驱动程序和配置实用程序简化了配置和测量。

PXIe-6368 （部件号：781058-01） 是 NI 推出的 一 款 同步 采样 多功能 I/ O 模 块。该模块可以进行多功能数据采集。NI PXIe-6368 具有 16 个 差分 模拟 输入 通道， 具有 16 位 分辨率。每个通道可以以每秒 2 MS 的最大采样率运行。该器件的输入电压范围为 ±1V 至 ±10V。PXIe-6368 的 模拟 输入 绝对 精度 高达 2688 μV。模拟输入FIFO缓冲器大小最多为8182个样本。

NI PXIe-6368 有 4 个 模拟 输出 通道， 每个 通道 的 速度 为 每 秒 3.3 MS。每个通道具有 16 位分辨率、10 ns 的定时分辨率和 50 ppm（采样率）的定时精度。它的模拟输出电压范围高达 10V。它嵌入了先进的定时和同步技术，以及应用软件和多核优化驱动程序。该模块通过高吞吐量 PCI Express 总线将性能提升到一个新的水平。 NI PXIe-6368 多功能 I/ O 模 块 有 48 条 数字 I/ O 线。每个端子都可以独立编程为输入或输出。该模块具有一个下拉电阻，典型值为50 kΩ，最小值为20 kΩ。该模块在多达两个引脚上提供高达 ±20 V 的输入电压保护，重量为 8.5 盎司。该器件配有 4 个通用计数器，分辨率为 32 位。

☆型号：PXIE-6368 多功能DAQ设备 4路AO

【英文介绍】

PXIe, 16-channel AI (16-bit, 2 MS/s/ch), 4-channel AO, 48-channel DIO, PXI multi-function I/O module

The PXIe 6368 is a multi-function DAQ device with synchronous sampling. The module provides analog I/O, digital I/O, four 32-bit counters, and analog and digital triggers. Onboard NI‑STC3 timing and synchronization technology provides advanced timing capabilities, including independent analog and digital timing engines and re-triggering measurement tasks. PXIe‑6368 is suitable for many applications, such as IF digitization; Instantaneous recording; ISDN, ADSL and POTS manufacturing tests for the communications industry; Ultrasonic and sonar testing and high energy physics. The included NI‑DAQmx driver and configuration utility simplify configuration and measurement.

The PXIe-6368 (Part number: 781058-01) is a synchronous sampling multi-function I/ O module from NI. This module can carry out multi-function data acquisition. The NI PXIe-6368 has 16 differential analog input channels with 16-bit resolution. Each channel can run at a maximum sampling rate of 2 MS per second. The input voltage range of the device is ±1V to ±10V. The PXIe-6368's analog input has an absolute accuracy of 2688 μV. The analog input FIFO buffer size is up to 8182 samples.

The NI PXIe-6368 has four analog output channels, each with a speed of 3.3 MS per second. Each channel has a 16-bit resolution, a timing resolution of 10 ns, and a timing accuracy of 50 ppm (sample rate). It has an analog output voltage range of up to 10V. It is embedded with advanced timing and synchronization technologies, as well as application software and multi-core optimization drivers. This module takes performance to the next level with a high throughput PCI Express bus. The NI PXIe-6368 multifunction I/ O module has 48 digital I/ O lines. Each terminal can be programmed independently as an input or output. The module has a pull-down resistor with a typical value of 50 kΩ and a minimum value of 20 kΩ. The module provides input voltage protection up to ±20 V on up to two pins and weighs 8.5 ounces. The device is equipped with four universal counters and a resolution of 32 bits.

☆型号：PXIE-6368 多功能DAQ设备 4路AO
