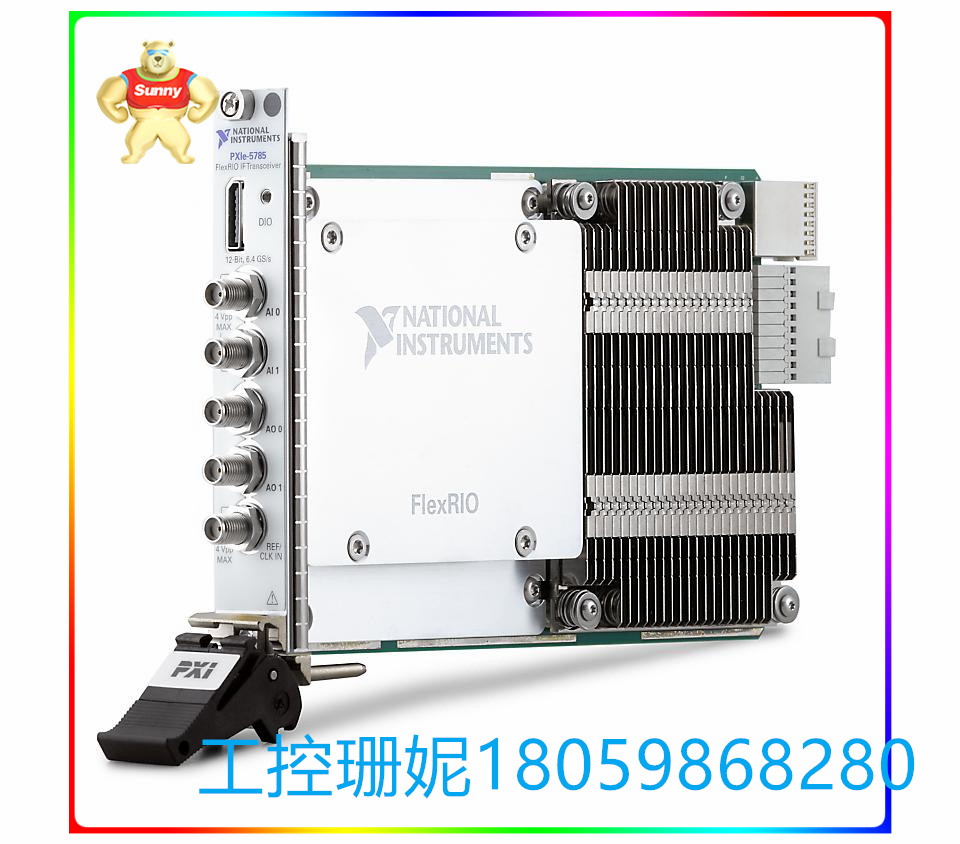

PXIe-5785 2通道PXI FlexRIO IF收发仪

☆型号：PXIe-5785 2通道PXI FlexRIO IF收发仪

【产品详情】

12位，6.4 GS/s，2通道PXI FlexRIO IF收发仪

PXIe-5785具有12位分辨率，能够直接采集高达6 GHz的信号以及生成高达3 GHz的信号。PXI FlexRIO IF收发仪可以在双通道模式工作，速率达3.2 GS/s，也可以在单通道交错模式下工作，速率达6.4 GS/s。PXIe-5785适用于需要宽带信号采集和生成以及多通道同步的应用，比如雷达、电子战和通信。FlexRIO驱动程序可支持波形采集和生成，您可使用LabVIEW可编程Xilinx Kintex UltraScale FPGA来开发自定义算法，以实现实时信号处理

☆型号：PXIe-5785 2通道PXI FlexRIO IF收发仪

【英文介绍】

12-bit, 6.4 GS/s, 2-channel PXI FlexRIO IF transceiver

The PXIe-5785 has a 12-bit resolution and can directly acquire signals up to 6 GHz and generate signals up to 3 GHz. The PXI FlexRIO IF transceiver can operate in dual-channel mode up to 3.2 GS/s, or in single-channel interleaving mode up to 6.4 GS/s. The PXIe-5785 is suitable for applications that require broadband signal acquisition and generation and multi-channel synchronization, such as radar, electronic warfare and communications. The FlexRIO driver supports waveform acquisition and generation, and you can use LabVIEW programmable Xilinx Kintex UltraScale FPGas to develop custom algorithms for real-time signal processing.

☆型号：PXIe-5785 2通道PXI FlexRIO IF收发仪
