☆型号：SHC68-68-EPM 多功能电缆 屏蔽高性能
【产品详情】

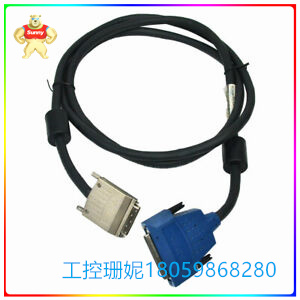

National Instruments SHC68-68-EPM 多功能电缆
NI SHC68-68-EPM 专为 68 针附件设计，是一款屏蔽高性能电缆。该电缆的长度为 0.5 米（部件号：192061-0R5）、1 米（部件号：192061-01）、2 米（部件号：192061-02）、5 米（部件号：192061-05）或 10 米（部件号：192061-10）。 该电缆具有 68 针公 VHDCI 后端连接和 68 针母头 D-SUB 前端连接。
用户可以部署此电缆来实现各种设备和配件之间的连接，包括 M 系列设备、X 系列设备、S 系列设备（仅限特定型号）和 DAQCards。SHC68-68-EPM 电缆 设计 有 数字 双绞 线 对 和 单独 屏蔽 模拟 输入 对 的 设计， 可 与 高性能 NI 设备 配合 使用 。数字双绞线具有以下规格：差分阻抗为107欧姆，互电容标称值为14.5 pF/ft，导体直流电阻在20°C温度下标称值为0.099欧姆/英尺，标称时延时为1.55 ns/ft。单独屏蔽的模拟输入对具有以下规格：差分阻抗为66欧姆，互电容为23.0 pF/ft标称值，导体直流电阻为0.099 Ohms/ft标称值，标称值为1.55 ns/ft。NI SHC68-68-EPM 多功能 电缆 推荐 用于 需要 高速 和 高频 信号 传输 且 精度 无与伦比 的 应用。该电缆的屏蔽特性使其成为电磁干扰会影响信号完整性的工业应用的理想解决方案。
☆型号：SHC68-68-EPM 多功能电缆 屏蔽高性能
【英文介绍】
National Instruments SHC68-68-EPM multi-function cable
The NI SHC68-68-EPM is a shielded high performance cable designed for 68-pin accessories. The cable is available in lengths of 0.5 m (Part number: 192061-0R5), 1 m (Part number: 192061-01), 2 m (Part number: 192061-02), 5 m (part number: 192061-05) or 10 m (part number: 192061-10). The cable has a 68-pin male VHDCI back end connection and 68-pin female D-SUB front end connection.
Users can deploy this cable to enable connectivity between various devices and accessories, including M-series devices, X-Series devices, S-Series devices (specific models only), and DAQCards. The SHC68-68-EPM cable design has digital twisted-pair and individually shielded analog input pair designs for use with high performance NI equipment. Digital twisted pair has the following specifications: differential impedance is 107 ohms, mutual capacitance is nominal at 14.5 pF/ft, conductor DC resistance is nominal at 20°C at 0.099 ohms /ft, and nominal time delay is 1.55 ns/ft. Individually shielded analog input pairs have the following specifications: differential impedance of 66 Ohms, mutual capacitance of 23.0 pF/ft nominal, conductor DC resistance of 0.099 Ohms/ft nominal, 1.55 ns/ft nominal. The NI SHC68-68-EPM multifunctional cable is recommended for applications requiring high-speed and high-frequency signal transmission with unmatched accuracy. The shielding properties of the cable make it an ideal solution for industrial applications where electromagnetic interference can affect signal integrity.
