☆型号:PCI-6220 多功能数据采集系统 提高测量精度
【产品详情】

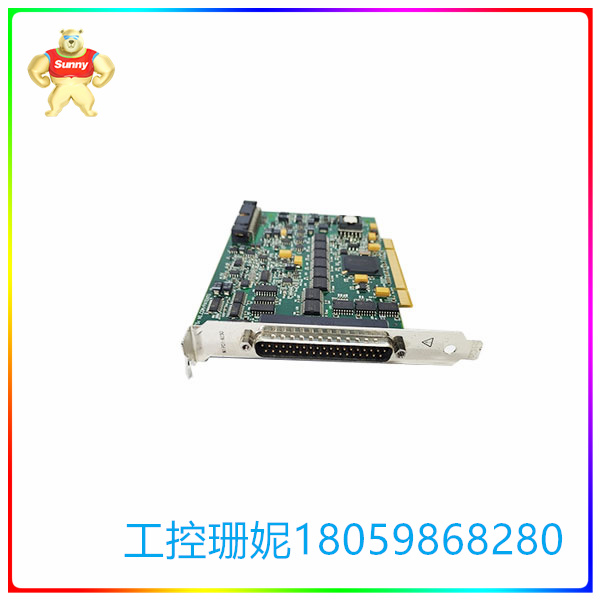

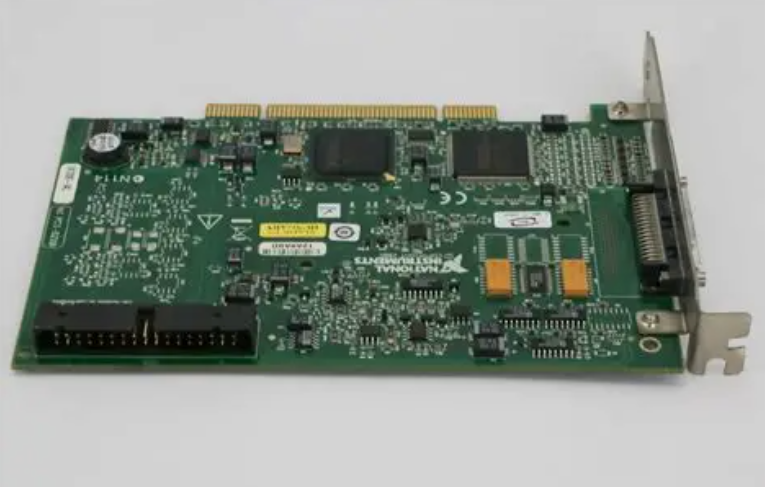

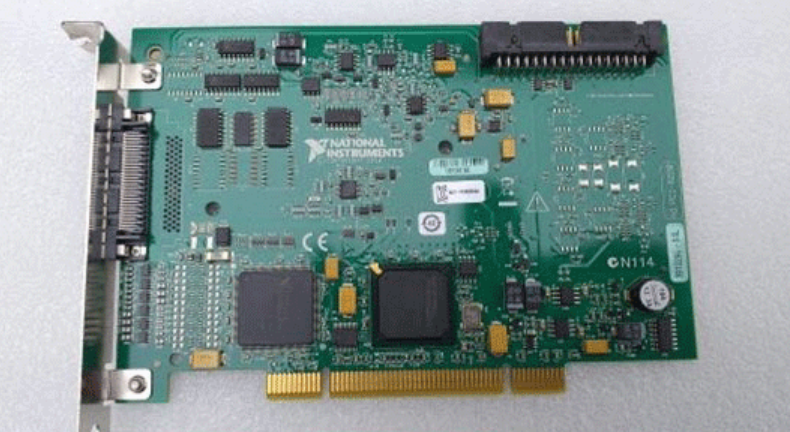

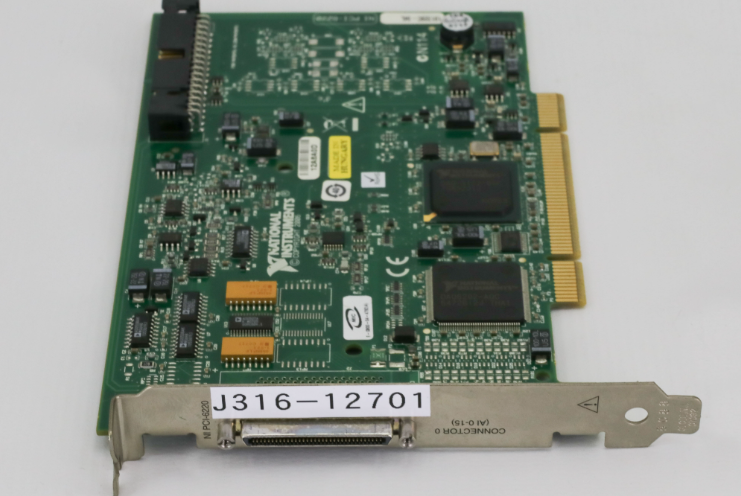

National Instruments PCI-6220 多功能数据采集系统
National Instruments PCI-6220(部件号:779065-01、191329-04)是M系列的多功能DAQ。该型号配备 24 个数字 I/O、16 个模拟输入(16 个单端或 8 个差分)连接器,并提供相关的数字 I/O。此外,该器件还具有两个 32 位计数器/定时器。NI PCI 6220 DAQ 是 一 款 可靠 的 DAQ, 可 应用 从 简单 的 实验 室 自动 化 到 制造 测试 和 设计 验证。使用该模型,可以通过 SCC 信号调理模块添加高压测量功能和传感器。为了提高测量精度,还采用了NI-MCal校准技术。
PCI 6220 National Instruments 设计 用于 多种 操作 系统, 并 采用 了 三 种 驱动 程序 选项, 包括 测量 硬件 DDK、 NI- DAQmx 和 NI- DAQmx Base。NI PCI-6220 M 系列 DAQ 虽然 是 一 款 低成本 的 数据 采集 设备, 但 它 具有 先进 和 创新 的 NI 功能, 如 STC 系统 控制器 和 PGIA 2 可 编 程 放大器。该器件可通过其直流耦合模拟输入在单通道模式或多通道模式下以每秒 250 kS 的采样率采集样本。它配备了一个 68 针 VHDCI I/O 连接器。
PCI 6220 NI 提供 针对 其 所有 检测 和 模拟 输入 通道 的 集成 保护。该型号设置为在器件开启时以 ±25 V 启动,在器件关闭时以 ±15 V 启动。这款多功能DAQ具有全面的触发产品组合,因此可以接收来自任何PFI和RTSI的外部数字触发。对于器件到器件触发,还提供了特殊的RTSI触发总线RTSI <0...7>。除此之外,NI PCI-6220 还具有 6 个 DMA 通道,其中 6 个可用于数字输入、数字输出、模拟输入、计数器/时间 0 和计数器/定时器 1。该设备的建议预热时间为 15 分钟,应至少每年校准一次。建议工作温度范围为 0 ºC 至 55 ºC。
☆型号:PCI-6220 多功能数据采集系统 提高测量精度
【英文介绍】
National Instruments PCI-6220 multi-function data acquisition system
The National Instruments PCI-6220 (Part number: 779065-01, 191329-04) is a versatile DAQ for the M series. The model is equipped with 24 digital I/O, 16 analog input (16 single-ended or 8 differential) connectors, and provides associated digital I/O. In addition, the device has two 32-bit counters/timers. The NI PCI 6220 DAQ is a reliable DAQ for applications ranging from simple lab automation to manufacturing testing and design validation. Using this model, high voltage measurement functions and sensors can be added via the SCC signal conditioning module. In order to improve the measurement accuracy, NI-MCal calibration technology is also used.
PCI 6220 National Instruments is designed for multiple operating systems and features three driver options, including Measurement hardware DDK, NI-DAQmx, and NI-DAQmx Base. The NI PCI-6220 M Series DAQ, while a low-cost data acquisition device, features advanced and innovative NI features such as the STC system controller and the PGIA 2 programmable amplifier. The device can collect samples at a sampling rate of 250 kS per second in either single-channel mode or multi-channel mode through its DC-coupled analog input. It comes with a 68-pin VHDCI I/O connector.
The PCI 6220 NI provides integrated protection for all of its detection and analog input channels. This model is set to start at ±25 V when the device is turned on and ±15 V when the device is turned off. This versatile DAQ has a comprehensive trigger portfolio, so it can receive external digital triggers from any PFI and RTSI. For device-to-device triggering, a special RTSI trigger bus RTSI <0... 7>. In addition, the NI PCI-6220 has six DMA channels, six of which can be used for digital input, digital output, analog input, counter/time 0, and counter/timer 1. The recommended warm-up time for this device is 15 minutes and should be calibrated at least once a year. The recommended operating temperature range is 0 ºC to 55 ºC.
