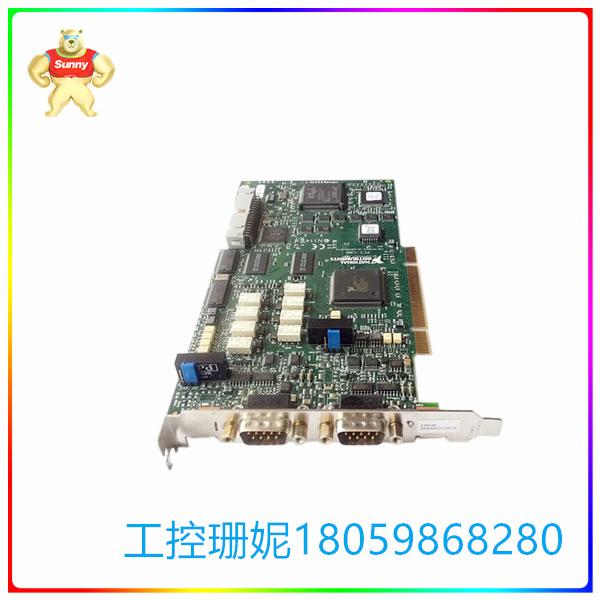

☆型号：778782-02 高性能CAN通讯卡 总线载荷接收能力
【产品详情】
NI PCI-CAN/XS2 2系列2端口, 软件可选CAN接口， 用于PCI
可在软件中选择高速、低速或单线收发器
总线载荷接收能力时速率可达1 Mbit/s
NI-CAN软件用于Windows Vista/XP/2000/Me/9x/NT
Philips SJA1000 CAN控制器和ISO 11898物理层
硬件定时用于准确的时间标记和同步
这PCI-CAN/XS2是软件可选的CAN接口设备开发人国家文书。的零件号PCI-CAN/XS2 CAN接口设备是778782-02。这PCI-CAN/XS2具有不同类型的收发器，包括高速和低速收发器。此功能使PCI-CAN/XS2兼容高速和低速CAN设备。这PCI-CAN/XS2也可以与单线can设备接口。该型号上的飞利浦SJA1000 CAN控制器提供了高级功能。它支持不同的过滤模式，包括自接收和只听。该设备还具有触发和同步功能，这使得该型号可以轻松地与不同的PCI设备同步。
这PCI-CAN/XS2CAN接口设备具有双端口。这些连接器是9针公D-SUB连接器。每个通道上安装一个连接器。这PCI-CAN/XS2配有三个收发器:TJA1041、TJA1054A和AU5790。通过软件选择所需的收发器。这PCI-CAN/XS2还提供使用外部收发器的选项。软件可以绕过已安装的收发器，选择外部模式(EXT)。该型号的最大传输速率为1000 kb/秒。典型电流高达900 mA。器件的I/O通道在+5 VDC下工作。
☆型号：778782-02 高性能CAN通讯卡 总线载荷接收能力
【英文介绍】
NI PCI-CAN/XS2 2 Series 2 ports, software optional CAN interface for PCI
High speed, low speed or single wire transceiver can be selected in the software
The rate of bus load receiving capacity is up to 1 Mbit/s
NI-CAN software is used for Windows Vista/XP/2000/Me/9x/NT
Philips SJA1000 CAN controller and ISO 11898 physical layer
Hardware timing is used for accurate time marking and synchronization
This PCI-CAN/XS2 is the software optional CAN interface device developer's national instrument. The part number of the PCI-CAN/XS2 CAN interface device is 778782-02. This PCI-CAN/XS2 has different types of transceivers, including high-speed and low-speed transceivers. This feature makes PCI-CAN/XS2 compatible with high - and low-speed CAN devices. This PCI-CAN/XS2 can also interface with single-wire CAN devices. The Philips SJA1000 CAN controller on this model offers advanced features. It supports different filtering modes, including self receive and listen only. The device also has trigger and sync capabilities, which allows the model to easily sync with different PCI devices.
This PCI-CAN/XS2CAN interface device has dual ports. These connectors are 9-pin male D-SUB connectors. Install a connector on each channel. The PCI-CAN/XS2 comes with three transceivers :TJA1041, TJA1054A, and AU5790. Select the desired transceiver through the software. This PCI-CAN/XS2 also offers the option of using an external transceiver. The software can bypass the installed transceiver and select external mode (EXT). The maximum transfer rate of this model is 1000 kb/ s. Typical currents up to 900 mA. The I/O channel of the device operates at +5 VDC.
