☆型号:PCIE-6363 多功能I/O设备 高速 多功能 I/ O 设备
【产品详情】

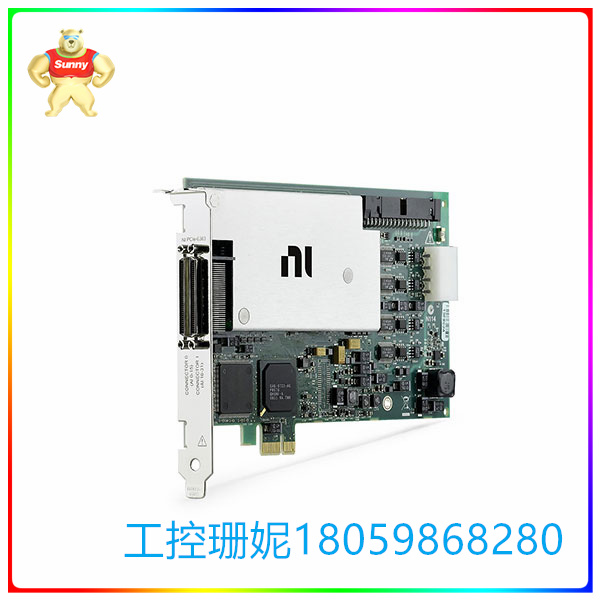

National Instruments PCIe-6363多功能I/O设备
PCIe-6363 是 NI 设计 的 高速 多功能 I/ O 设备。PCIe-6363器件的部件号为781051-01。该模型是一种高速DAQ,提供高带宽和精确测量。该器件集成了模拟和数字通道和计数器。该器件采用高级定时技术。PCIe-6363中安装了NI-STC3芯片组,用于控制触发和定时。PCIe-6363 的一个特点是自校准;校准间隔为两年。
PCIe-6363多功能I/O设备具有32个16位模拟通道。这些通道可用作 16 个差分通道。此设备不提供同步采样。PCIe-6363的最大采样率为2 MS/s。输入通道支持的电压范围为+0.1 V至+10V。输入通道的阻抗为>10 GΩ。输入通道的绝对精度为1660 μV。
此设备上有四个输出通道。最大更新速率取决于同时更新的通道数。1 个通道的最高更新速率为 2.86 MS/s,但当 4 个通道同时更新时,更新速率降至 1.25 MS/s。PCIe-6363的输出电压选项为+5V和+10 V。PCIe-6363的模拟通道是直流耦合的。PCIe-6363还具有用于输入和输出通道的FIFO缓冲器。
PCIe-6363多功能I/O设备还具有48个数字I/O通道。这些通道可以编程。数字通道具有高达 +20 V 的过压保护。PCIe-6363 中还新增了四个 32 位计数器。计数器的FIFO缓冲区可以保存127个样本。
☆型号:PCIE-6363 多功能I/O设备 高速 多功能 I/ O 设备
【英文介绍】
National Instruments PCI-6363 Multi-function I/O device
The PCI-6363 is a high-speed multi-function I/ O device designed by NI. The part number of a PCI-6363 device is 781051-01. The model is a high-speed DAQ that provides high bandwidth and accurate measurements. The device integrates analog and digital channels and counters. The device uses advanced timing technology. The NI-STC3 chipset is installed in PCI-6363 to control triggering and timing. One of the features of PCI-6363 is self-calibration; The calibration interval is two years.
The PCI-6363 multi-function I/O device features 32 16-bit analog channels. These channels can be used as 16 differential channels. This device does not provide synchronous sampling. The maximum sampling rate of PCI-6363 is 2 MS/s. Input channels support voltage ranges from + 0.1V to +10V. The impedance of the input channel is >10 GΩ. The absolute accuracy of the input channel is 1660 μV.
There are four output channels on this device. The maximum update rate depends on the number of channels that are updated simultaneously. The maximum update rate for 1 channel is 2.86 MS/s, but when 4 channels are updated simultaneously, the update rate drops to 1.25 MS/s. The output voltage options for PCI-6363 are +5V and +10 V. The PCI-6363 analog channel is DC coupled. The PCI-6363 also has a FIFO buffer for input and output channels.
The PCI-6363 multi-function I/O device also features 48 digital I/O channels. These channels can be programmed. The digital channel has overvoltage protection up to +20 V. There are also four new 32-bit counters in PCI-6363. The FIFO buffer of the counter can hold 127 samples.
